21.5″ Windows Industrial Panel PC for Automation and Control
The ND215SHG19201080-A01 is a 21.5-inch Windows industrial panel PC designed for factory automation, machine control, process monitoring, and industrial HMI applications. It features a 1920×1080 IPS display, 10-point capacitive touchscreen, Intel Core i7-7567U processor, 4 GB DDR3 RAM, 64 GB SSD, and industrial interfaces including RS-232, RS-485, USB, Gigabit Ethernet, HDMI, and VGA.

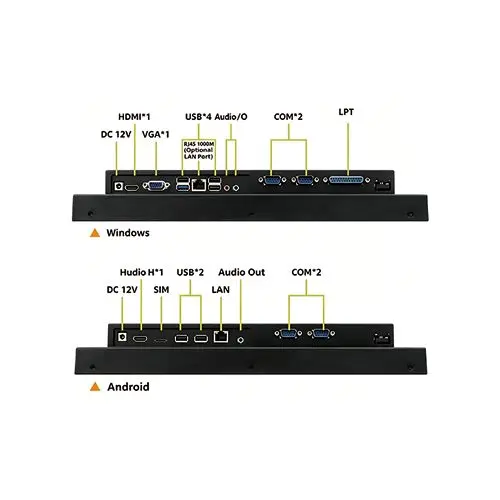

Interface Definition
| 21.5″ Windows Industrial Panel PC Technical Specifications | ||
|---|---|---|
| Part Number | ND215SHG19201080-A01 | |
| Module | Index | Parameters |
| Display | LCD display | 21.5″ IPS TFT |
| Resolution | 1920×1080 | |
| Brightness | 300 cd/m² | |
| Contrast | 500: 1 | |
| Backlight | LED | |
| Backlight life | ＞50,000 hours | |
| Colors | 16.7M | |
| Viewing Angle | 80°/ 80°/ 80°/ 80° | |
| Touch | Touch Screen | 10-point capacitive |
| Touch Structure | G+G sensor | |
| Memory | Flash | 64 GB SSD |
| RAM | 4 GB DDR3 | |
| CPU | Intel Core i7-7567U, Dual-Core, up to 4.0 GHz | |
| Communication ports | USB Host | USB 2.0*4 |
| RS-232 | COM1 | |
| RS-485 | COM2：2W/4W； | |
| Ethernet | RJ45, 1000Mbps self-adaption | |
| Video Output | HDMI, VGA | |
| RTC | Built-in real-time clock | |
| Power | Input Voltage | 12 V DC |
| Power Consumption | To be confirmed | |
| Power Isolation | Built-in | |
| Withstand voltage | 500VAC for one minute | |
| Insulation Impedance | 50MΩ@500VDC | |
| Structure | Dimension | 554*355*59 mm |
| Packed Dimension | ||
| Hole | 537*336 mm | |
| Mounting | Panel Mount | |
| Weight | About Kg with inner box | |
| Shell Material | Metal | |
| Mechanical Vibration | 10 to 25Hz（X axis、Y axis、Z axis 2G 30 minutes） | |
| Operating Environment | IP Grade | Front IP65; Rear IP20 |
| Temperature | −10°C to +60°C | |
| Humidity | 10%-90% (No condensation) | |
| Storage Temperature | -20℃~ +70℃ | |
| Certification | CE | Comply with CE standards |
| Software | Windows; Linux optional | |
Custom Your Display
LCD Hardware Customization
Our 21.5-inch industrial HMI touchscreen offer complete hardware and software customization, enabling smooth integration and dependable operation. With flexible setup options and development support, they streamline project timelines and allow you to launch innovative, high-feature products faster.
LCD Interface & Communication Custom
Our 21.5-inch industrial HMI touchscreen offer configurable interfaces such as USB, HDMI, VGA, Gigabit Ethernet, RS-232, and RS-485, providing flexible protocol choices that ensure dependable connectivity, consistent performance, and easy incorporation into your LCD systems.
LCD Software Customization
For 21.5-inch industrial HMI touchscreen, we deliver customized UI solutions featuring unique icons, individualized themes, and multi-language font support. Integrated storage, command sets, and development resources further simplify workflows and accelerate time-to-market for your products.
LCD Industrial Grade Adaptation
Our 21.5-inch industrial HMI touchscreen is built to withstand harsh industrial and automotive environments, operating reliably across −10°C to +60°C. With Front IP65 and Rear IP20 protection, strengthened EMC shielding, and a robust vibration-resistant structure, they deliver consistent, long-lasting performance under the most challenging conditions.
