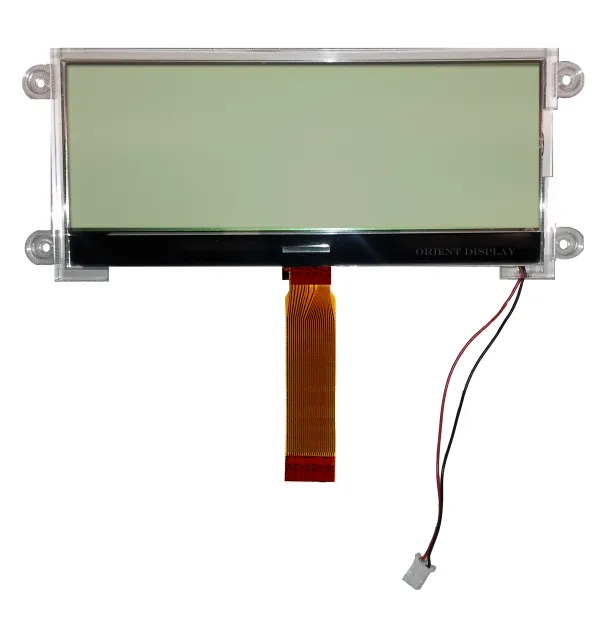

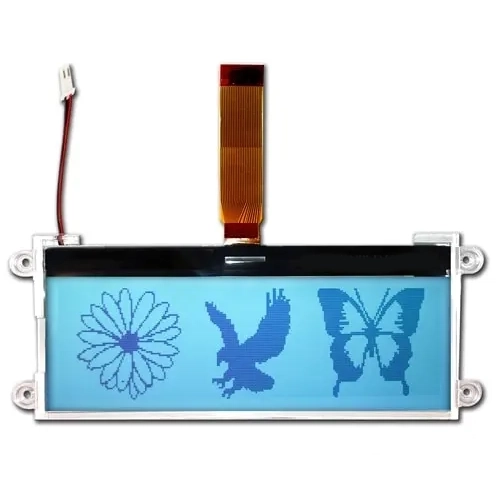

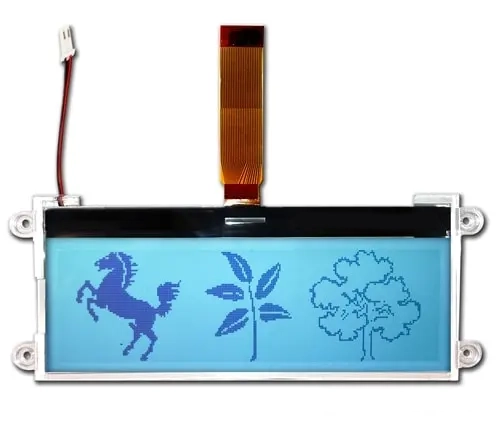

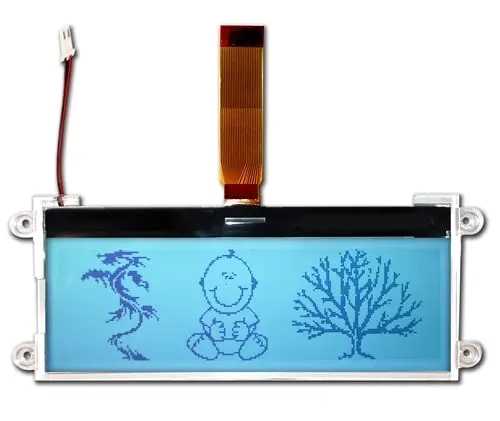

NDTG24064001 | 4.3 inch Graphic LCD 240×64 COG Module 240*64 LCD FSTN White Backlight SPI & Parallel Interface for Arduino
The NDTG24064001 4.3 inch 240×64 COG LCD module is engineered for projects that demand sharp visuals, stable performance, and compact design. Built with an FSTN positive transflective display, this lcd 24064 provides excellent readability under both indoor and outdoor lighting.
Powered by the UC1608 controller (or equivalent), the module supports SPI and 6800/8080 8-bit parallel interfaces, ensuring seamless integration with Arduino, Raspberry Pi, and other development boards. The white LED backlight enhances contrast, while the wide operating temperature range (-20°C to 70°C) ensures reliable performance in industrial and consumer environments.
Featuring a 111.0 × 37.0 mm active area, this 4.3 inch 240×64 COG LCD is widely used in industrial control panels, instrumentation, handheld terminals, and embedded applications. Its 24-pin connector and flexible voltage options (3.3V / 5V) make it easy to integrate into custom designs.
General Specifications
| Part No.: | NDTG24064001 |
| Display Format: | 240 x 64 pixels |
| Display Type: | FSTN, Positive |
| Display Mode: | Transflective |
| Controller IC: | UC1608 or equivalent |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 134.6 x 55.1 x 5.8mm |
| Active Area: | 111.0 x 37.0mm |
| Supply Voltage: | 5V, 3.3V |
| Backlight: | White |
| Interface: | SPI or 6800/8080 8-bit parallel |
| Connection Type: | 24 pin Connector |
| Compatibility: | Arduino, Rasberry Pi and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Pin Defenition
| No. | Symbol | Function | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NC | No connect | |||||||
| 2 | VB1- | LCD Bias Voltages. | |||||||
| 3 | VB1+ | ||||||||
| 4 | VB0- | ||||||||
| 5 | VB0+ | ||||||||
| 6 | VLCD | Power Supply for LCD | |||||||
| 7 | VBAIS | This is the reference voltage to generate the actual SEG driving voltage | |||||||
| 8 | VSS | Ground | |||||||
| 9 | VDD | Power supply(+3.0V) | |||||||
| 10~17 | DB7~DB0 | Bi-directional bus for both serial and parallel host interfaces | |||||||
| BM=1X | BM=0X | BM=01 | BM=00 | ||||||
| D0 D1 D2 D3 D4 D5 D6 D7 | D0 D1 D2 D3 D4 D5 D6 D7 | D0/D4 D1/D5 D2/D6 D3/D7 0 | SCK - SDA S9 1 | SCK SDA S8/s8uc 1 | |||||
| Connect the unused pins to VDD OR VSS | |||||||||
| 18 | WR1 | WR[1:0]controls the read/write operation of the host interface. | |||||||
| 19 | WRO | ||||||||
| 20 | CD | Select Command or Display Data for read/write operation. ”L”:Command”H”:Display data | |||||||
| 21 | RST | Reset input pin | |||||||
| 22 | CS | Chip Select. | |||||||
| 23 | BM0 | The interface bus mode is determined by MB[1:0]and D[7:6]by the following relationship. | |||||||
| 24 | BM1 | ||||||||
| BM[1:0] | D[7:6] | MODE | |||||||
| 11 | Data | 6800/8bit | |||||||
| 10 | Data | 8080/8bit | |||||||
| 01 | 0x | 6800/4bit | |||||||
| 00 | 0x | 8080/4bit | |||||||
| 01 | 10 | 3-wire SPI w/9-bit token. (s9:conventional) | |||||||
| 00 | 10 | 4-wire SPI w/8-bit token. (s8:conventional) | |||||||
| 00 | 11 | 3-or 4-wire SPI w/8-bit token. (s8ul) | |||||||

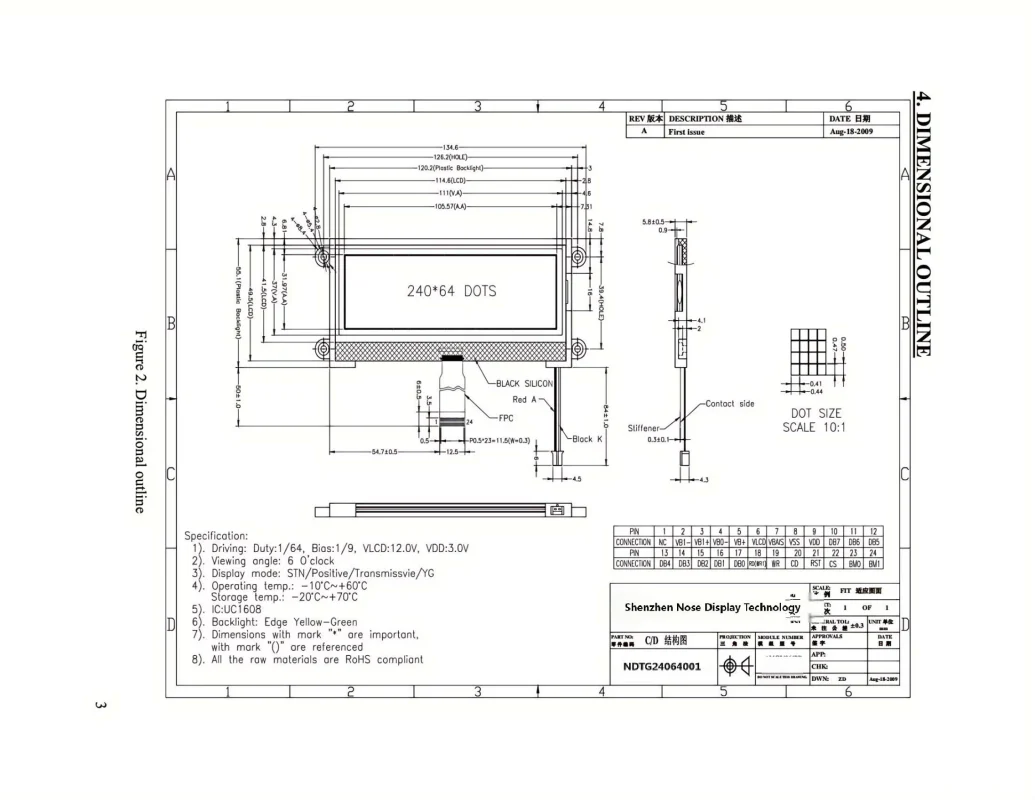

Display Drawing
Custom 4.3'' Graphic Display
