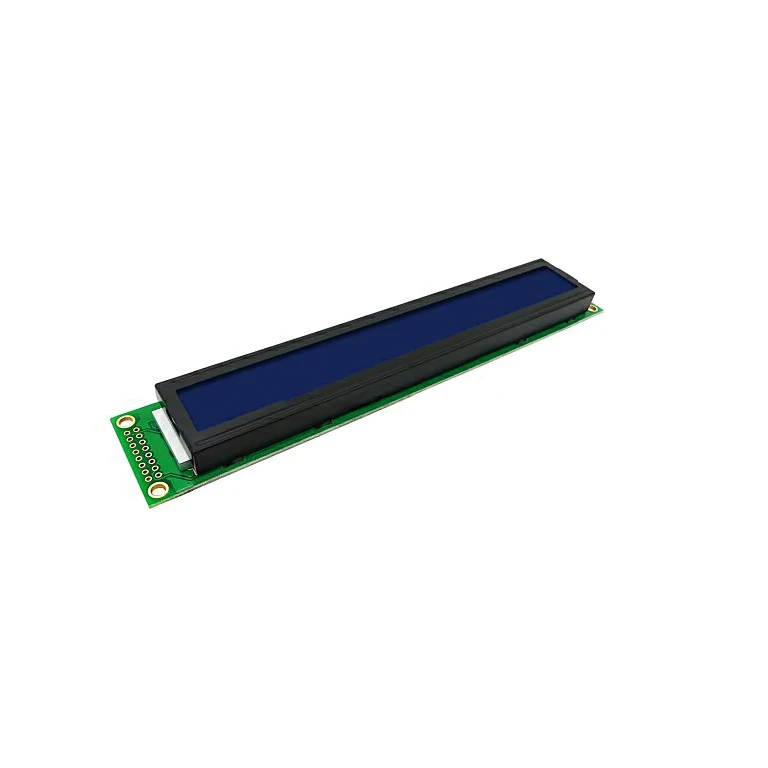

NDTC4002001 | 40x2 LCD Arduino i2C Character 4002 LCD Display STN LCD Blue White Backlight

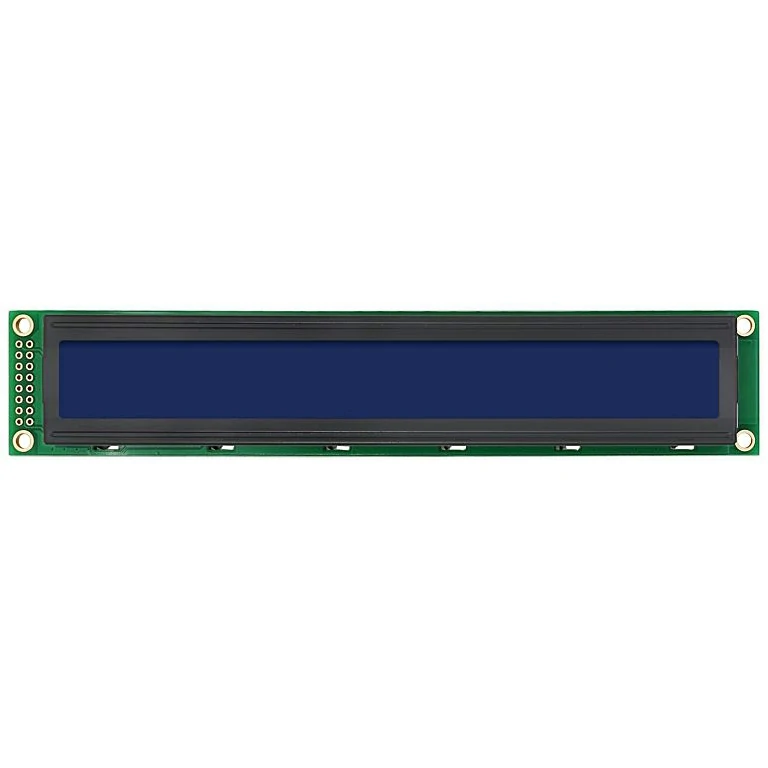

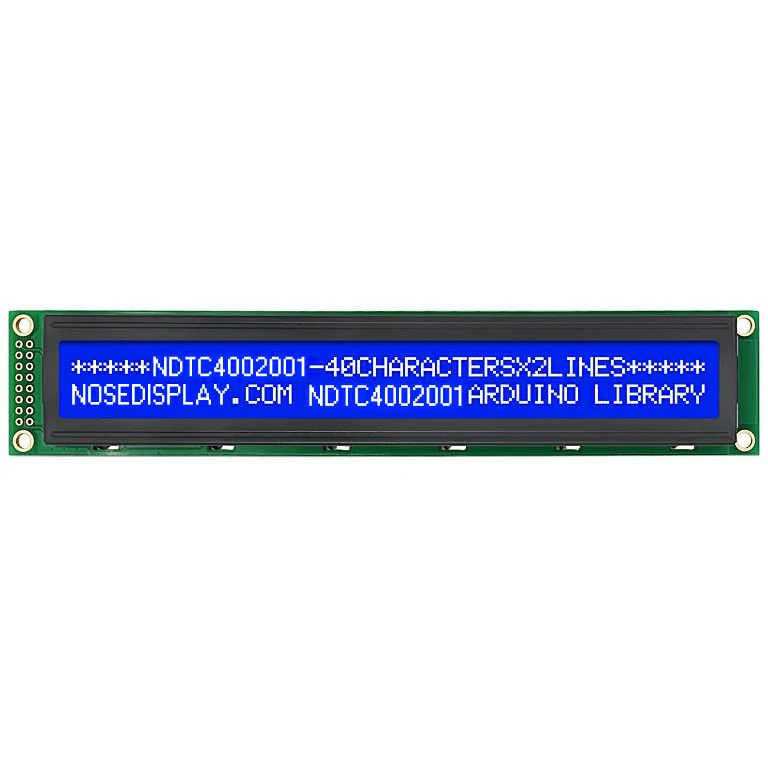

The 40×2 LCD display is a high-capacity character module that shows 2 lines with 40 characters each, making it an excellent solution for applications that require large text output and detailed information display. Often referred to as a 2×40 LCD display, this module provides 80 character positions, ideal for industrial control panels, measurement equipment, and data monitoring systems.
Built with STN-LCD Blue technology and a transflective mode, the 40×2 module offers crisp readability under both strong light and dim environments. With a wide viewing area of 153.0 × 17.0 mm and a durable outline size of 182.0 × 33.5 × 13.6 mm, it balances large text display with a slim design.

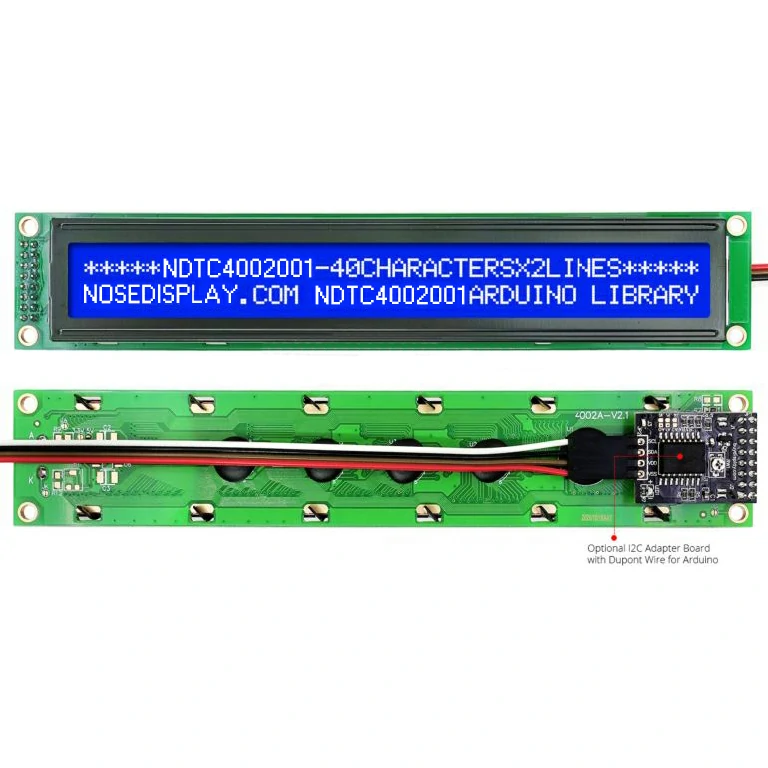

Supporting both 3.3V and 5V operation, the 40x 2 display can be easily integrated into embedded systems using the standard 6800 4/8-bit parallel interface and 16-pin connection. Compatible with Arduino and similar development boards, it allows makers and engineers to build projects quickly and efficiently.
Whether for professional equipment or DIY electronics, this 40×2 LCD display delivers stable performance, long-term durability, and expanded text capacity for advanced applications.
General Specifications
| Display Format: | 40×2 Characters |
| Display Type: | STN-LCD Blue |
| Display Mode: | Transflective |
| Controller IC: | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 182.00(W)x33.5(H)x13.6(T)mm |
| Viewing Area: | 153.00×17.00mm |
| Supply Voltage: | 3.3V, 5V |
| Backlight: | White Color |
| Interface: | 6800 4/8-bit parallel |
| Connection Type: | 16 Pin |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |

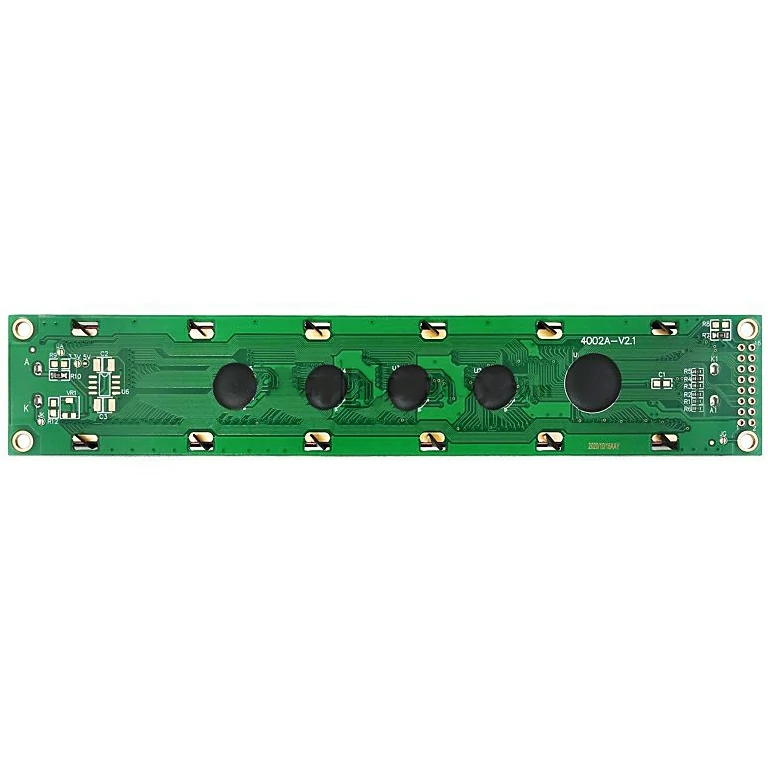

Pin Defenition
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |

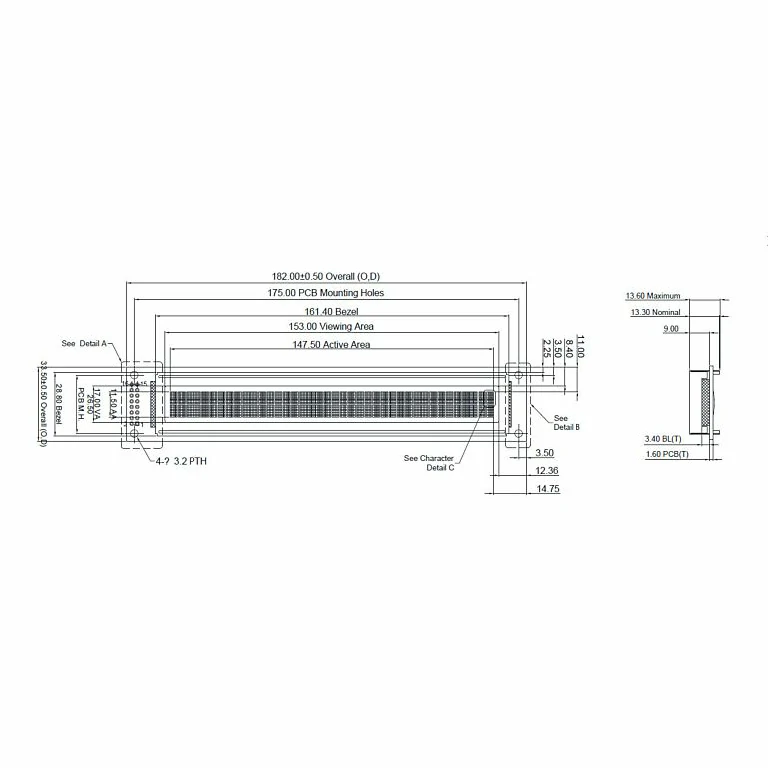

Display Drawing
Custom 40x2 Character Display Solutions
We provide customized display solutions, offering flexible sizes, interfaces, and designs, including 40x2 character display options, to precisely meet the unique requirements of your product application.
Cable Customization
Adjust the length, position, and pinout of your cables for seamless connections. Perfectly designed for 40×2 character LCDs with 6800 parallel interface, compatible with Arduino and similar boards.
Connector Custom
Modify connectors to suit the 40×2 character STN-LCD blue display. Our engineers can handle soldering for pin headers, right-angle headers, or any other connectors, ensuring seamless integration with your project.
Interface Custom
Choose from a range of interface options, including HDMI, USB, SPI, and more, to match your 40×2 character LCD display. Our experts can help you select the best fit for your project.
Tailored PCB Design
Choose from various options like shape, size, pinout, and component layout to make your PCB a perfect fit for your 40×2 character display application.
