NDTG12864003 | 128x64 LCD Module Arduino 12864 Blue Graphic Display White Backlight Parallel Interface STN LCD

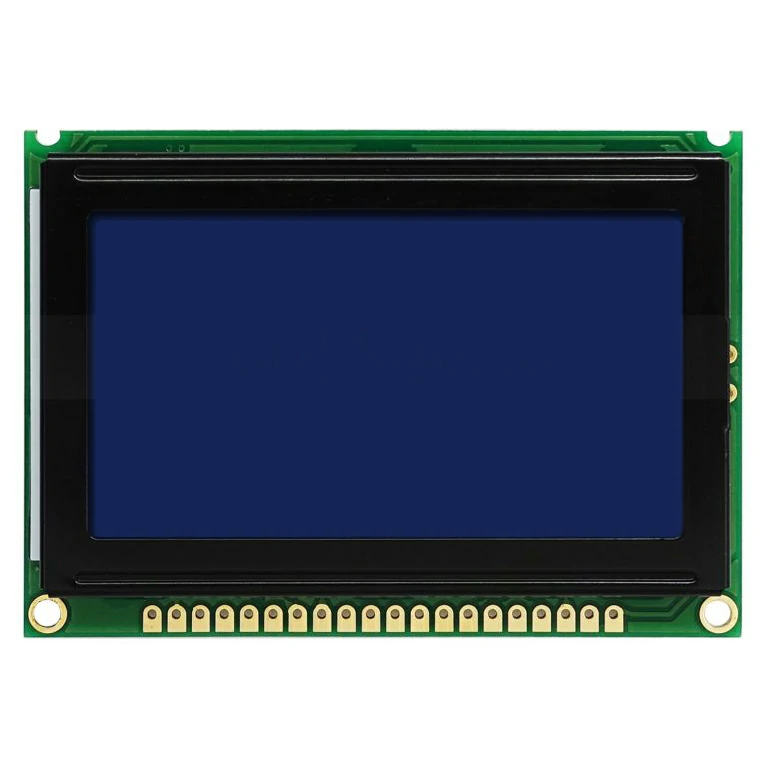

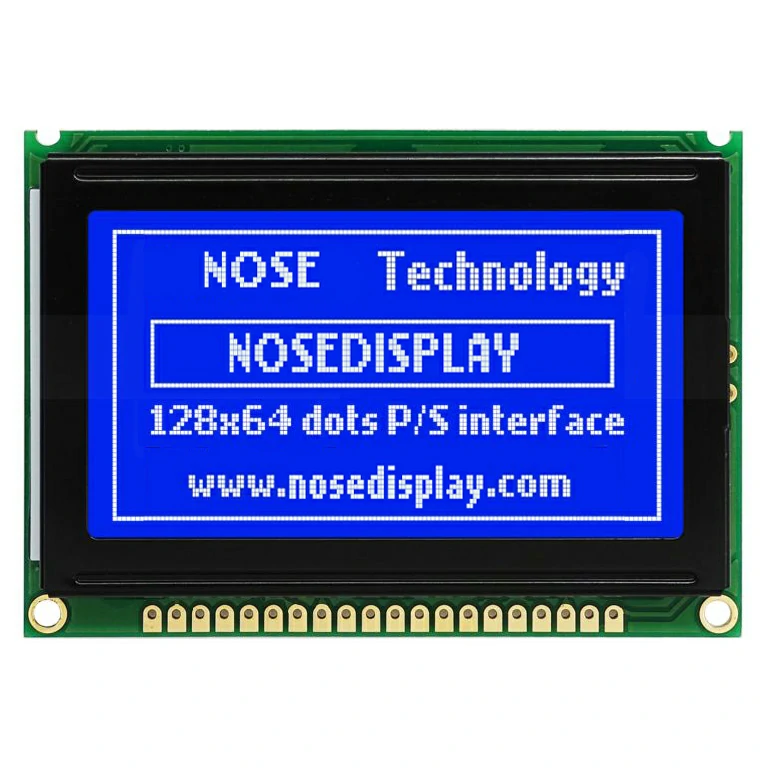

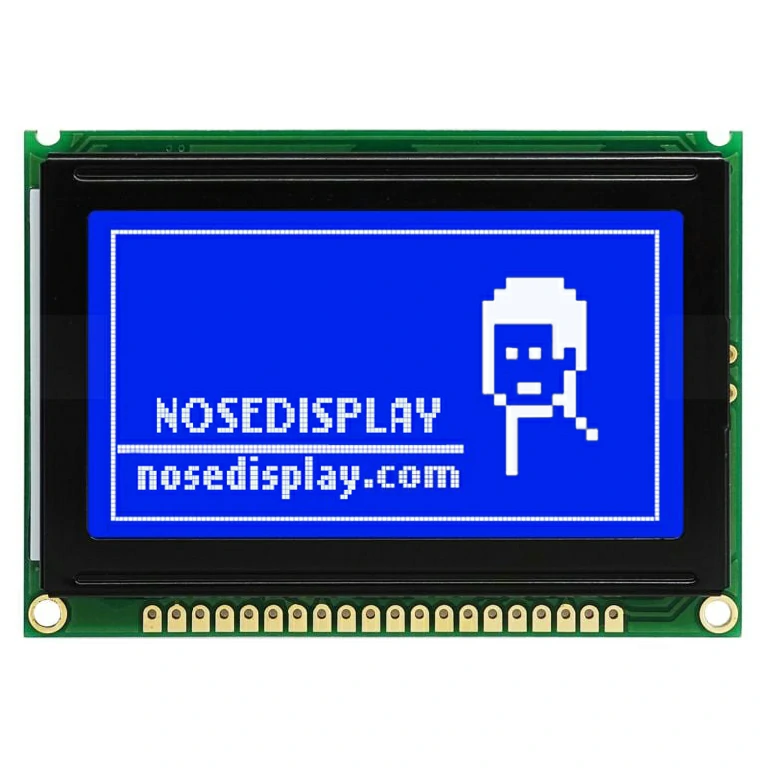

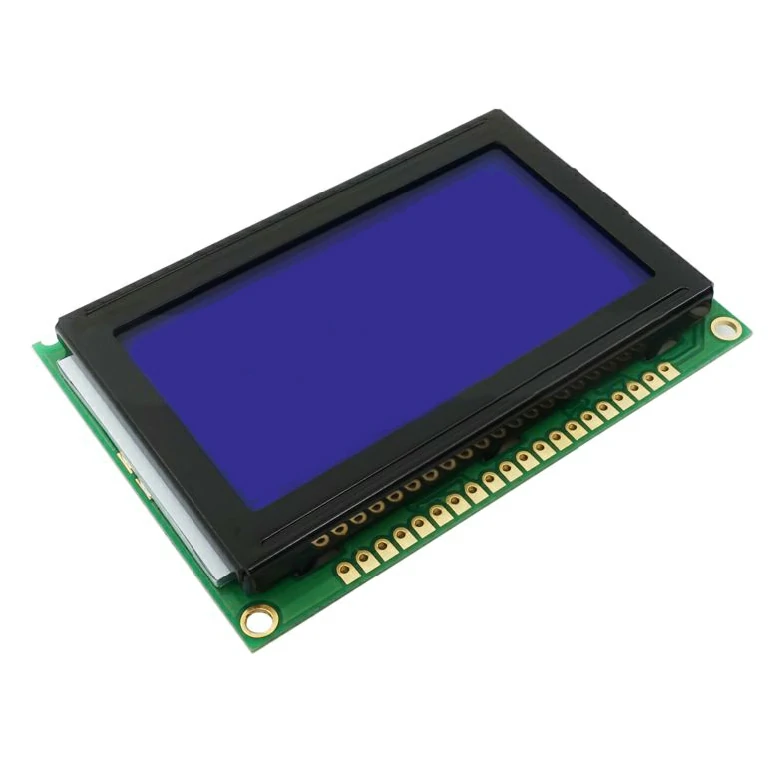

The 12864 LCD display is a reliable 128 × 64 monochrome graphic module designed for a wide range of embedded and industrial applications. Built with STN-LCD Blue Positive technology and a transflective display mode, it delivers crisp visuals, stable performance, and excellent readability under various lighting conditions.

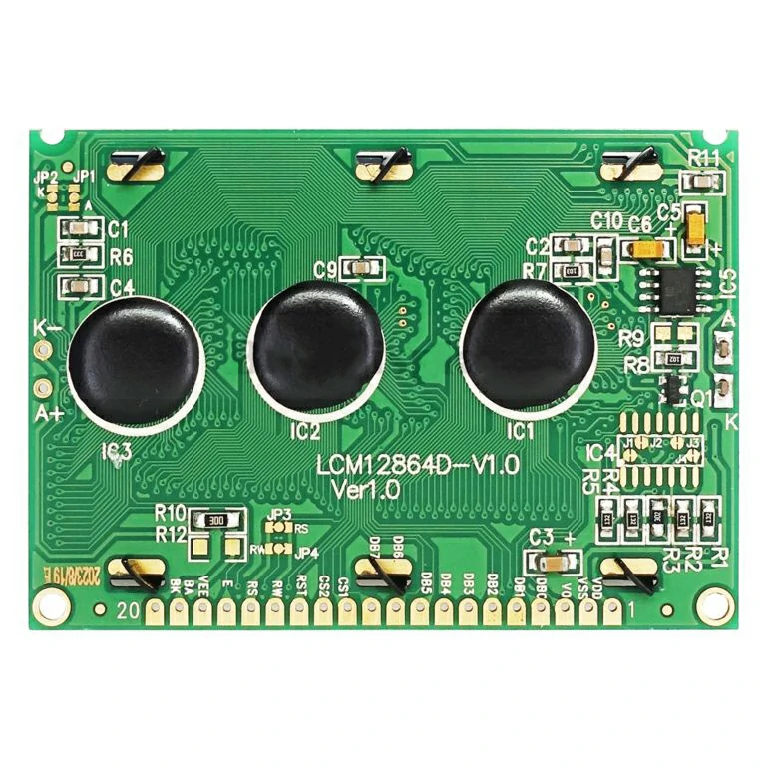

Powered by the SBN0064 controller IC, this LCD 128×64 supports a 6800 8-bit parallel interface with a 20-pin connection (optional with pin header connection), making it flexible for integration into different designs. Operating at 3.3V or 5V, and featuring a white LED backlight, it ensures clear display quality even in challenging environments.
With its 75.0 × 52.7 × 8.9 mm outline dimension and 60.0 × 32.6 mm active area, the display provides a balanced design between compact size and large graphical output. Fully compatible with Arduino, Raspberry Pi, and other MCUs, this LCD12864 Arduino-ready module is widely used in handheld devices, instruments, and OEM systems.
For makers and engineers, the graphic LCD 128×64 Arduino module offers durability, flexibility, and reliable text and image rendering, making it a preferred choice for both DIY projects and professional applications.
General Specifications
| Part No.: | NDTG12864003 |
| Display Format: | 128 x 64 pixels |
| Display Type: | STN-LCD Blue, Positive |
| Display Mode: | Transflective |
| Controller IC: | SBN0064 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 75.00(W)x52.70(H)x8.9(T)mm |
| Active Area: | 60.00×32.60mm |
| Supply Voltage: | 3.3V, 5V |
| Backlight: | White |
| Interface: | 6800 8-bit Parallel |
| Connection Type: | 20 pin |
| Compatibility: | Arduino, Rasberry Pi and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Pin Defenition
| Pin No. | Symbol | Function Description |
|---|---|---|
| 1 | VDD | Power supply |
| 2 | VSS | Ground |
| 3 | VO | Operting Voltage for LCD (Variable） |
| 4 | D0~D7 | Data Bus Line |
| 5 | CS1 | Chip selection for IC1, active "H" |
| 6 | CS2 | Chip selection for IC2, active "H" |
| 7-14 | RST | Reset signal, active "L" |
| 15 | R/W | H: read L: write |
| 16 | RS | H: data L : Instruction code |
| 17 | E | Enable signal |
| 18 | VOUT | Output voltage for LCD driving |
| 19 | LEDA | Positive Power for LED backlight |
| 20 | LEDK | Negative Power for LED backlight |

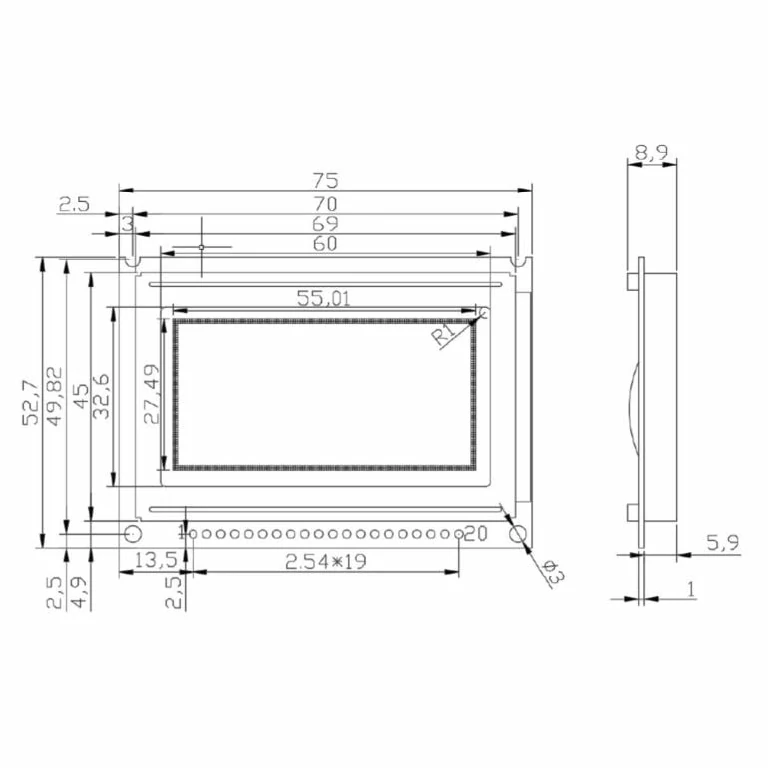

Display Drawing
Custom Graphic Display
We offer full customization ofGraphic display modules, including resolution, brightness, interface, and touch options. Our service covers PCB design, connector modification, and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
Cable Customization
Custom Cable Design — Modify length, pin order, and connector placement to fit your setup. Built for secure and efficient connections.
Connector Custom
Adapt display connectors to your needs with pin headers, right-angle headers, or boxed types. Our team do precise soldering for perfect fit.
Interface Custom
Select interfaces from HDMI, USB, SPI, VGA and more. We’ll help you integrate the right interface for your design.
Tailored PCB Design
Modify the shape, dimensions, pinout, and component layout of the PCB to ensure a perfect fit and seamless integration with your system.
