NDTP430800480 | 4.3-Inch Raspberry Pi Embedded Display IPS Capacitive Touchscreen with 800×480 Resolution DSI MIPI Interface Portable Industrial HMI Screen

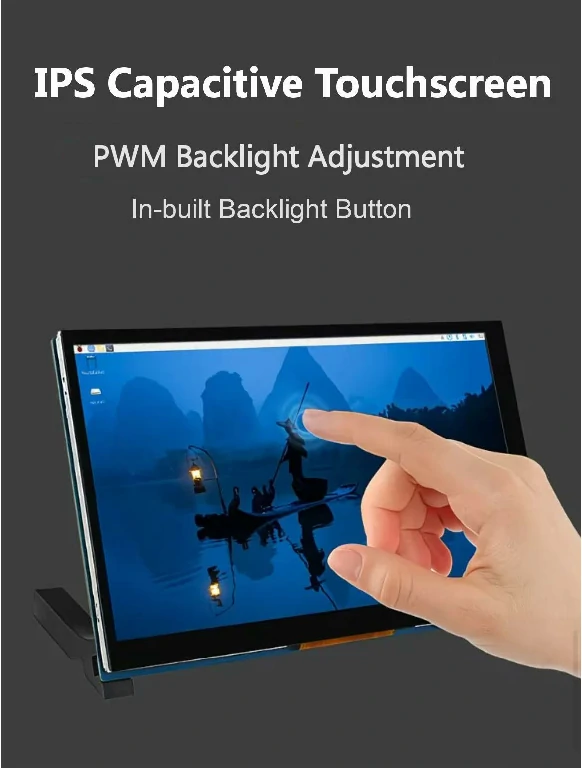

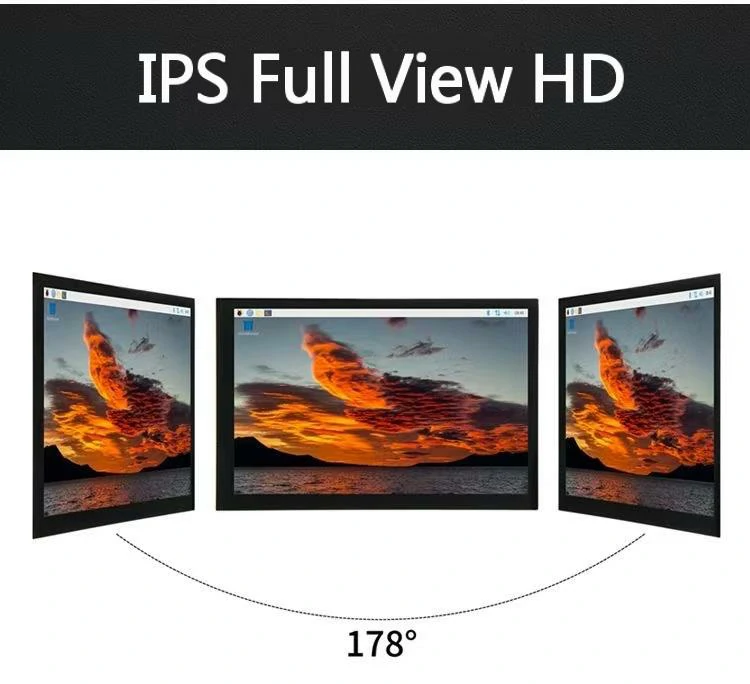

The NDTP430800480 is a 4.3-inch Raspberry Pi embedded display, designed as a compact yet powerful industrial HMI screen for professional and embedded projects. Featuring a TFT-IPS transmissive panel with 800×480 resolution and 300 nits brightness, it delivers sharp and clear visuals with wide viewing angles. Its capacitive touchscreen enables precise and smooth user interaction, making it ideal for portable monitors, kiosks, and control panels.

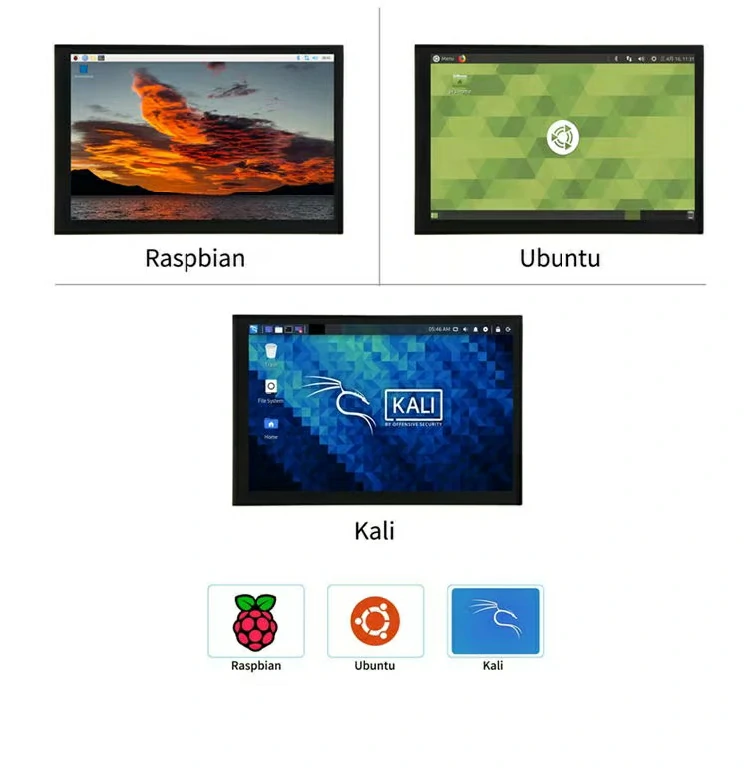

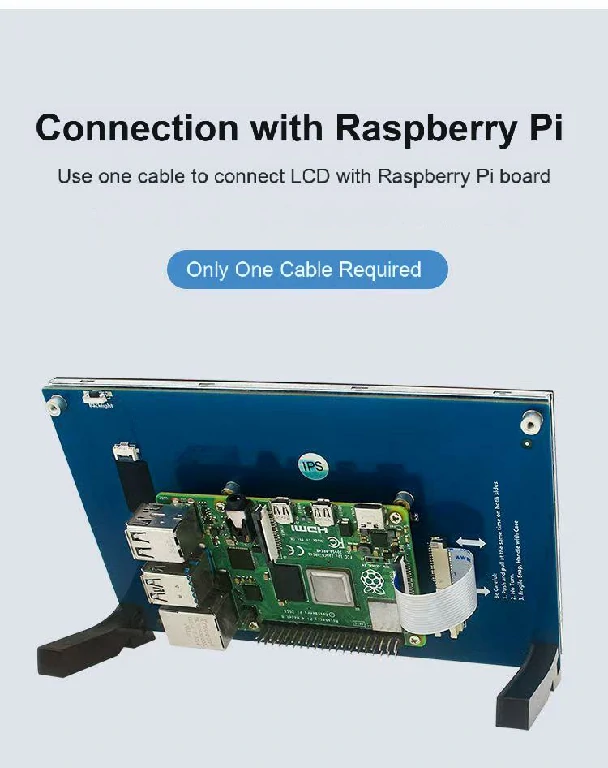

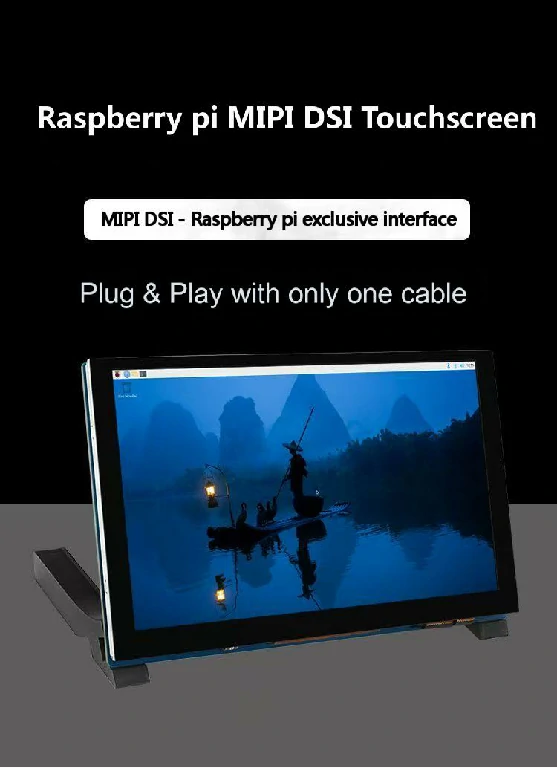

With a DSI MIPI interface and pin connector, this LCD module offers direct compatibility with the latest Raspberry Pi 5 main board. Optimized to support Raspberry Pi OS 4 & 5, it ensures plug-and-play integration without additional drivers, greatly reducing development time.
Compact in design (106 × 68 mm) and powered by 5V, the NDTP430800480 is a versatile MIPI display for Raspberry Pi developers. It is especially suitable for embedded applications, industrial automation, and portable monitoring devices that demand reliable performance within a wide operating temperature range (-10°C ~ 60°C).
Applications
Industrial automation HMI panels
Raspberry Pi embedded displays for prototyping and education
Portable Raspberry Pi monitors for on-the-go development
IoT devices and smart controllers with integrated touch interfaces
Automotive and EV dashboards requiring compact MIPI displays
Specifications
| Part No.: | NDTP430800480 |
| Size: | 4.3 inch |
| Display Format: | 800×480 Resolution |
| Display Type: | TFT- IPS Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes |
| Structure | Raspberry Pi DSI MIPI Capacitive Touchscreen |
| Outline Dimension: | 106.00 (W) X 68.00 (H) mm |
| Supply Voltage: | 5V |
| Luminance | 300 nits |
| Interface: | 4B/3B/3B+/5 |
| Connection Type: | pin connector |
| Compatibility: | Raspberry Pi |
| Operating Temperature: | -10°C ~ 60°C |
| Storage Temperature: | -20°C ~ 70°C |
| Mount Frame: | Yes |
Display Drawing
Custom Your Display
We offer fully personalized 4.3-inch Raspberry Pi displays, designed across hardware and software. Our bespoke solutions ensure seamless integration, faster development, and reliable operation, empowering you to launch distinctive, high-performance products with ease.
LCD Hardware Customization
We provide fully tailored 4.3-inch Raspberry Pi displays, allowing you to configure dimensions, resolution, panel type, touch options, brightness, power, and PCB layout—delivering smooth integration and a superior user experience.
LCD Interface & Communication Custom
Our 4.3-inch Raspberry Pi displays can be equipped with configurable UART, CAN, or SPI interfaces, providing flexible protocol support to ensure reliable operation and seamless integration in your LCD projects.
LCD Software Customization
For 4.3-inch Raspberry Pi displays, we design custom user interfaces, icons, themes, and multi-language fonts, while incorporating storage, command libraries, and development tools—helping you accelerate product rollout with unique, feature-rich capabilities.
LCD Industrial Grade Adaptation
For 4.3-inch Raspberry Pi displays, we modify modules to meet industrial and automotive standards (-40°C to 85°C), adding IP65/IP67 protection, improved EMC compliance, and anti-vibration features—ensuring robust and reliable performance even in harsh conditions.
