Product Overview
NoseDisplay’s ND043TSN480272-C01 (previous model reference: ND043THM480272-B01) is a 4.3 inch IPS TFT LCD display with a 480×272 pixel resolution and an SPI interface. Its compact landscape format is suitable for instrument menus, equipment status screens and embedded control panels. The existing specification lists a 40-pin connection and driver IC reference 3047. Review the complete electrical requirements, interface configuration and pin definition against your host board before integration. Confirm touch options and enclosure fit with NoseDisplay, and request model-specific documentation and samples to support the evaluation of this module.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND043TSN480272-C01 |
| Display Size | 4.3 Inch |
| Resolution | 480×272 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 105.40 × 67.10 × 3.0 mm |
| Active Area | 95.04 × 53.856 mm |
| Parameter | Specification |
| Supply Voltage | 2.8–3.3 V |
| Luminance | 500 nits |
| Display Interface | SPI |
| Connection Type | 40-pin connector |
| IC | 3047 |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +85°C |

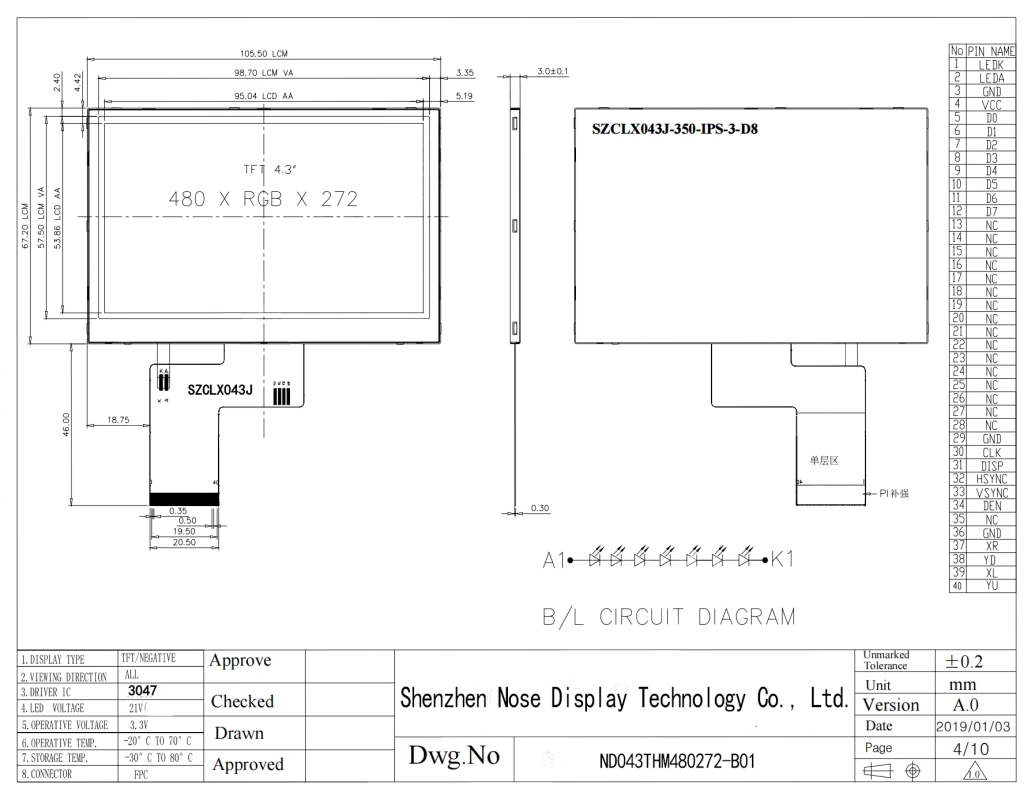

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDK | Backlight Cathode |
| 02 | LEDA | Backlight Anode |
| 03 | GND | Ground |
| 04 | VCC | POWER SUPPLY |
| 05 | D0 | Data Bus |
| 06 | D1 | Data Bus |
| 07 | D2 | Data Bus |
| 08 | D3 | Data Bus |
| 09 | D4 | Data Bus |
| 10 | D5 | Data Bus |
| 11 | D6 | Data Bus |
| 12 | D7 | Data Bus |
| 13 | NC | No Connection |
| 14 | NC | No Connection |
| 15 | NC | No Connection |
| 16 | NC | No Connection |
| 17 | NC | No Connection |
| 18 | NC | No Connection |
| 19 | NC | No Connection |
| 20 | NC | No Connection |
| 21 | NC | No Connection |
| 22 | NC | No Connection |
| 23 | NC | No Connection |
| 24 | NC | No Connection |
| 25 | NC | No Connection |
| 26 | NC | No Connection |
| 27 | NC | No Connection |
| 28 | NC | No Connection |
| 29 | GND | Ground |
| 30 | CLK | Serial Clock |
| 31 | DISP | Display Enable |
| 32 | HSYNC | Horizontal Sync |
| 33 | VSYNC | Vertical Sync |
| 34 | DE | Data Enable |
| 35 | NC | No Connection |
| 36 | GND | Ground |
| 37 | XR | Touch X+ |
| 38 | YD | Touch Y- |
| 39 | XL | Touch X- |
| 40 | YU | Touch Y+ |
