ND238THM38402160A01 | 23.8 Inch IPS LCD Display 3840x2160 EDP High Brightness Industrial Display Wide Temp BOE GV238QUB-N12
ND238THM38402160A01 23.8inch 4K (3840×2160) EDP Interface BOE IPS LCD Display, Transmissive Mode with 600cd/m² High Luminance, 89° Full-View Angle, Compatible with Arduino/ESP32/Raspberry Pi, Ideal for Engineer Selection of Industrial Control, Monitoring & Embedded System Projects.
General Specifications
| Part No.: | ND238THM38402160A01 |
| Size: | 23.8 inch |
| Display Format: | 3840×2160 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| OC Model No.: | GV238QUB-N12 |
| LCD Panel Brand: | BOE |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | 89/89/89/89 (Typ.) |
| Outline Dimension: | 545×323.4×12.5mm |
| Active Area: | 527×296.4mm |
| Supply Voltage: | 9V – 12V |
| Luminance | 600cd/m²（Typ.） |
| Interface: | EDP |
| Connection Type: | 30 pin connector |
| Compatibility: | Arduino, ESP32, Raspberry Pi and similar development boards |
| Operating Temperature: | -0~+50℃ |
| Storage Temperature: | -20~+60℃ |
| Mount Frame: | None |

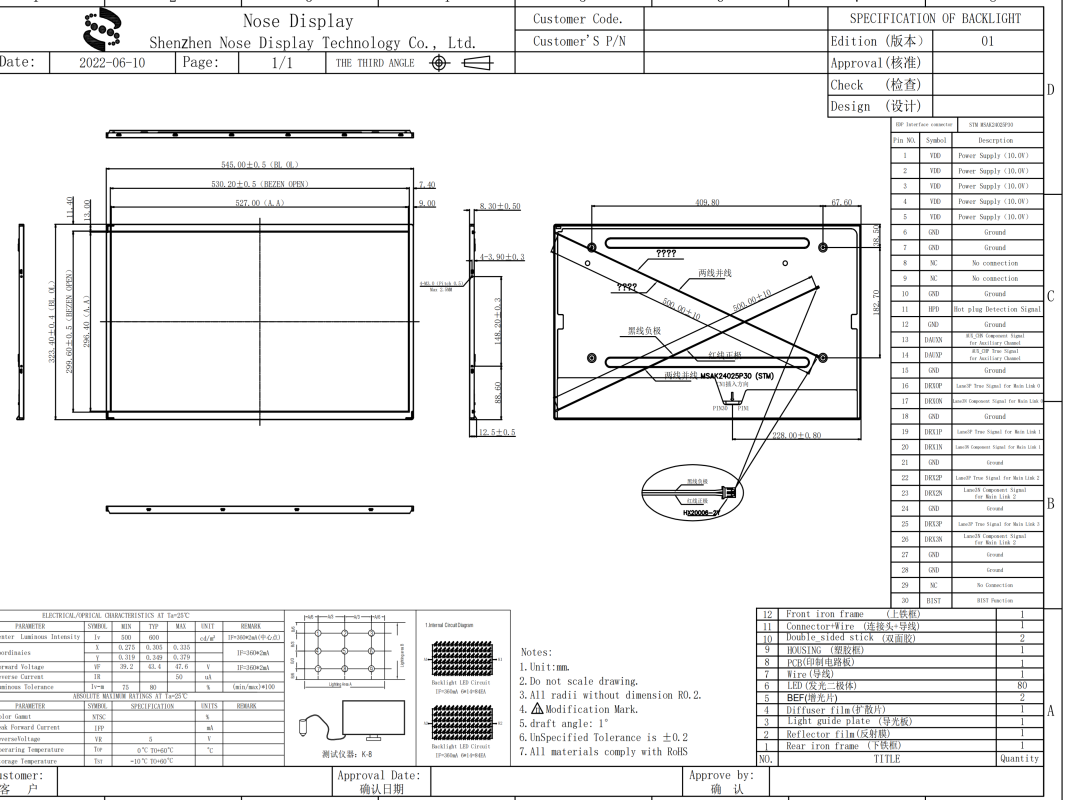

Display Drawing
Interface Definition
| Pin No. | Symbol | Description | I/O |
|---|---|---|---|
| 1 | VDD | Power Supply (10.0V) | |
| 2 | VDD | Power Supply (10.0V) | |
| 3 | VDD | Power Supply (10.0V) | |
| 4 | VDD | Power Supply (10.0V) | |
| 5 | VDD | Power Supply (10.0V) | |
| 6 | GND | Ground | |
| 7 | GND | Ground | |
| 8 | NC | No Connection | |
| 9 | NC | No Connection | |
| 10 | GND | Ground | |
| 11 | HPD | Hot Plug Detection Signal | |
| 12 | GND | Ground | |
| 13 | DAUXN | AUX_CHN Component Signal for Auxiliary Channel | |
| 14 | DAUXP | AUX_CHP True Signal for Auxiliary Channel | |
| 15 | GND | Ground | |
| 16 | DRX0P | Lane3P True Signal for Main Link 0 | |
| 17 | DRX0N | Lane3N Component Signal for Main Link 0 | |
| 18 | GND | Ground | |
| 19 | DRX1P | Lane3P True Signal for Main Link I | |
| 20 | DRX1N | Lane3N Component Signal for Main Link 1 | |
| 21 | GND | Ground | |
| 22 | DRX2P | Lane3P True Signal for Main Link 2 | |
| 23 | DRX2N | Lane3N Component Signal for Main Link 2 | |
| 24 | GND | Ground | |
| 25 | DRX3P | Lane3P True Signal for Main Link 3 | |
| 26 | DRX3N | Lane3N Component Signal for Main Link 3 | |
| 27 | GND | Ground | |
| 28 | GND | Ground | |
| 29 | NC | No Connection | |
| 30 | BIST | BIST Function |
