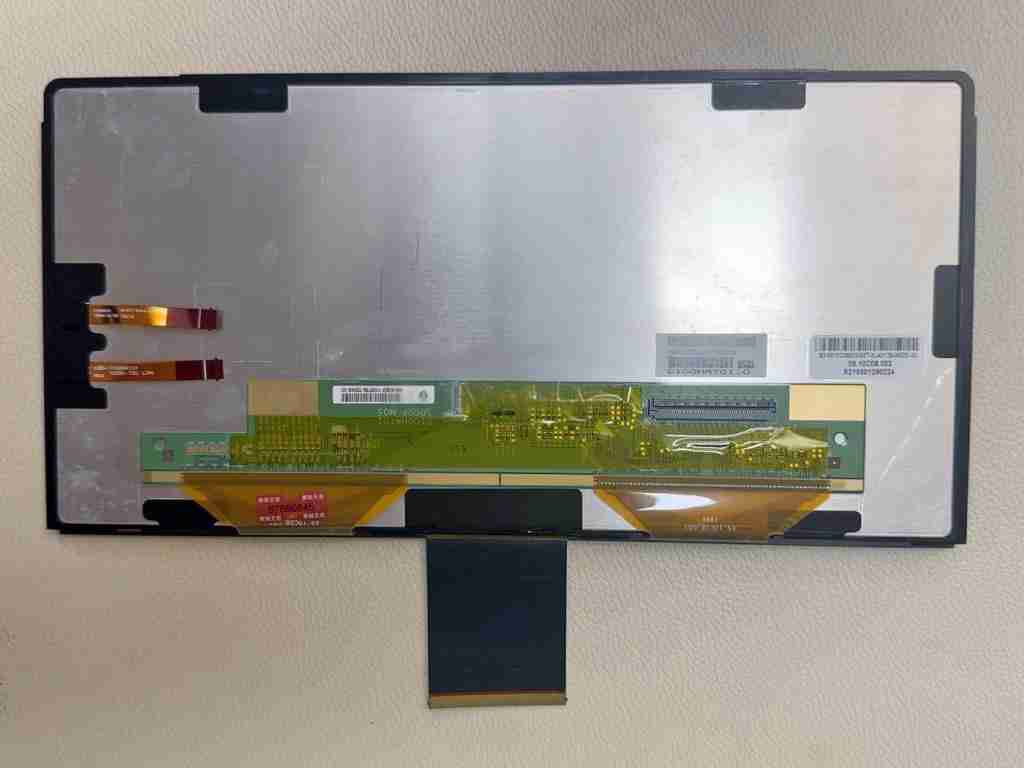

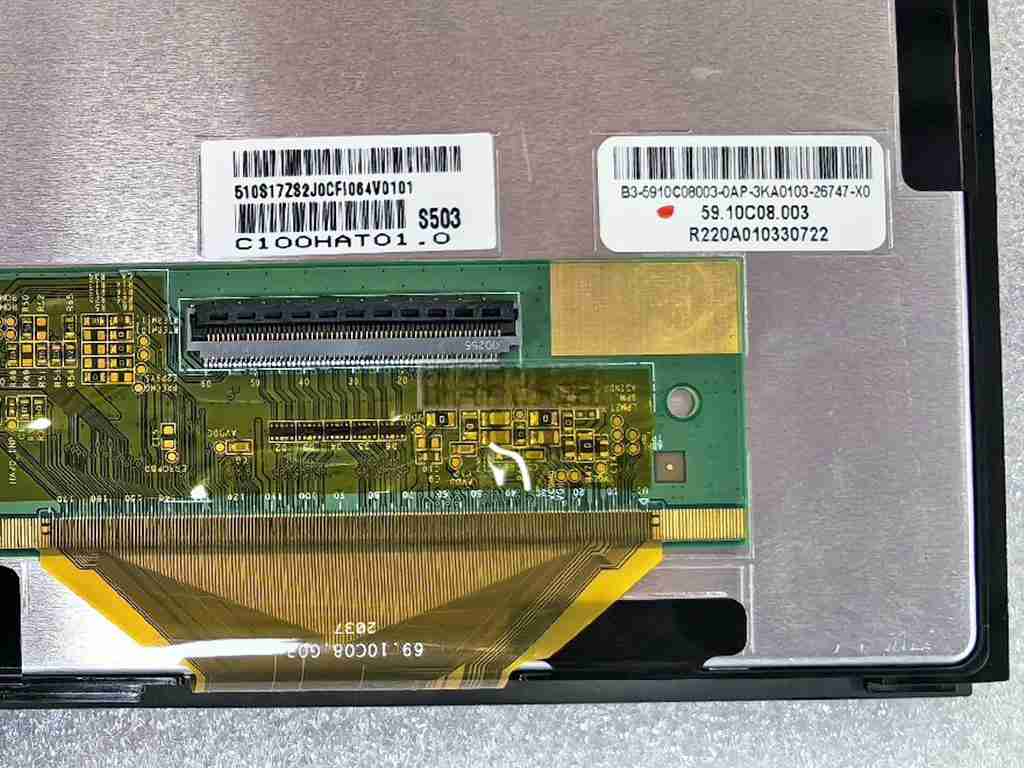

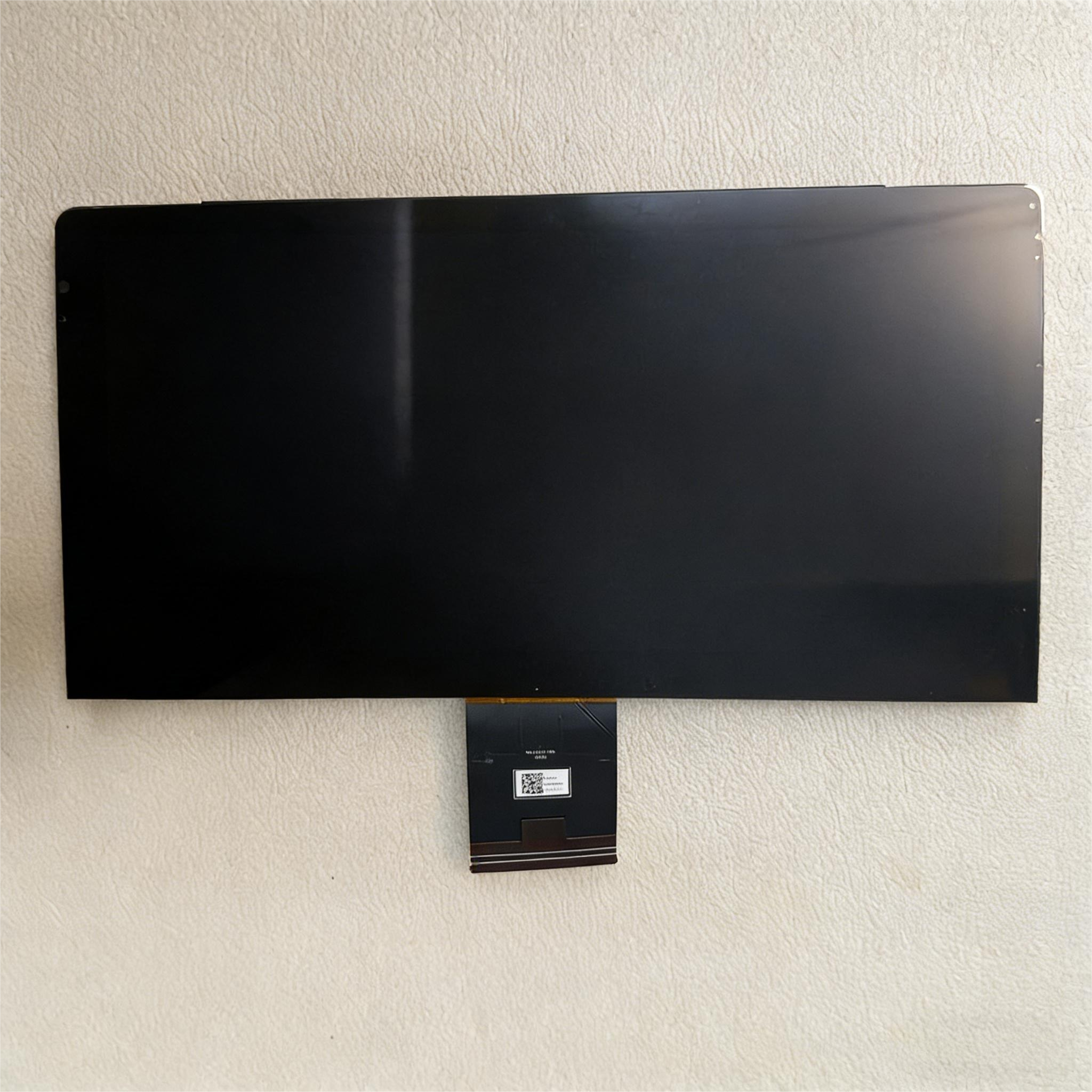

Original AUO C100HAT01.0 10.0″ 1560×700 Car Touch Panel

Original AUO C100HAT01.0 10.0-inch 1560×700 High Brightness Automotive Display with LVDS Interface for In-Vehicle Systems and Harsh Environment

Specifications

Brand: AUO

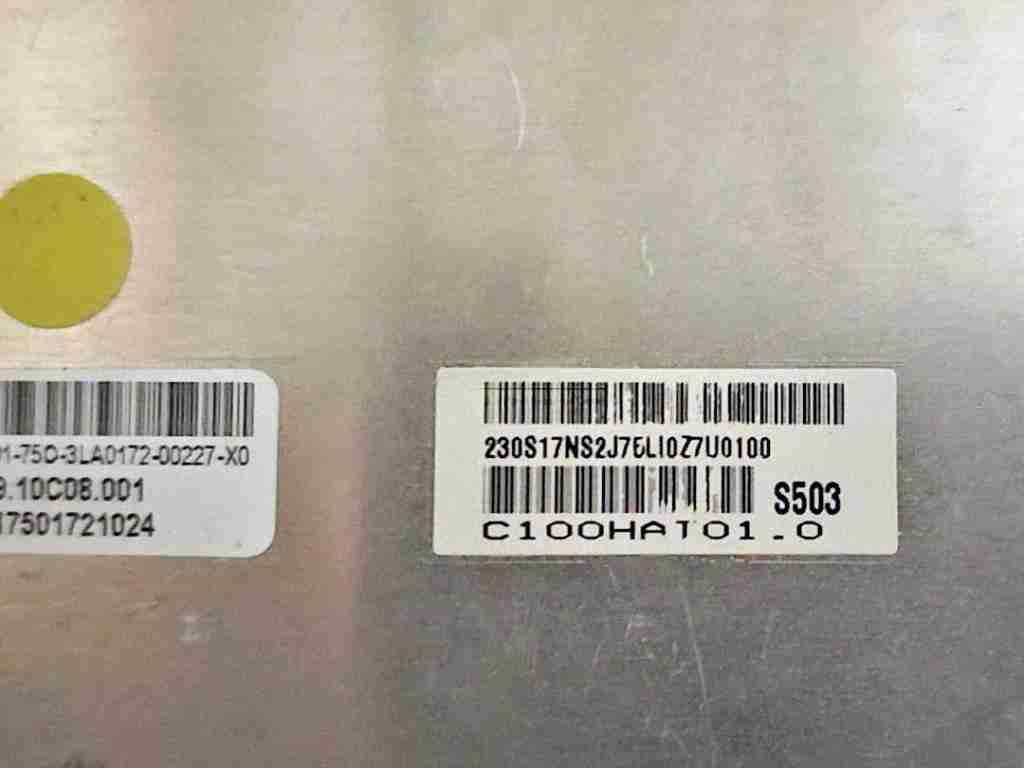

Mode P/N: C100HAT01.0
Diagonal Size: 10.0″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1560(RGB)×700 171PPI
Pixel Format: RGB Vertical Stripe
Active Area: 231.66(W)×103.95(H) mm
Outline Dim.: 259.36 × 131.32 × 12.78 (H×V×D) mm
Treatment: Antiglare, Reflection 6.0% (Max.)
Luminance: 940 cd/m² (Min.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Best View on: Symmetry
Response Time: 30 (Max.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: Without
Interface Type: LVDS (2 ch, 8-bit), 60 pins Connector
Power Supply: 3.3/13.5/18/-8V (Typ.)(VDD/AVDD/VGH/VGL)
Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
