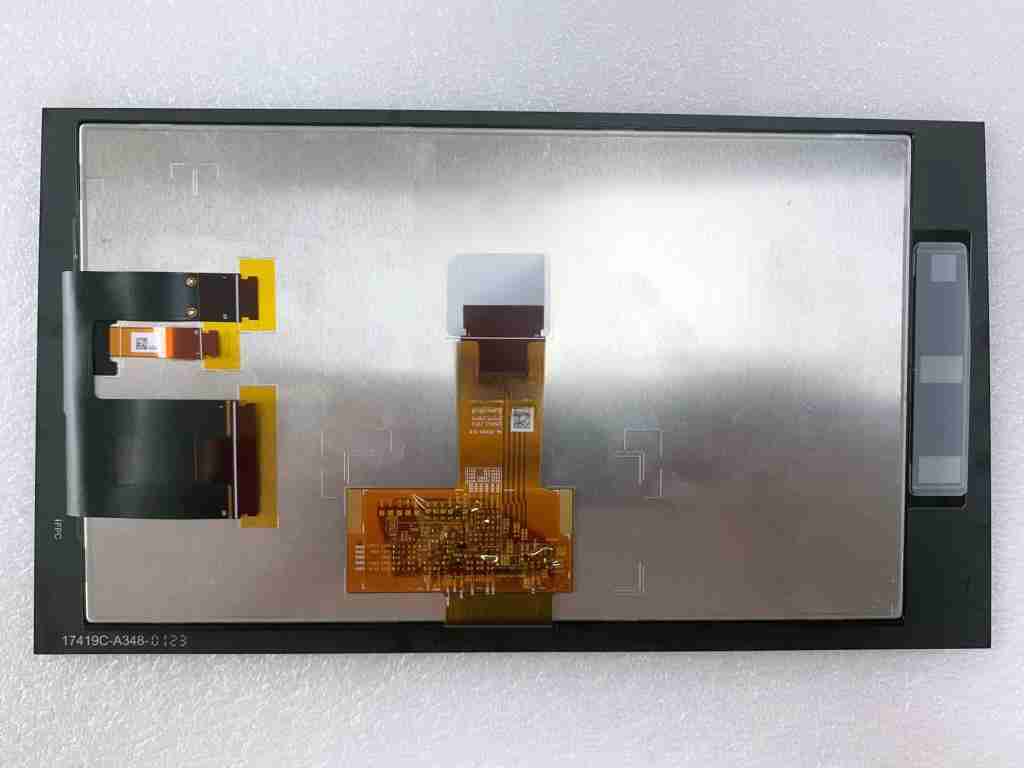

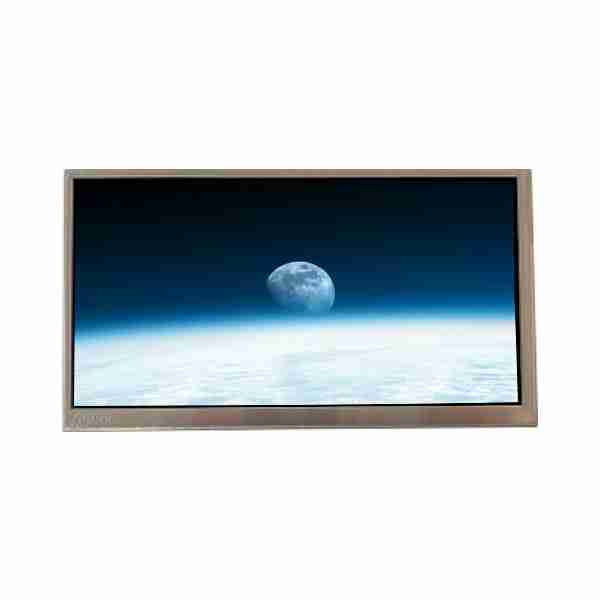

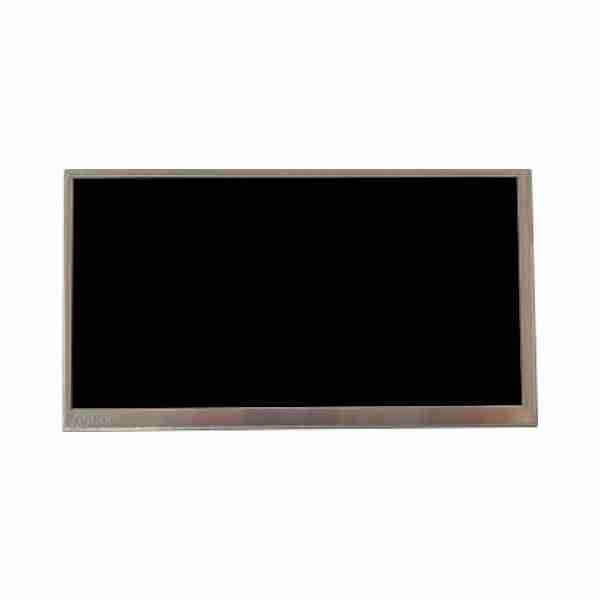

Original AUO C101EAT03.3 10.1" 1280x720 Car Touch Panel
AUO C101EAT03.3 10.1-inch WXGA LCD Display with 1280×720 Resolution, LVDS + SPI Interface, designed for industrial and embedded applications. This display module features advanced a-Si TFT-LCD technology, offering excellent brightness of 480 cd/m², high contrast ratio of 1000:1, and a wide viewing angle of 80/80/80/80. It is equipped with a PCAP touch panel and operates in a wide temperature range of -30 to 85°C, making it ideal for harsh environments. This display is perfect for engineers selecting reliable and high-performance LCD solutions.
Search Keywords:
AUO C101EAT03.3, 10.1″ WXGA LCD display, AUO display, AUO LCD module, LVDS SPI interface display, 1280×720 resolution, industrial LCD display, TFT LCD screen, AUO screen, AUO LCD screen, LCD module AUO, thin film transistor display, AUO 10.1″ display, AUO panel, Arduino LCD module, industrial screen AUO, PCAP touch panel, high contrast LCD, AUO display module, TFT-LCD display, AUO display screen, 10.1 inch display, embedded display, durable LCD, anti-glare display, AUO industrial display, high brightness LCD, 480 cd/m², reliable LCD display, 1000:1 contrast display, WXGA display AUO, embedded systems screen, LVDS interface LCD, TFT panel AUO, SPI interface display.
Specifications
| Brand: AUO Mode P/N: C101EAT03.3 Diagonal Size: 10.1″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1280(RGB)×720, WXGA 145PPI Pixel Format: RGB Vertical Stripe Active Area: 223.68(W)×125.82(H) mm Outline Dim.: 286.82 × 159.44 × 11.86 (H×V×D) mm Treatment: Antiglare (Haze 8%), Hard coating (2H) Luminance: 480 cd/m² (Min.) Contrast Ratio: 1000:1 (Typ.) (TM) Best View on: Symmetry Response Time: 20/20 (Max.)(Tr/Td) ms Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: PCAP Interface Type: LVDS (1 ch, 8-bit) + SPI, 40 pins FPC Power Supply: 3.3/13.5/18/-8V (Typ.) (VDD/VDDA/VGH/VGL) Environment: Operating Temp.: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
