Product Overview

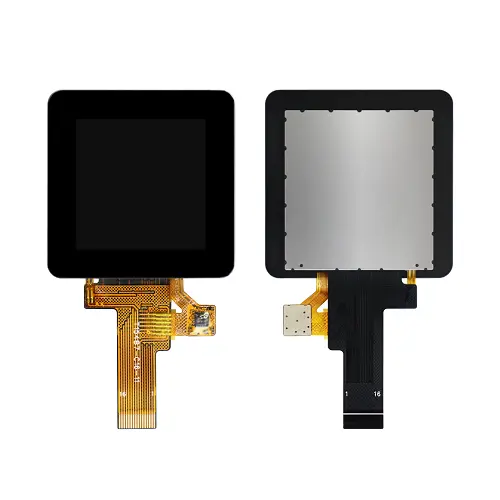

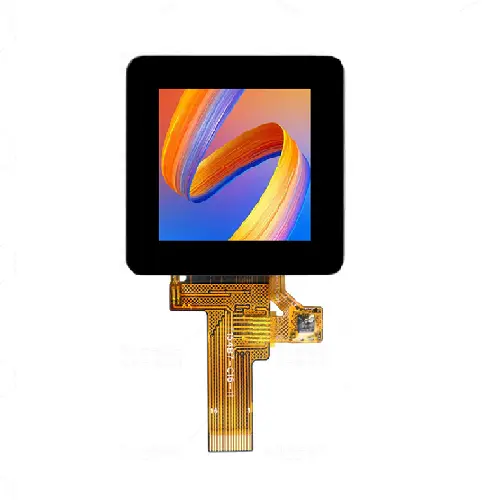

NoseDisplay ND015TSC240240-A01 is a 1.54 inch IPS TFT LCD module with a 240×240 pixel display and capacitive touch for interactive product interfaces. Its SPI 4-Line interface and ST7789 controller support integration into host display designs for handheld instruments, embedded controls and compact equipment interfaces. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, touch integration and enclosure design. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND015TSC240240-A01 |
| Display Size | 1.54 Inch |
| Resolution | 240×240 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | Capacitive |
| Outline Dimensions | 40.15 × 40.15 × 3.395 mm |
| Active Area | 27.72 × 27.72 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V-3.3V |
| Luminance | 300cd/m² |
| Display Interface | SPI 4-Line |
| Connection Type | 16 pin connector |
| IC | ST7789 |
| Weight | -- |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

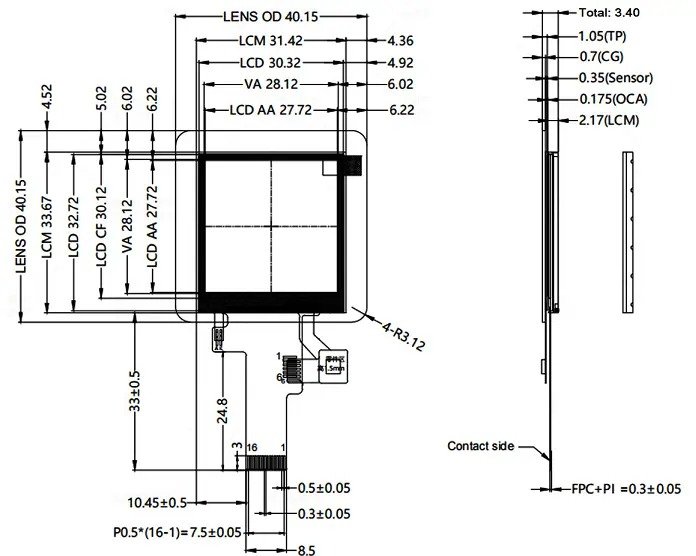

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | DCX | Data/Command Select |
| 03 | RESX | Reset |
| 04 | SDA | Serial Data |
| 05 | SCL | Serial Clock |
| 06 | CSX | Chip Select |
| 07 | VCC | POWER SUPPLY |
| 08 | LEDA | Backlight Anode |
| 09 | LEDK | Backlight Cathode |
| 10 | IOVCC | I/O POWER SUPPLY |
| 11 | TP_VCC | Touch Power Supply |
| 12 | TP_SCL | Touch I2C Clock |
| 13 | TP_SDA | Touch I2C Data |
| 14 | TP_INT | Touch Interrupt |
| 15 | TP_RST | Touch Reset |
| 16 | GND | Ground |
