Product Overview
NoseDisplay ND017TSN240280-A01 is a 1.69 inch IPS TFT LCD module in the 1.7 inch nominal size group, with a 240×280 pixel display and rounded corners for compact product interfaces. Its 4-wire SPI interface and ST7789P3 controller support integration into embedded display designs for portable instruments, smart home controls and connected equipment. Review the model-specific specification and pin definitions when planning host connections, backlight control and enclosure integration. The available FPC configurations should be confirmed for the selected version. NoseDisplay can help evaluate samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND017TSN240280-A01 |
| Display Size | 1.69 inch (1.7-inch nominal) |
| Resolution | 240 × 280 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No touch (optional touch evaluated) |
| Outline Dimensions | 30.07 × 37.43 × 1.56 mm |
| Active Area | 27.97 × 32.63 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 V to 3.3 V |
| Luminance | 400 cd/m² |
| Display Interface | 4-wire SPI |
| Connection Type | 12-pin FPC connector |
| IC | ST7789P3 |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

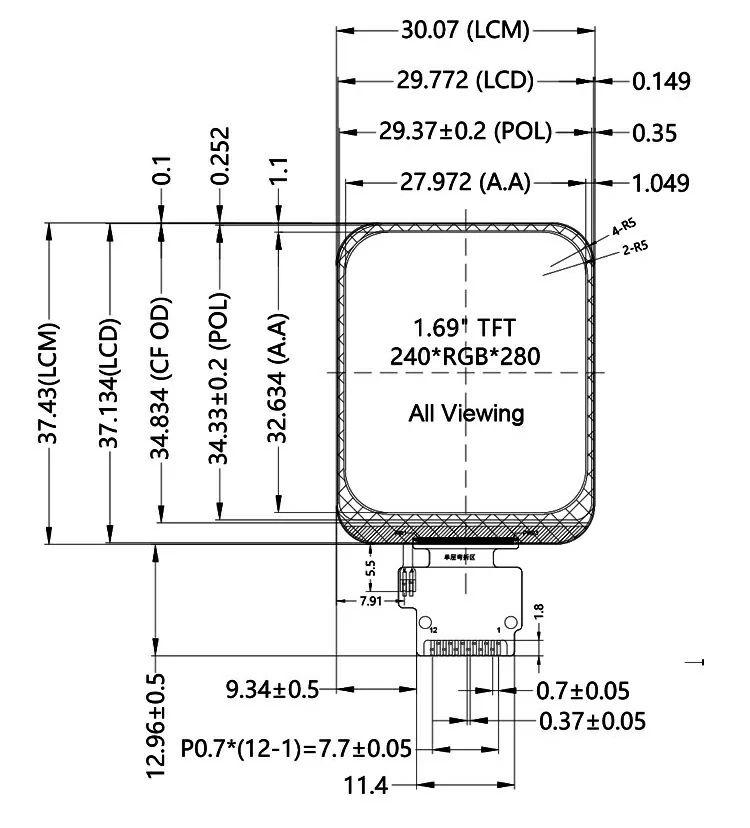

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | LEDK | Backlight Cathode |
| 03 | VCC | POWER SUPPLY |
| 04 | IOVCC | I/O POWER SUPPLY |
| 05 | GND | Ground |
| 06 | GND | Ground |
| 07 | D/C | Data/Command Select |
| 08 | CS | Chip Select |
| 09 | SCL | SPI Clock |
| 10 | SDA | SPI Data |
| 11 | RESET | Reset |
| 12 | TE | Tearing Effect Output |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
Typical Applications
Industrial Control
Smart Home Panels
Portable Instruments
Embedded IoT Devices
TFT LCD displays are widely used in industrial control panels, handheld instruments, smart home devices, embedded systems, IoT equipment, medical devices and other human-machine interface applications requiring clear, responsive visual output.
FPC & Connector Integration
FPC length, pinout, routing and connector position can be evaluated against your host PCB and enclosure requirements.
Panel & Interface Selection
Evaluate TFT panel options for resolution, brightness, viewing angle and interface, subject to the selected display IC.
PCB & Driver Board Design
Adapter PCBs and driver boards can be reviewed for host interfaces, power design and mechanical integration.
Touchscreen & Cover Lens
Capacitive or resistive touch, cover glass and PMMA lenses can be evaluated for your enclosure and application.
