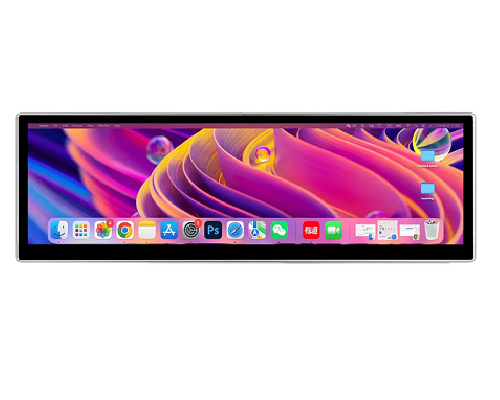

14.9 Inch 2560×720 MIPI TFT LCD Display Module for Automotive and Industrial Applications
ND149TBC2560720-A01 14.9 Inch 2560RGB×720 MIPI TFT LCD touchscreen display delivers an ultrawide viewing experience for automotive dashboards, industrial control panels, smart transportation systems, and embedded equipment. Its 2560×720 resolution provides detailed panoramic visuals, while the 14.9-inch format offers extensive horizontal information space within a slim display design. The MIPI interface supports efficient integration with compatible embedded processors and development platforms. With 350 cd/m² brightness and 80/80/80/80 viewing angles, the display provides clear content visibility across multiple viewing directions. Capacitive touch functionality enables intuitive user interaction for modern HMI applications. The -20°C to 60°C operating temperature range supports demanding equipment environments, while -25°C to 70°C storage performance adds flexibility during transportation and system deployment. This TFT LCD module is suitable for engineers seeking a wide-format touchscreen solution with high resolution, reliable integration, and practical industrial application performance.
Key Features:
Resolution: 2560RGB×720 for clear, detailed wide-screen images
Ultrawide Format: 14.9-inch 32:9 aspect ratio for expanded horizontal display space
MIPI Interface: MIPI interface for convenient processor integration
Brightness: 350 cd/m² for indoor equipment and dashboard applications
Viewing Angle: 80/80/80/80 for clear viewing from multiple directions
Temperature: -20~60°C operation and -25~70°C storage for industrial and transportation equipment
Application Scenarios:
Automotive dashboards benefit from ultrawide touchscreen information layouts and panoramic visualization capabilities
Industrial HMIs use touchscreen interaction for equipment monitoring, machine control, and operational data visualization
Smart transportation systems require wide displays for navigation, vehicle information, and centralized control interfaces
Digital cockpit systems benefit from high resolution panoramic displays for integrated information and interactive functions
Industrial automation equipment can use ultrawide touchscreen displays for process monitoring and intuitive operator control
Embedded devices benefit from MIPI connectivity, compact integration, and high resolution wide-format visual presentation
Competitive Advantages:
Ultrawide 32:9 format maximizes horizontal information space while maintaining a practical slim display configuration
2560×720 resolution provides detailed visuals across extensive panoramic interfaces and information-rich application environments
MIPI interface simplifies integration with compatible embedded processors and modern system architectures
Touchscreen functionality enables intuitive user interaction without requiring separate physical control interfaces
350 cd/m² brightness balances clear visual presentation with practical power and system design requirements
Wide operating temperature support improves deployment flexibility across demanding industrial and transportation equipment environments
Specifications
| Model | ND149TBC2560720-A01 |
| Screen Size | 14.9 Inch |
| Active Area | 99.792(W)*354.816(H) |
| Outline | 364(H)*113(V)*3.0(T) |
| Resolution | 2560RGB(H)×720(V) |
| Display Type | TFT |
| Interface | MIPI |
| Brightness | S |
| Viewing Angle | 80/80/80/80 |
| Storage Temperature | -25 ~70°C |
| Operating Temperature | -20 ~ 60°C |
| Touch Screen | Yes |
Interface Definition
| NO. | Symbol | Level | Description |
|---|---|---|---|
| 1 | GND | ||
| 2 | TP_INT | Touch I2C interrupt(note: io is 1.8V) | |
| 3 | TP_SDA | Touch I2C data(note: io is 1.8V) | |
| 4 | TP_SCL | Touch I2C clock(note: io is 1.8V) | |
| 5 | TP_RESET | Touch part reset pin (note: io is 1.8V) | |
| 6 | GND | Ground | |
| 7 | NC | Intemal used | |
| 8 | GND | Ground | |
| 9 | MIPI_D0_N | MIPI Differential Data0 Input | |
| 10 | MIPI_D0_P | MIPI Differential Data0 Input | |
| 11 | GND | Ground | |
| 12 | MIPI_D1N | MIPI Differential Data1 Input | |
| 13 | MIPI_D1_P | MIPI Differential Data1 Input | |
| 14 | GND | Ground | |
| 15 | MIPI_D2_N | MIPI Differential Data2 Input | |
| 16 | MIPI_D2_P | MIPI Differential Data2 Input | |
| 17 | GND | Ground | |
| 18 | MIPI_DCLK_N | MIPI Differential CLOCK Input | |
| 19 | MIPI_DCLK_P | MIPI Differential CLOCK Input | |
| 20 | GND | Ground | |
| 21 | MIPI_D3_N | MIPI Differential Data3 Input | |
| 22 | MIPI_D3_P | MIPI Differential Data3 Input | |
| 23 | GND | GND | |
| 24 | NC | NC | |
| 25 | NC | NC | |
| 26 | GND | Ground | |
| 27 | NC | NC | |
| 28 | NC | NC | |
| 29 | GND | Ground | |
| 30 | NC | NC | |
| 31 | NC | NC | |
| 32 | GND | Ground | |
| 33 | NC | NC | |
| 34 | NC | NC | |
| 35 | GND | Ground | |
| 36 | NC | NC | |
| 37 | NC | NC | |
| 38 | GND | Ground | |
| 39 | VDD | Power supply,3.3V | |
| 40 | VDD | Power supply,3.3V | |
| 41 | GND | Ground | |
| 42 | NC | NC | |
| 43 | NC | NC | |
| 44 | RESET | RESX 1.8V | |
| 45 | NC | NC | |
| 46 | NC | NC | |
| 47 | LED_K | LED backlight (Anode) | |
| 48 | LED_K | LED backlight (Anode) | |
| 49 | LED_A | LED backlight (Anode) | |
| 50 | LED_A | LED backlight (Anode) |
Custom 14.9'' TFT Display
We offer full customization of TFT 14.9'' LCD display modules, including resolution, brightness, interface, and touch options. Our service covers PCB design, connector modification, and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
LCD Cable Custom
Adjust LCD cable length, pin layout, and connector position of IPS display 14.9 inch to match your system. Engineered for reliable and optimized connectivity.
LCD Interface Custom
Choose interfaces of LCD 14.9 inch TFT from MCU parallel, LVDS, SPI, RGB, and beyond. We’ll guide you in selecting and integrating the best LCD interface fit for your project.
14.9'' LCD PCB Design
Customize PCB shape, size, pin configuration, and component layout of TFT 14.9 inch display to guarantee precise fit and smooth integration with your device.
14.9'' Touch Adding
Enhance your TFT LCD 14.9 inch IPS display with resistive or capacitive touch. Seamless integration delivers smooth control and intuitive operation.
