Product Overview

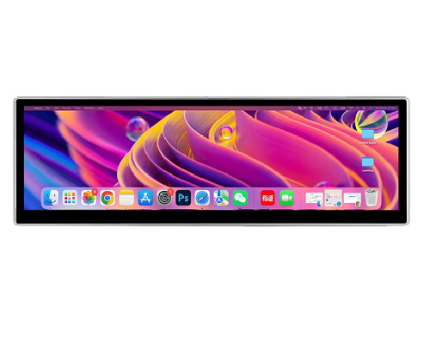

NoseDisplay ND152TBN1920720-A01 is a 15.2 inch bar-type IPS TFT LCD module with a 1920×720 pixel display for product interface development. Its LVDS interface supports integration into host display designs for elongated equipment interfaces, information displays and space-constrained control panels. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, backlight control and enclosure integration. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND152TBN1920720-A01 |
| Display Size | 15.2 Inch |
| Resolution | 1920×720 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | -- |
| Touchscreen | No |
| Outline Dimensions | 364.58 × 144.08 × 5.0 mm |
| Active Area | 344.15 × 132.29 mm |
| Parameter | Specification |
| Supply Voltage | -- |
| Luminance | 550 cd/m² (Typ.) |
| Display Interface | LVDS |
| Connection Type | 50-pin connector |
| IC | -- |
| Weight | -- |
| Operating Temperature | -30°C ~ 80°C |
| Storage Temperature | -40°C ~ 90°C |
Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | NC | No Connection |
| 03 | VCC | POWER SUPPLY |
| 04 | VCC | POWER SUPPLY |
| 05 | VCC | POWER SUPPLY |
| 06 | NC | No Connection |
| 07 | GND | Ground |
| 08 | GND | Ground |
| 09 | GND | Ground |
| 10 | ORxin0- | Differential Data - |
| 11 | ORxin0+ | Differential Data + |
| 12 | ORxinl- | Differential Data - |
| 13 | ORxinl+ | Differential Data + |
| 14 | ORxin2- | Differential Data - |
| 15 | ORxin2+ | Differential Data + |
| 16 | ORxclkin- | Differential Clock - |
| 17 | ORxclkin+ | Differential Clock + |
| 18 | ORxin3- | Differential Data - |
| 19 | ORxin3+ | Differential Data + |
| 20 | ERxin0- | Differential Data - |
| 21 | ERxin0+ | Differential Data + |
| 22 | ERxinl- | Differential Data - |
| 23 | ERxinl+ | Differential Data + |
| 24 | ERxin2- | Differential Data - |
| 25 | ERxin2+ | Differential Data + |
| 26 | ERxclkin- | Differential Clock - |
| 27 | ERxclkin+ | Differential Clock + |
| 28 | ERxin3- | Differential Data - |
| 29 | ERxin3+ | Differential Data + |
| 30 | GND | Ground |
| 31 | NC | No Connection |
| 32 | NC | No Connection |
| 33 | EN | Enable |
| 34 | FAULT | -- |
| 35 | SCL | Serial Clock |
| 36 | SDA | Serial Data |
| 37 | WPN | -- |
| 38 | GND | Ground |
| 39 | GND | Ground |
| 40 | NC | No Connection |
| 41 | LEDA | Backlight Anode |
| 42 | LEDA | Backlight Anode |
| 43 | LEDA | Backlight Anode |
| 44 | NC | No Connection |
| 45 | LEDK | Backlight Cathode |
| 46 | LEDK | Backlight Cathode |
| 47 | LEDK | Backlight Cathode |
| 48 | LEDK | Backlight Cathode |
| 49 | NTC_A | -- |
| 50 | NTC_K | -- |
