Product Overview
NoseDisplay ND020TSN320240-B01 is a compact IPS TFT LCD module for embedded interfaces in handheld instruments, industrial controls, smart home devices and connected IoT equipment. This small color display can be evaluated for portable test meters, sensor readouts, equipment status screens and compact HMI panels in custom OEM products. Engineers can review integration for menu navigation, operating information and user feedback, with FPC connections, enclosure fit, touch options and host requirements assessed for the selected design.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND020TSN320240-B01 |
| Display Size | 2.0 inch |
| Resolution | 320×240 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 46.10 × 40.96 × 2.55 mm |
| Active Area | 40.80 × 30.60 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V-3.3V |
| Luminance | 350 cd/m² |
| Display Interface | SPI |
| Connection Type | 16-pin FPC (0.50 mm pitch) |
| IC | ILI9342C |
| Weight | — |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

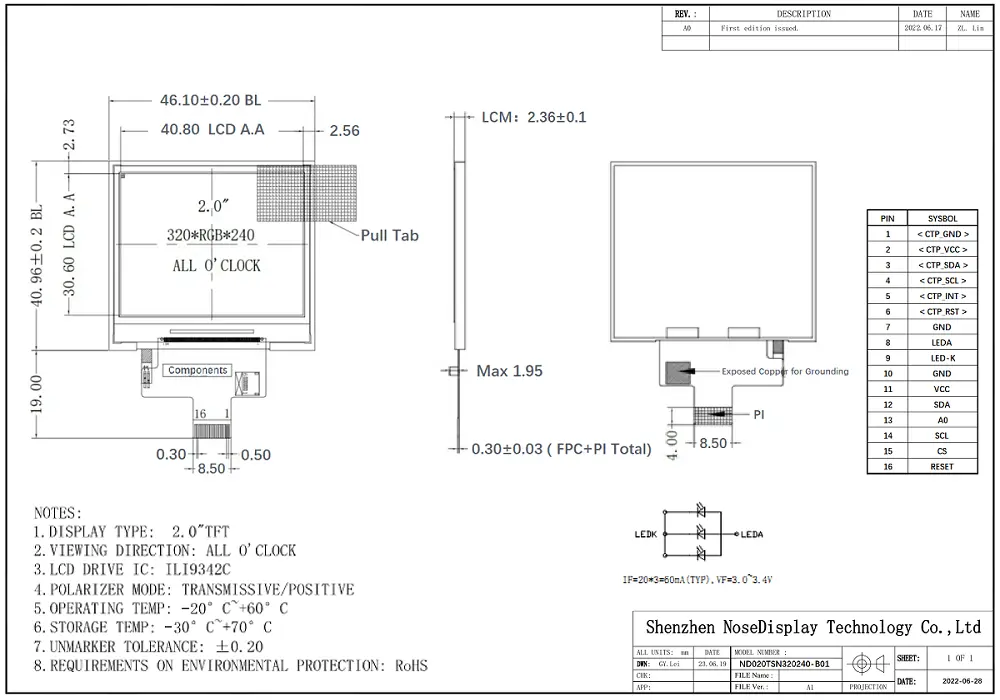

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | CTP_GND | NC without touch; CTP ground reference |
| 02 | CTP_VCC | NC without touch; CTP 3.3 V supply reference |
| 03 | CTP_SDA | NC without touch; CTP data reference |
| 04 | CTP_SCL | NC without touch; CTP clock reference |
| 05 | CTP_INT | NC without touch; CTP interrupt reference |
| 06 | CTP_RST | NC without touch; CTP reset reference |
| 07 | GND | Power ground |
| 08 | LEDA | Backlight anode |
| 09 | LED-K | Backlight cathode |
| 10 | GND | Power ground |
| 11 | VCC | LCD module power input; 2.8 V in reference pin table |
| 12 | SDA | Display serial data input |
| 13 | A0 | Command/data selector |
| 14 | SCL | Display serial clock |
| 15 | CS | Chip select |
| 16 | RESET | Display reset input |
