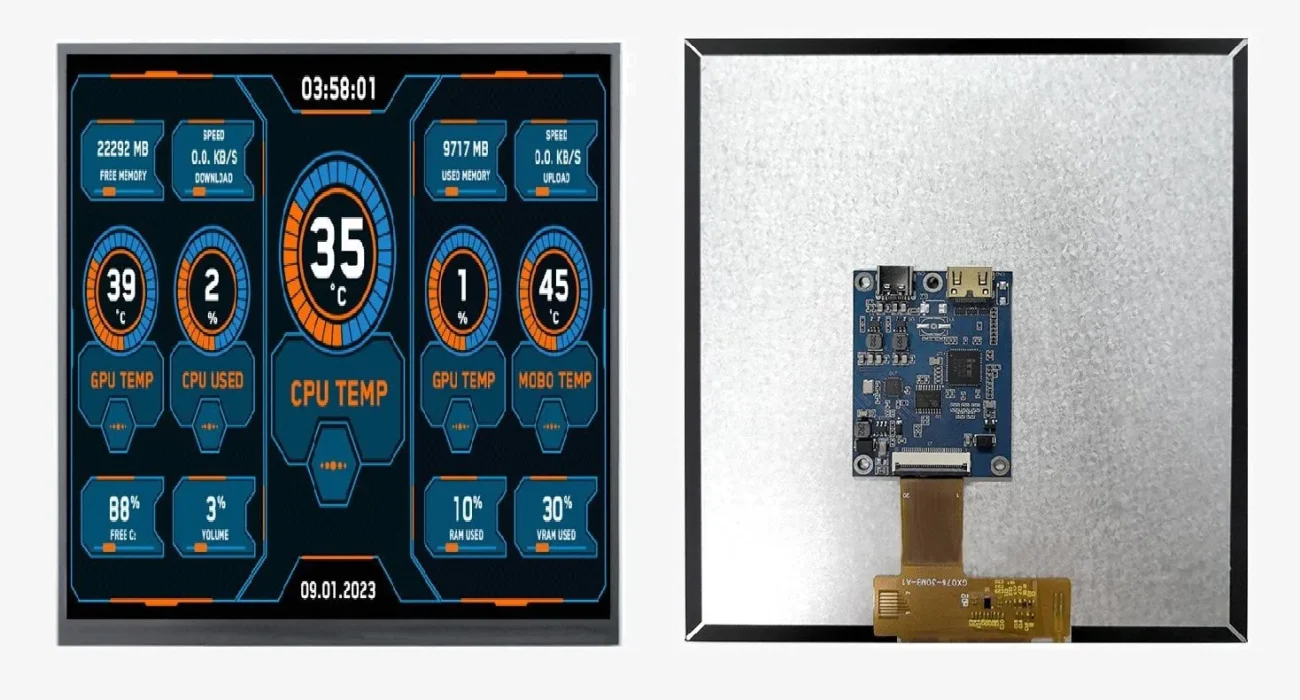

7.6 Inch 1200×1200 HDMI IPS Square Touch Raspberry Pi Display
UEDX12120076-HMD-RB-A is a 7.6 inch square IPS TFT HDMI display designed for Raspberry Pi development, industrial HMI systems, embedded control interfaces, smart dashboards, and high resolution visualization applications. Featuring a 1200×1200 pixel IPS panel, it delivers ultra sharp image quality, balanced pixel density, and consistent color performance across all viewing angles. The square form factor enables optimized UI layout design for data intensive dashboards, monitoring systems, and interactive control interfaces. HDMI plug and play connectivity ensures seamless integration with Raspberry Pi series, Jetson Nano, Windows PCs, Linux systems, and embedded industrial controllers without driver installation. Optional capacitive multi touch support enhances user interaction for smart control applications. This display is ideal for PC system monitors, sim racing dashboards, smart home control panels, AI visualization systems, industrial automation terminals, and IoT monitoring devices. Designed for engineers requiring high resolution compact displays, stable performance, and flexible integration, it supports next generation embedded and industrial applications.
Product Features
Ultra High Resolution Display – 1200×1200 IPS panel delivers sharp and detailed visual output
Square IPS Design – Balanced pixel layout optimized for dashboard and UI applications
HDMI Plug Interface – HDMI connectivity enables fast embedded system integration
Driver Free Operation – USB touch support enables plug and play installation
Optional Touch Support – Capacitive touch enables interactive control interface design
Wide System Compatibility – Supports Raspberry Pi Jetson Nano Windows Linux platformsApplication Scenarios
Industrial automation dashboards requiring high resolution square display
Smart home control systems requiring detailed visualization interfaces
Raspberry Pi embedded projects requiring high DPI display modules
PC monitoring dashboards displaying detailed system performance metrics
AI visualization systems requiring high resolution interface display
Sim racing dashboards requiring precise telemetry visualization screensCompetitive Advantages
Ultra high resolution improves UI clarity and detail
Square IPS design optimizes dashboard layout efficiency
HDMI interface simplifies embedded system integration process
Optional touch enables interactive industrial control applications
Wide compatibility supports Raspberry Pi and PCs
Compact design fits modern embedded system requirementsSpecifications
Model UEDX12120076-HMD-RB-A Screen Size 7.6 Inch Active Area 71.93(W)*71.93(H) Outline 84(W)*84(H) Resolution 1200(H)*1200(V) Display Type IPS TFT Interface HDMI/MIPI Brightness 1000 cd/㎡ Viewing Angle All O’clock Operating Temperature -20 ~ 70°C Touch Screen No Display Color 16.7M Colors
Custom Your Display
We provide fully customized 7.6-inch Serial Display, covering both hardware and software aspects. Our tailored solutions facilitate smooth integration, accelerate development, and deliver dependable performance, enabling you to bring unique, high-quality products to market efficiently.
LCD Hardware Customization
We offer fully customized 7.6-inch Serial Display, giving you the ability to adjust size, resolution, panel type, touch functionality, brightness, power supply, and PCB design—ensuring seamless integration and an optimized experience for end users.
LCD Interface & Communication Custom
Our 7.6-inch Serial Display support customizable UART, CAN, and SPI interfaces, offering versatile protocol options to guarantee dependable performance and smooth integration for your LCD applications.
LCD Software Customization
For 7.6-inch Serial Display, we create tailored UIs, icons, themes, and multilingual fonts, integrating storage, command sets, and development resources—enabling faster product launches with distinctive and robust functionality.
LCD Industrial Grade Adaptation
For 7.6-inch Serial Display, we adapt modules for industrial and automotive use, supporting temperature ranges from -40°C to 85°C, with IP65/IP67 sealing, enhanced EMC performance, and vibration-resistant design—delivering durable and dependable operation in demanding environments.
