NDTP701024600 | 7-Inch HMI Touch Screen Panel 1024×600 TFT IPS Display for Raspberry Pi Embedded Systems LCD Module for Industrial Automation

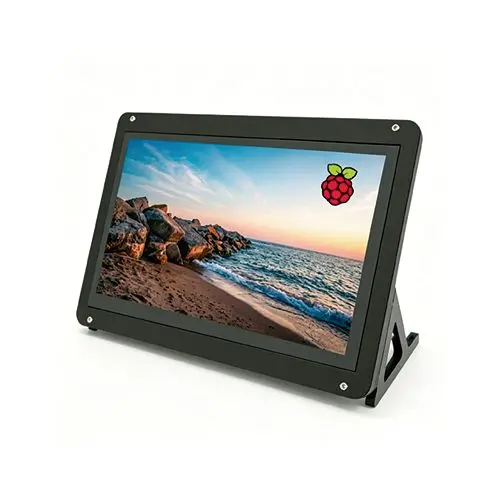

The NDTP701024600 is a 7.0-inch industrial HMI screen designed for Raspberry Pi embedded applications. Featuring a TFT-IPS transmissive panel with 1024×600 resolution and 500 nits brightness, it delivers sharp, vibrant, wide-angle visuals suitable for industrial and consumer environments. Its capacitive touchscreen provides smooth and accurate multi-touch control, making it ideal for industrial automation HMI and smart devices.

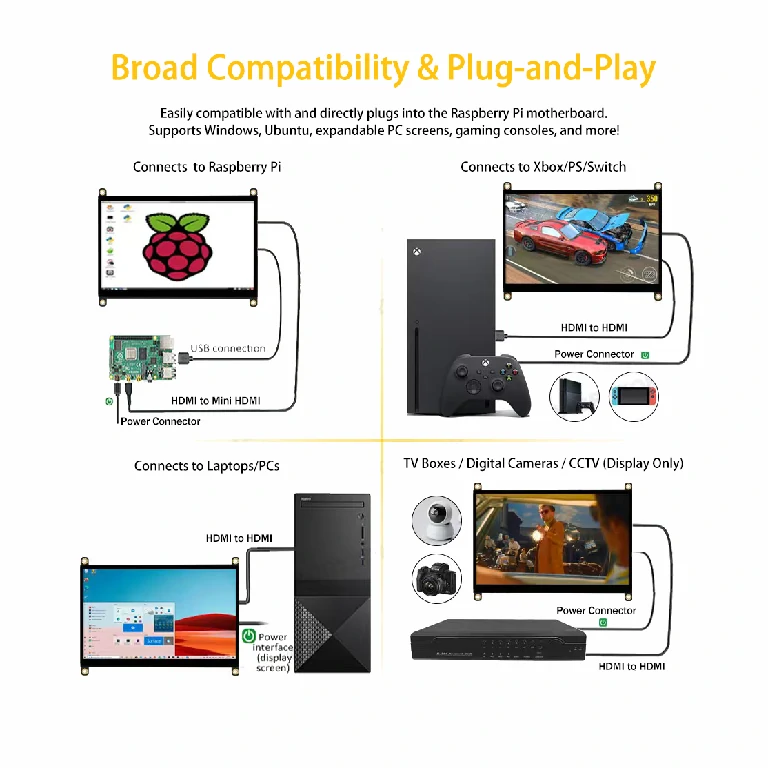

This module comes with a Raspberry Pi connection board (integrated development board), allowing direct plug-and-play connection with Raspberry Pi via the DSI MIPI interface. Optimized to support Raspberry Pi OS, it simplifies system integration and prototyping, reducing setup time and hardware complexity.
Compact in size (164.9 × 124.3 × 13 mm) and built with a durable structure, it operates reliably within a wide temperature range (-10°C ~ 60°C), making it an excellent MIPI display for embedded and industrial use.
Product Features

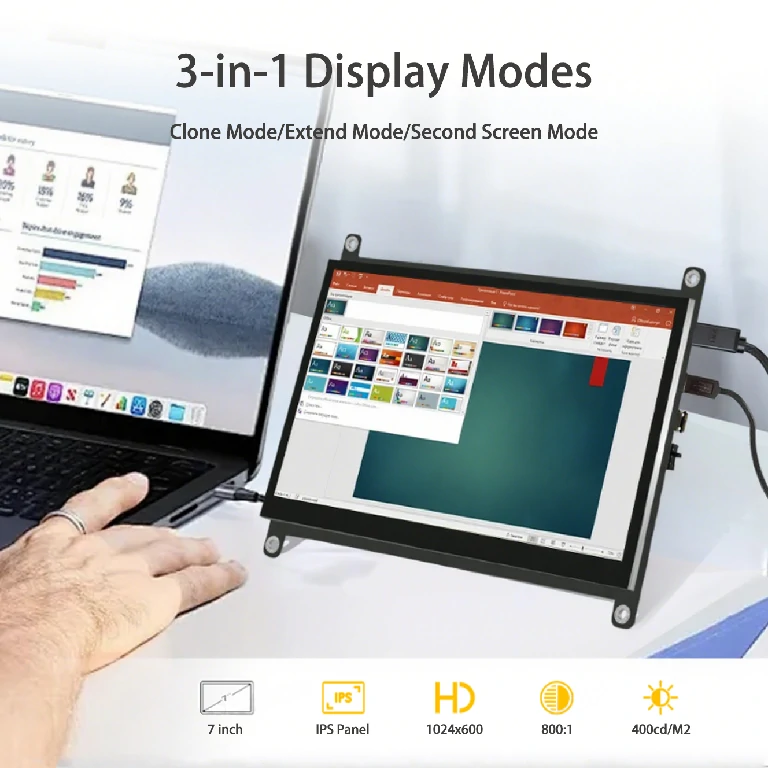

7.0-Inch IPS Display – 1024×600 resolution with crisp, vivid output.
High Brightness – 500 nits ensures excellent readability.

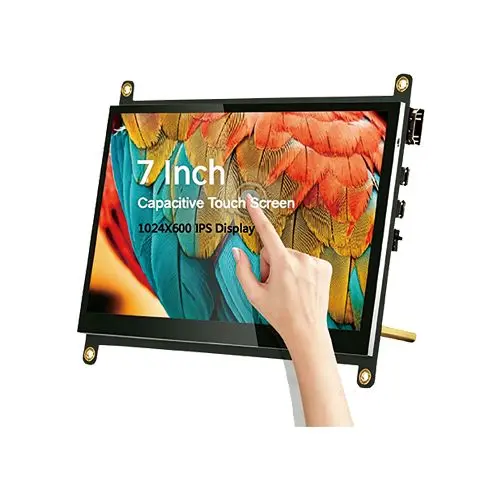

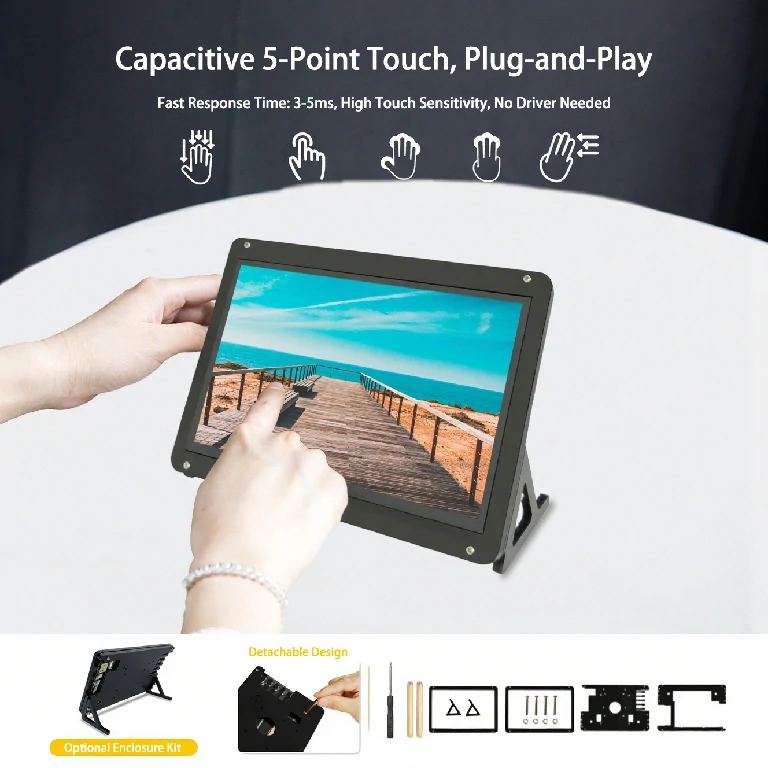

Capacitive Touchscreen – Accurate and responsive touch performance.
DSI MIPI Interface – Stable high-speed connectivity with 15-pin connector.
Includes Raspberry Pi Connection Board – Direct interface with Raspberry Pi, no extra adapter required.

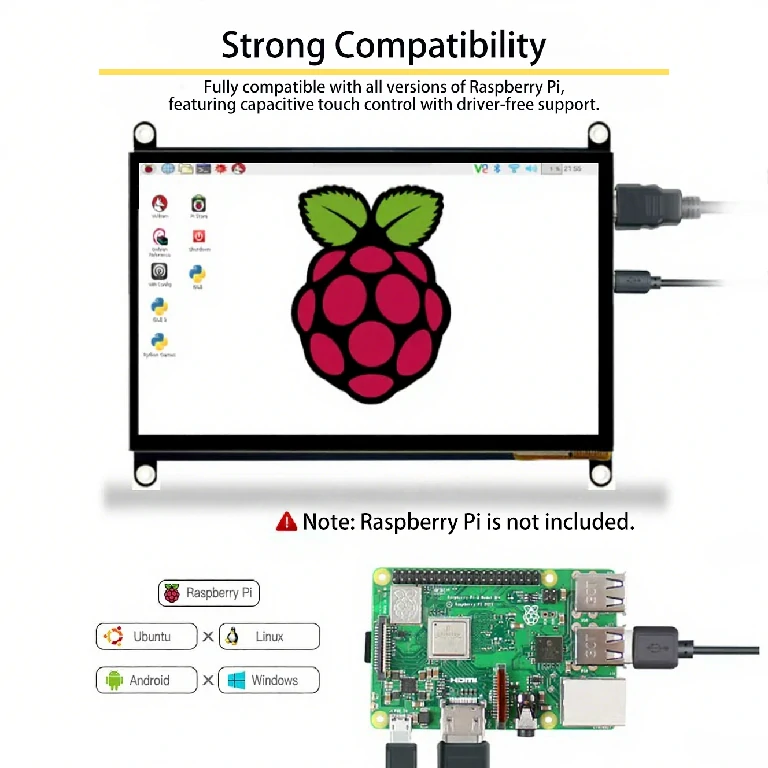

Raspberry Pi Embedded – Fully compatible with Raspberry Pi hardware and supports Raspberry Pi OS.
Integrated Development Board – Simplifies prototyping and embedded development.
Industrial HMI Screen – Reliable, long-lasting display for industrial applications.
Application Scenarios
Industrial automation HMI panels for factories and monitoring terminals
Raspberry Pi embedded displays for education, prototyping, and product development
EV and automotive dashboards requiring slim, bright MIPI displays
Retail kiosks, vending machines, and POS systems with interactive DSI displays
IoT and smart devices based on Raspberry Pi OS with direct DSI connectivity
Competitive Advantages
High-resolution DSI display built for Raspberry Pi embedded systems
Comes with Raspberry Pi connection board for direct connection
Optimized to support Raspberry Pi OS, enabling plug-and-play operation

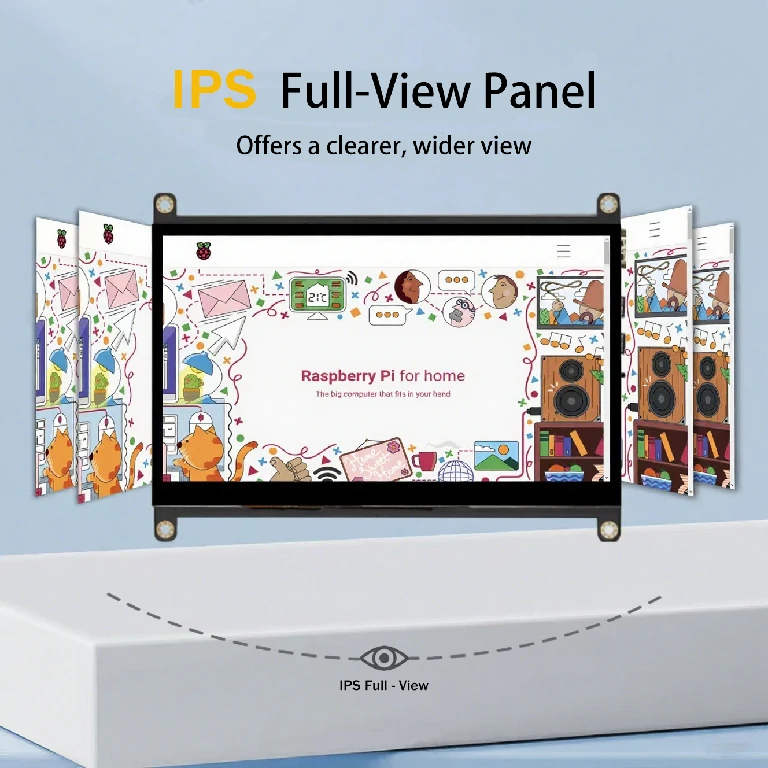

Bright IPS panel (500 nits) with wide-angle view for demanding applications
Slim, durable design tailored for industrial HMI screens and embedded projects
Specifications
| Part No.: | NDTP701024600 |
| Size: | 7.0 inch |
| Display Format: | 1024×600 Resolution |
| Display Type: | TFT- IPS Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes |
| Structure | Raspberry Pi DSI Capacitive Touch Screen |
| Outline Dimension: | 164.9X124.3X13 mm |
| Power Rating: | 5 W |
| Luminance | 500 nits |
| Interface: | DSI MIPI |
| Compatibility: | Raspberry Pi |
| Operating Temperature: | -10°C ~ 60°C |
| Storage Temperature: | -20°C ~ 70°C |
| Mount Frame: | Yes |
Custom Your Display
We provide fully customized 7.0-inch Raspberry Pi displays, covering both hardware and software. Our tailored solutions enable smooth integration, accelerate development, and deliver dependable performance, empowering you to bring smarter, distinctive products to market.
LCD Hardware Customization
We offer full customization for 7.0-inch Raspberry Pi displays, including size, resolution, panel type, touch functionality, brightness, power, and PCB design—ensuring your display integrates seamlessly and provides an optimized user experience.
LCD Interface & Communication Custom
For 7.0-inch Raspberry Pi displays, we offer customizable UART, CAN, and SPI interfaces with versatile protocol support, ensuring smooth integration and dependable performance for your LCD applications.
LCD Software Customization
For 7.0-inch Raspberry Pi displays, we create personalized UIs, icons, themes, and multilingual fonts, and integrate storage, commands, and development tools—enabling faster product launch with distinctive functionalities.
LCD Industrial Grade Adaptation
For 7.0-inch Raspberry Pi displays, we adapt modules to industrial or automotive ranges from -40°C to 85°C, incorporating IP65/IP67 sealing, EMC enhancements, and vibration-resistant design—delivering rugged performance suited to your application.
