8.0″ UART HMI Touch Display for Embedded Control

The ND080SHR800600-A01 is an 8.0-inch UART HMI touch display designed for embedded control, industrial equipment, smart devices, and interactive user-interface applications. It combines an 800×600 TN TFT display, 4-wire resistive touchscreen, Cortex-M4 HMI platform, and TTL UART communication in an open-frame module. RS-232 and RS-485 versions are available subject to confirmed hardware configuration.

Technical Specifications

ModelND080SHR800600-A01
Display8.0″ TN TFT, 800 × 600
Brightness400 cd/m²
Touch4-Wire Resistive Touchscreen
Touch OptionsCapacitive Touch or No Touch optional
HMI PlatformCortex-M4 MCU, 400 MHz
Memory8 MB PSRAM + 16 MB NOR Flash
Communication ProtocolUART Serial Protocol
Standard InterfaceTTL UART
Optional InterfacesRS-232 or RS-485, subject to hardware configuration
Power Input5 V DC, 4.8–5.3 V
StructureTFT + PCBA + RTP
Overall Dimensions192.62 × 142 × 15.8 mm
Active Area162.6 × 122.4 mm
MountingOpen-Frame / Embedded Integration
Operating Temperature−20°C to +70°C
Storage Temperature−30°C to +85°C
Controller CompatibilityArduino, ESP32, Raspberry Pi, and other UART-capable controllers through the TTL UART version; use an appropriate transceiver for RS-232 or RS-485 versions

Mechanical Drawing & Interface Definition

Refer to the ND080SHR800600-A01 mechanical drawing for module dimensions, mounting details, and connector placement. Visit our Download Center for available datasheets, or contact an engineer to confirm the documentation for your hardware version.

8-inch 800x600 UART HMI touch display mechanical drawing

PIN Description

Confirm the selected hardware configuration before wiring.

Model-specific pin definitions are available on request. Contact NoseDisplay with model ND080SHR800600-A01 and the required interface version to confirm the correct pinout before wiring.

Module Views & Connection Details

Explore the ND080SHR800600-A01 module appearance, PCB layout, and connection details for embedded integration.

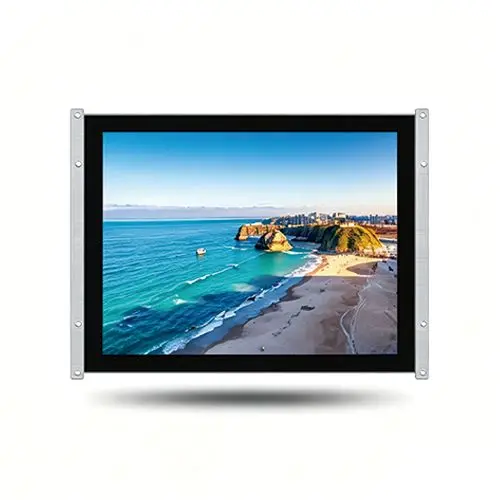

8-inch 800x600 UART HMI touch display with resistive touchscreen

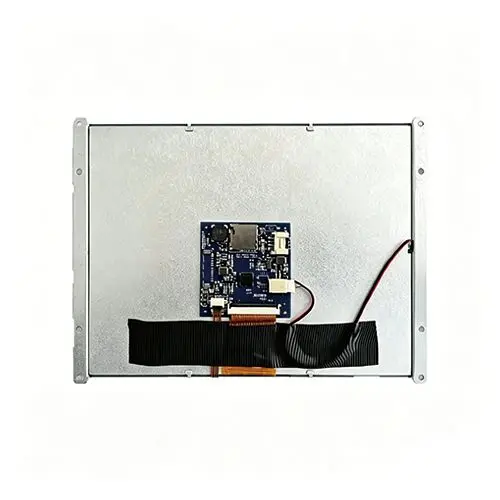

8-inch 800x600 UART HMI display front view
8-inch 800x600 UART HMI display rear view

Development and Integration Support

GUI software, command protocol, interface documentation, pin definitions, and sample code are supplied according to the confirmed hardware and firmware configuration. Contact NoseDisplay with model ND080SHR800600-A01 and the required interface version for the applicable development package.

Sample Ordering & Delivery

Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.

Order Samples

Sample MOQ

2 pcs per model

Minimum order quantity.

Preparation Time

4 days

After order and payment confirmation.

Standard Delivery

US$29$29

Shipping Fee

Transit Time: ~11 days

Total Time: ~15 days

Express Delivery

US$69$69

Shipping Fee

Transit Time: ~4 days

Total Time: ~8 days

Order Samples

Customization Options

Explore hardware, UART interface, GUI, and environmental customization options for ND080SHR800600-A01 OEM projects.

8-inch UART HMI display hardware customization

Hardware Customization

Optional customization includes display type, brightness, touch solution, external memory, PCBA functions, connector layout, power input, and mechanical structure.

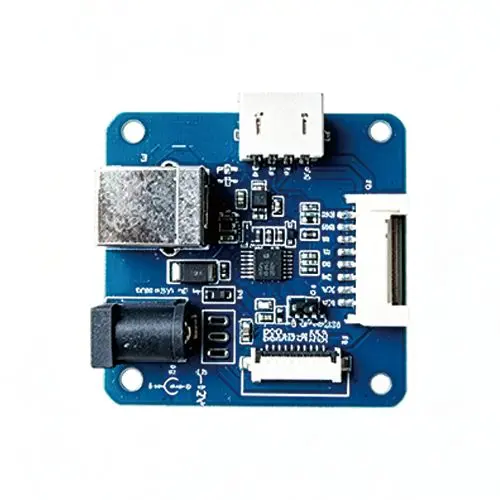

8-inch UART HMI display interface customization

Interface Customization

TTL UART is available as the standard interface. RS-232, RS-485, CAN, USB, or other communication options may be developed based on project requirements.

8-inch UART HMI display software and UI customization

Software & UI Customization

Optional services include GUI development, command protocol customization, multilingual fonts, icons, themes, boot screens, and application-specific interface design.

UART HMI environmental customization

Environmental Customization

Optional enhancements may include extended-temperature components, optical bonding, customized cover glass or enclosures, EMC improvements, and upgraded environmental protection. Final specifications are subject to engineering evaluation.
