4.3″ UART HMI Touch Display for Embedded Control
The ND043SHG800480-A01 is a compact 4.3-inch UART HMI touch display designed for embedded control, smart equipment, industrial interfaces, and interactive display applications. It combines an 800×480 IPS TFT display, capacitive touchscreen, Levetop LT7689 HMI controller, and TTL UART, RS-232, or RS-485 communication options in a compact open-frame module.
4.3″ UART HMI Touch Display Technical Specifications
| Model | ND043SHG800480-A01 |
|---|---|
| Display | 4.3″ IPS TFT, 800 × 480 |
| Brightness | 350 cd/m² |
| Touch | Capacitive Touchscreen |
| HMI Controller | Levetop LT7689 |
| MCU Architecture | Embedded Cortex-M4 |
| Graphics Engine | Integrated 2D Graphics Accelerator |
| Communication Protocol | UART Serial Protocol |
| Interface Options | TTL UART, RS-232, or RS-485, depending on configuration |
| Power Input | 5 V DC |
| Structure | TFT + PCBA + CTP |
| Connector | 10-Pin Connector |
| Overall Dimensions | 121.92 × 73.15 mm |
| Active Area | 95.04 × 53.86 mm |
| Mounting | Open-Frame / Embedded Integration |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +85°C |

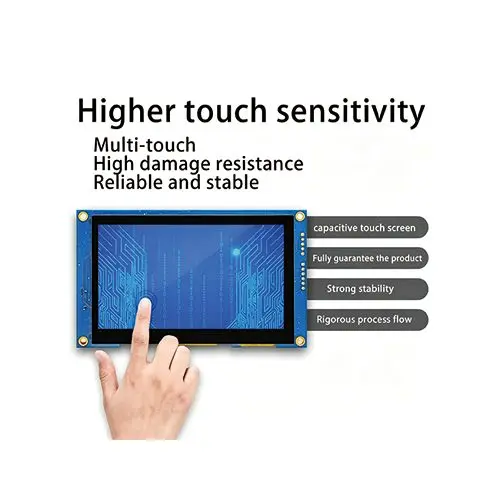

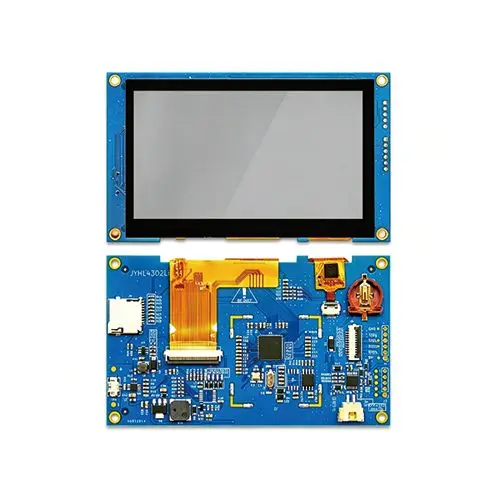

Product Images
Development Support
GUI development software, project download method, supported baud rates, command documentation, and sample code are supplied according to the confirmed hardware and firmware configuration. Contact NoseDisplay with model ND043SHG800480-A01 and the required interface version for the applicable development package.
Customization Options
Hardware Customization
Optional customization includes display brightness, touch solution, PCBA functions, connector layout, power input, memory configuration, and mechanical structure. Final specifications are subject to engineering evaluation.
Interface Customization
TTL UART, RS-232, and RS-485 versions are available depending on the selected hardware configuration. Other interfaces may be developed based on project requirements and technical evaluation.
Software & UI Customization
Optional services include GUI development, communication protocol customization, multilingual fonts, boot screens, icons, themes, and application-specific interface design.
Environmental Customization
Optional enhancements may include optical bonding, customized cover glass or enclosures, EMC improvements, and upgraded environmental protection. Final specifications are subject to engineering evaluation.
