Product Overview

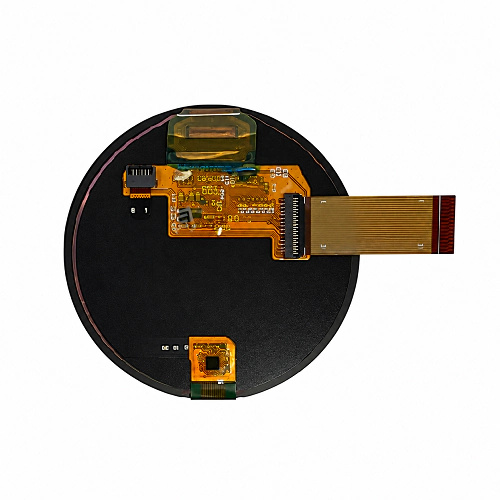

NoseDisplay ND014AMC466466-A02 is a round AMOLED display with capacitive touch for wearable controls, compact instruments, smart home interfaces and embedded IoT devices. Its self-emissive circular OLED screen supports evaluation of touch menus, graphical dials, sensor readings and status interfaces in custom OEM products. MIPI or QSPI integration depends on the selected display configuration and requires suitable host hardware, firmware and AMOLED power circuitry. Engineers developing STM32, ESP32, Arduino or Raspberry Pi projects should confirm the driver solution and touch interface. NoseDisplay supports FPC, cover lens and mechanical integration evaluation.
NoseDisplay ND014AMC466466-A02 is a round AMOLED display with capacitive touch for wearables, compact instruments and embedded IoT interfaces. Its self-emissive circular OLED screen suits touch menus and graphical dials. MIPI or QSPI integration requires suitable hardware, firmware and power circuitry; STM32, ESP32, Arduino and Raspberry Pi projects need a confirmed driver solution. NoseDisplay supports OEM FPC, cover lens and mechanical integration evaluation.
The quoted configuration includes capacitive touch. Listed outline dimensions exclude the cover glass; confirm the complete touch assembly drawing before integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND014AMC466466-A02 |
| Display Size | 1.43 Inch |
| Resolution | 466×466 pixels |
| Display Type | AMOLED |
| Display Mode | Self-emissive |
| Touchscreen | Capacitive touch (G+F) |
| Outline Dimensions | 39.15 × 39.23 × 0.52 mm (with CG) |
| Active Area | 36.35 × 36.35 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 ~ 3.3 V |
| Luminance | 350 nits |
| Display Interface | MIPI / QSPI |
| Connection Type | 31-pin connector |
| IC | CO5300 + CST9217 |
| Weight | 5 ± 1 g |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

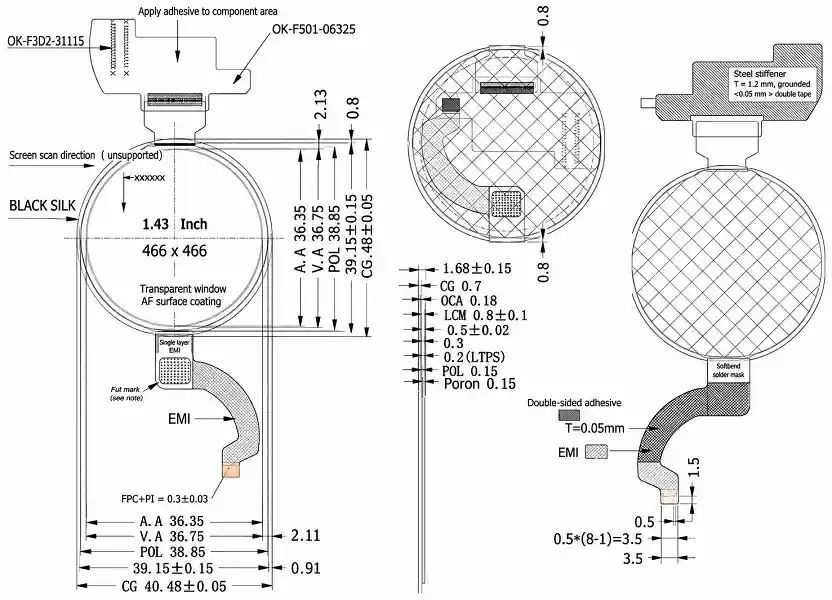

Mechanical Drawing & Interface Definition
Please refer to the model-specific AMOLED specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Gound |
| 2 | TP_INT | the Interrupt Signal For Touchpanel (Level: H/L) |
| 3 | TP_RST | the reset signal For Touchpanel (Level: H/L) |
| 4 | TP_SDA | the SPI Data signal For Touchpanel (Level: H/L) |
| 5 | TP_SCL | the SPI clock signal For Touchpanel (Level: H/L) |
| 6 | TP_VCC(3.3V) | the power supply of Touchpanel |
| 7 | GND | Gound |
| 8 | IOVCC | Power supply for digital interface |
| 9 | VCI | Driver analog power supply |
| 10 | VBAT | The power supply for OLED |
| 11 | VCI_EN | The power supply enble signal |
| 12 | GND | Gound |
| 13 | MTP_PWR | PWR ic control |
| 14 | RESET | Driver reset signal (Level: H/L) |
| 15 | CS | Chip selection pin (Level: H/L) |
| 16 | SDI/RD | The SDI read signal (Level: H/L) |
| 17 | DC | the Data or control signal select signal (Level: H/L) |
| 18 | WR/SCL | the SDI clock signal (Level: H/L) |
| 19 | SPI_D1 | DATA signal (Level: H/L) |
| 20 | SPI_D0 | DATA signal (Level: H/L) |
| 21 | TE | Tearing effect out pin to synchronize MCU to frame writing |
| 22 | GND | Gound |
| 23 | MIPI_D1P | MIPI DATA signal (Level: H/L) |
| 24 | MIPI_D1N | MIPI DATA signal (Level: H/L) |
| 25 | GND | Gound |
| 26 | MIPI_CLKP | MIPI clock signal (Level: H/L) |
| 27 | MIPI_CLKN | MIPI clock signal (Level: H/L) |
| 28 | GND | Gound |
| 29 | MIPI_D0P | MIPI DATA signal (Level: H/L) |
| 30 | MIPI_D0N | MIPI DATA signal (Level: H/L) |
| 31 | GND | Gound |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
