Product Overview

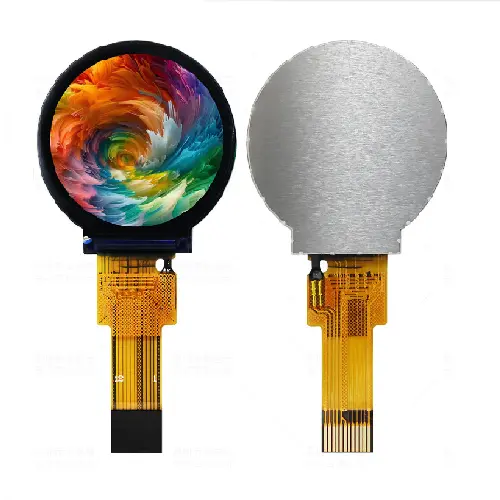

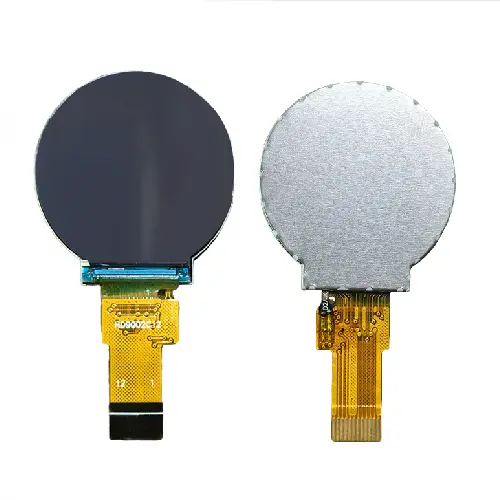

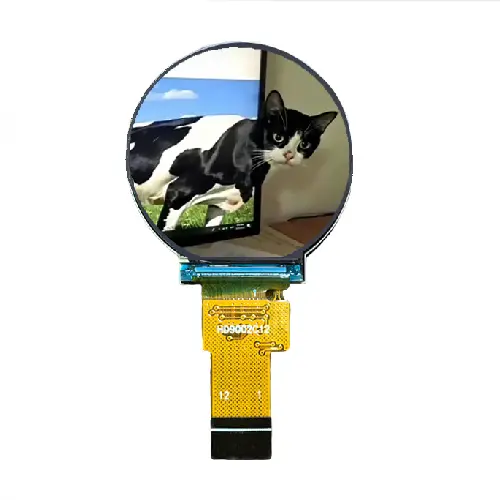

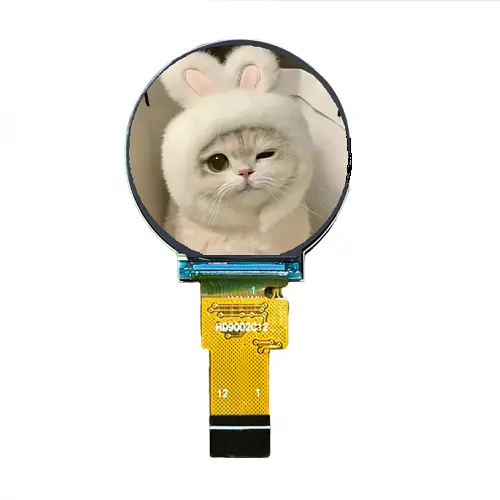

NoseDisplay ND009TRN128128-A01 is a 0.9-inch round IPS TFT LCD module with 128×128-pixel resolution for compact embedded interfaces, smart meters, wearable devices and expressive robot eyes. Its circular screen provides a practical canvas for status indicators, instrument dials and small IoT control displays. The module can be evaluated with STM32, ESP32, Arduino and Raspberry Pi host platforms using suitable interface hardware, firmware, power and backlight circuitry. For OEM projects, NoseDisplay supports display selection, FPC integration, cover lens options and adapter board evaluation to help engineers develop a round display solution that fits their enclosure and application.
NoseDisplay ND009TRN128128-A01 is a 0.9-inch round IPS TFT LCD module with 128×128-pixel resolution for wearable devices, smart meters, robot eyes and compact IoT interfaces. Its circular screen suits status indicators and instrument dials. The module can be evaluated with STM32, ESP32, Arduino and Raspberry Pi using suitable interface hardware, firmware and circuitry. NoseDisplay supports OEM display selection, FPC integration, cover lenses and adapter board evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND009TRN128128-A01 |
| Display Size | 0.9 Inch |
| Resolution | 128×128 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 25.25 × 27.15 × 1.86 mm |
| Active Area | 23.04 × 23.04 mm |
| Parameter | Specification |
| Supply Voltage | 2.80 V |
| Luminance | 450 nits |
| Display Interface | SPI 4-Line |
| Connection Type | 12-pin FPC |
| IC | ST7735 |
| Weight | 5± 1 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

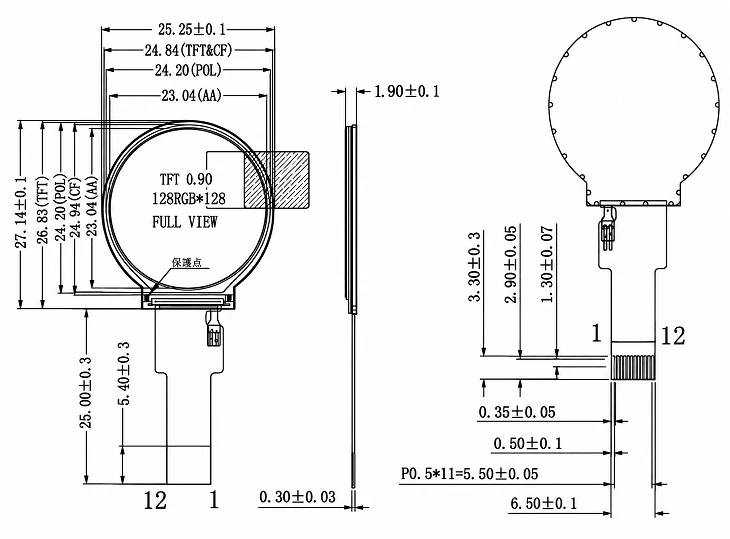

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Power ground |
| 02 | LEDK | LED cathode |
| 03 | LEDA | LED anode |
| 04 | VDD | Analog power supply |
| 05 | GND | Power ground |
| 06 | GND | Power ground |
| 07 | D/C | Display data/command selection in the 4-line serial interface |
| 08 | CS | Chip select: low enables, high disables |
| 09 | SCL | Serial interface clock |
| 10 | SDA | SPI data input/output; data is latched on the rising edge of SCL |
| 11 | RESET | Hardware reset; active low. Apply during initialization. |
| 12 | GND | Power ground |
