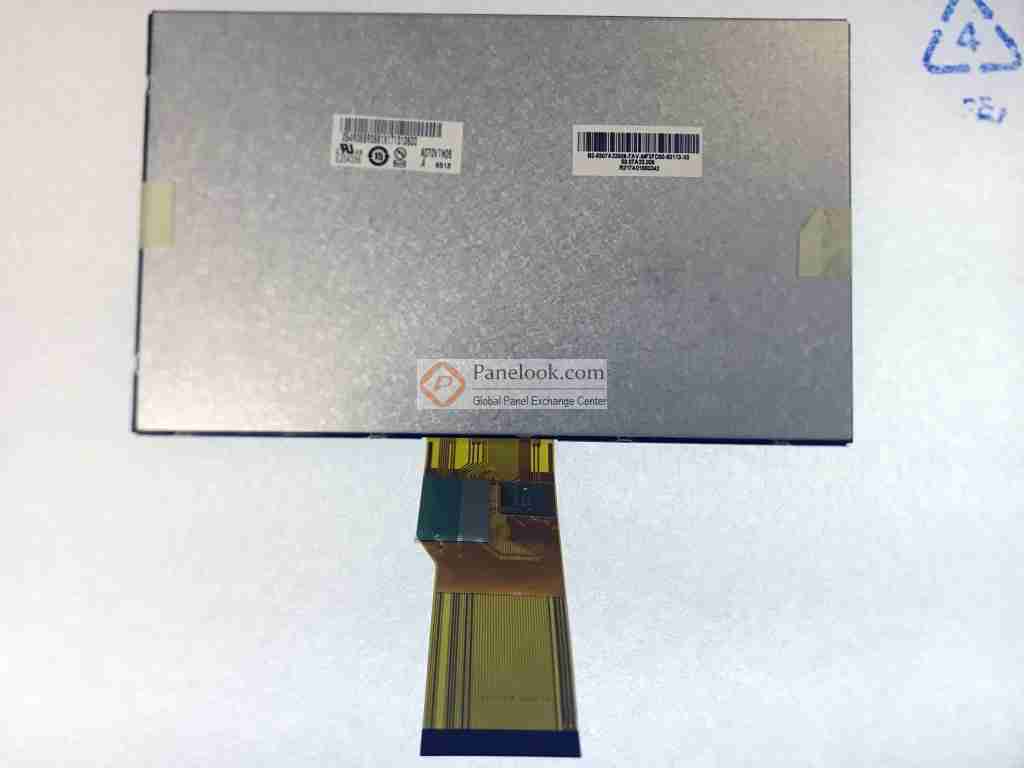

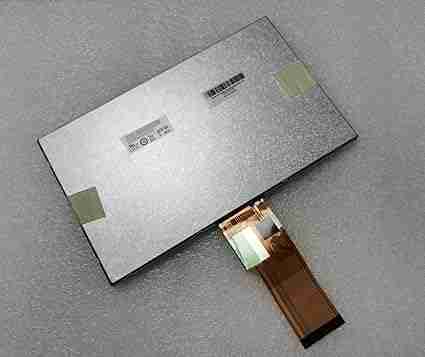

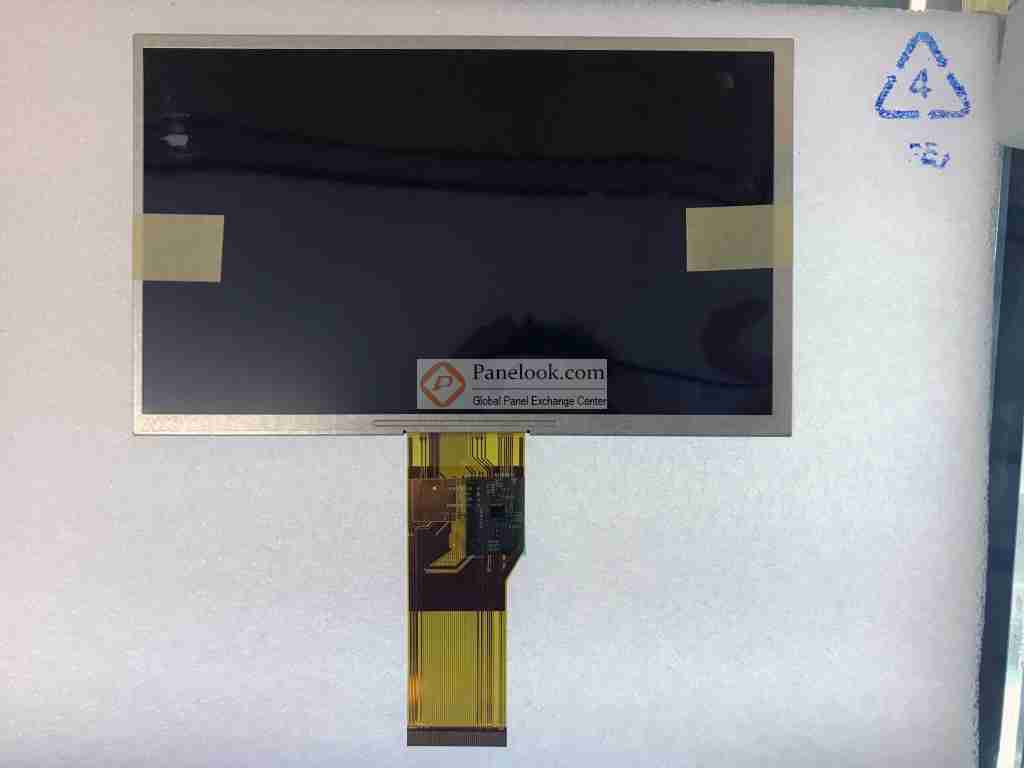

AUO A070VTN06.4 | 7.0 inch a-Si TFT-LCD Display with 800x480 Resolution
The AUO A070VTN06.4 is a 7.0-inch a-Si TFT-LCD display featuring a resolution of 800×480 (WVGA) and a pixel density of 134 PPI, providing clear and detailed images. The display uses an RGB vertical stripe pixel format, delivering vibrant colors with a typical luminance of 500 cd/m², ensuring visibility in various lighting environments. It also boasts a contrast ratio of 500:1, offering vivid color contrasts.
This display operates in TN (Twisted Nematic) mode with a normally white, transmissive design, and is optimized for a best viewing angle at 6 o’clock. It supports a viewing angle of 75°/75°/55°/65° (typ.), allowing for consistent image quality across different viewing positions. The display has a response time of 25ms (typ.), ideal for dynamic and fast-moving content.
The AUO A070VTN06.4 operates with a 3.3V/10.4V/16V/-7V power supply and uses a parallel RGB interface (1 ch, 8-bit) with a 50-pin FPC for easy integration into embedded systems.
Search Keywords:
7.0 inch TFT-LCD, 800×480 WVGA display, AUO display, TN TFT-LCD, RGB vertical stripe display, parallel RGB interface, high luminance display, 500:1 contrast ratio, transmissive TFT, embedded system display.
Specifications
Brand: AUO
Mode P/N: A070VTN06.4
Diagonal Size: 7.0″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA 134PPI
Pixel Format: RGB Vertical Stripe
Active Area: 154.08(W)×85.92(H) mm
Outline Dim.: 164.9(H)×100(V)×5.9(D) mm
Luminance: 500 (Typ.)(cd/m²)
Contrast Ratio: 500 : 1 (Typ.) (TM)
Best View on: 6 o’clock
Response Time: 25 (Typ.)(Tr+Td) ms
Viewing Angle: 75/75/55/65 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Touch Panel: Without

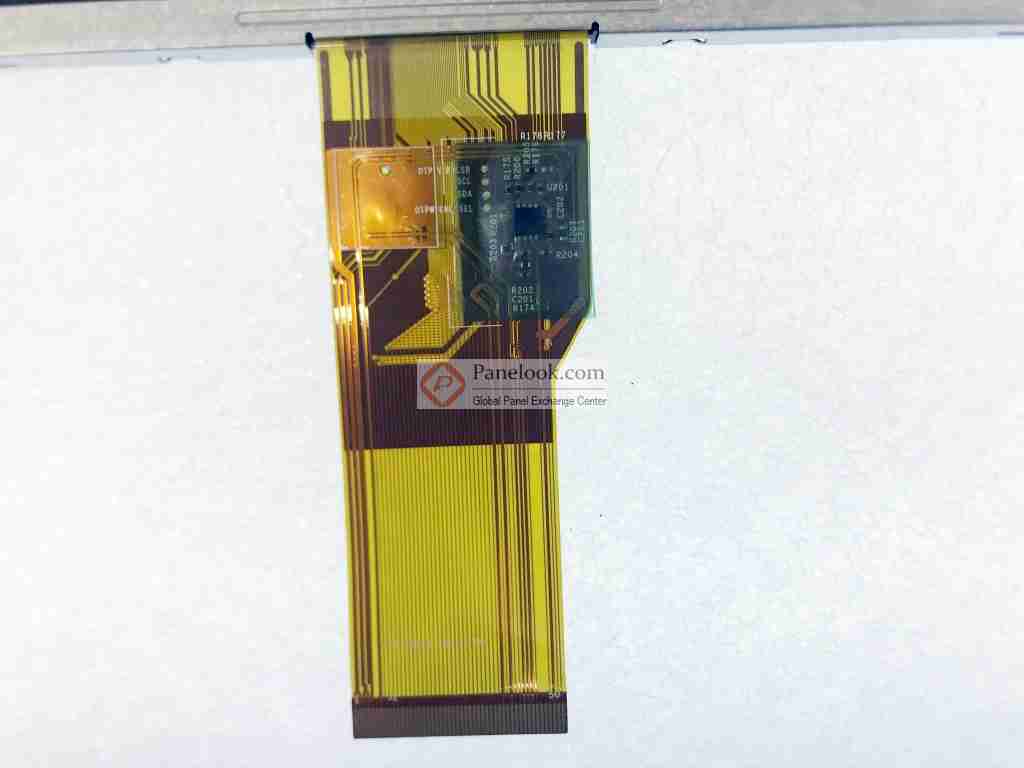

Interface Type: Parallel RGB (1 ch, 8-bit), 50 pins FPC
Power Supply: 3.3/10.4/16/-7V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment: Operating Temperature: -30 ∼ 80 °C ; Storage Temperature: -30 ∼ 80 °C
