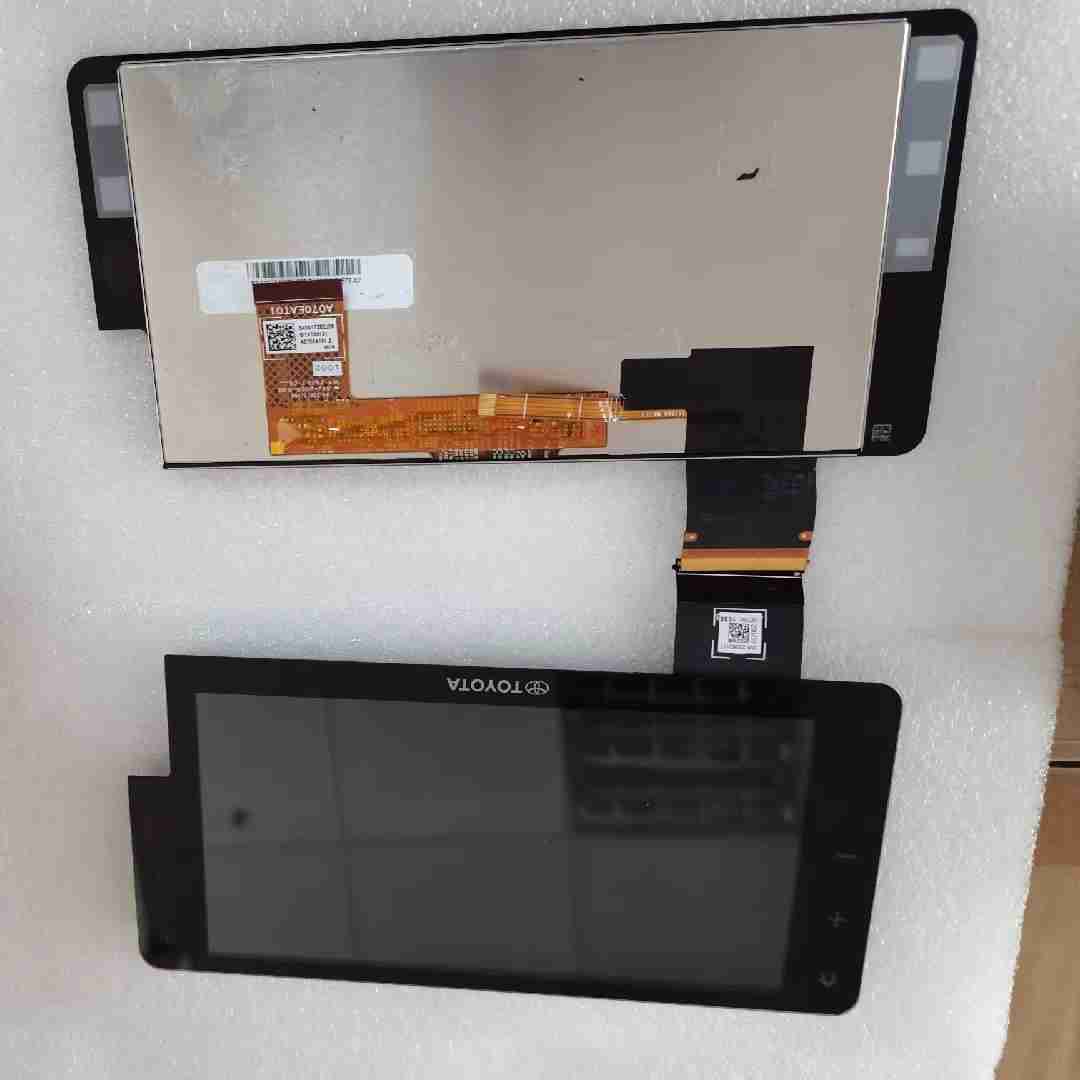

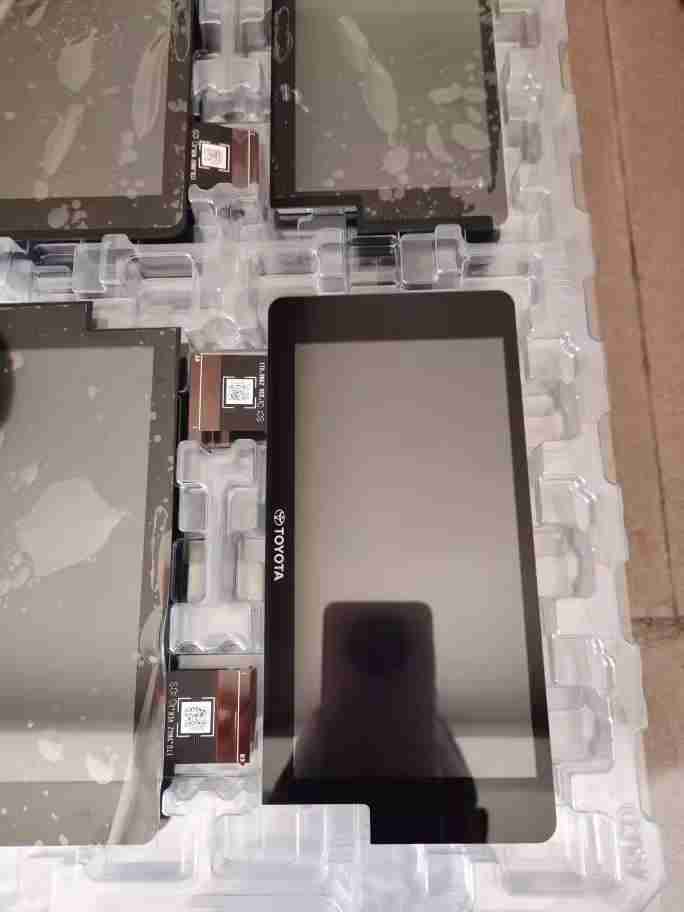

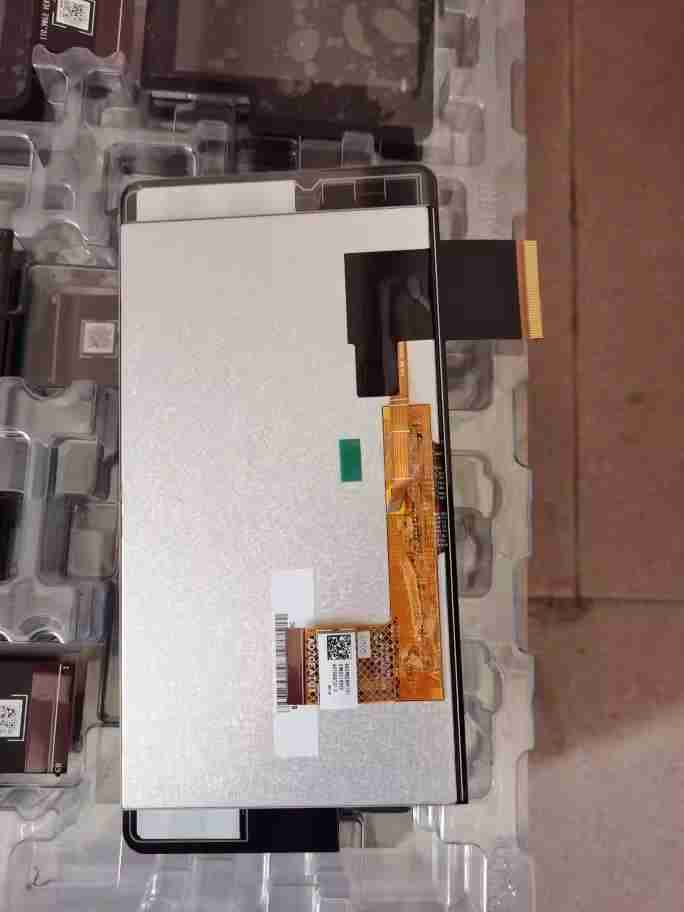

AUO A070EAT01.0 | 6.9 inch a-Si TFT-LCD Display with 1280x720 Resolution and PCAP Touch Panel
The AUO A070EAT01.0 is a 6.9-inch a-Si TFT-LCD display with 1280×720 resolution (WXGA) and a pixel density of 212 PPI, delivering clear, sharp images. Featuring an RGB horizontal stripe pixel format, the display offers vibrant color reproduction and a luminance of 600 cd/m² for visibility even in bright environments. It has a high contrast ratio of 1000:1, ensuring deep blacks and vivid colors.
This panel operates in AHVA (Advanced Hyper-Viewing Angle) mode, providing symmetric viewing angles of 80° in all directions, ensuring consistent image quality. The display includes an anti-fingerprint treatment, reducing smudges and fingerprints. It also features a capacitive touch panel (PCAP), making it suitable for interactive applications.
With a wide operating temperature range of -20°C to 70°C, it is suitable for use in a variety of environmental conditions. The display is powered by a supply voltage of 3.3V/13.2V/20V/-9V and uses an LVDS interface with SPI, making it compatible with various embedded systems and development boards.
Search Keywords:
6.9 inch TFT-LCD, 1280×720 resolution display, AUO display, WXGA TFT-LCD, capacitive touch panel, RGB horizontal stripe display, LVDS SPI interface, anti-fingerprint TFT, high luminance display, wide viewing angle display.
Specifications
Brand: AUO
Mode P/N: A070EAT01.0
Diagonal Size: 6.9″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280×720(RGB), WXGA 212PPI
Pixel Format: RGB Horizontal Stripe
Active Area: 156.48(W)×80.136(H) mm
Outline Dim.: 196.83(W)×96.83(H)×10.5(D)
Treatment: Anti Fingerprint
Luminance: 600 (Typ.)(cd/m²)
Contrast Ratio: 1000 : 1 (Typ.) (TM)
View Direction: Symmetry
Response Time: 20 (Max.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: PCAP

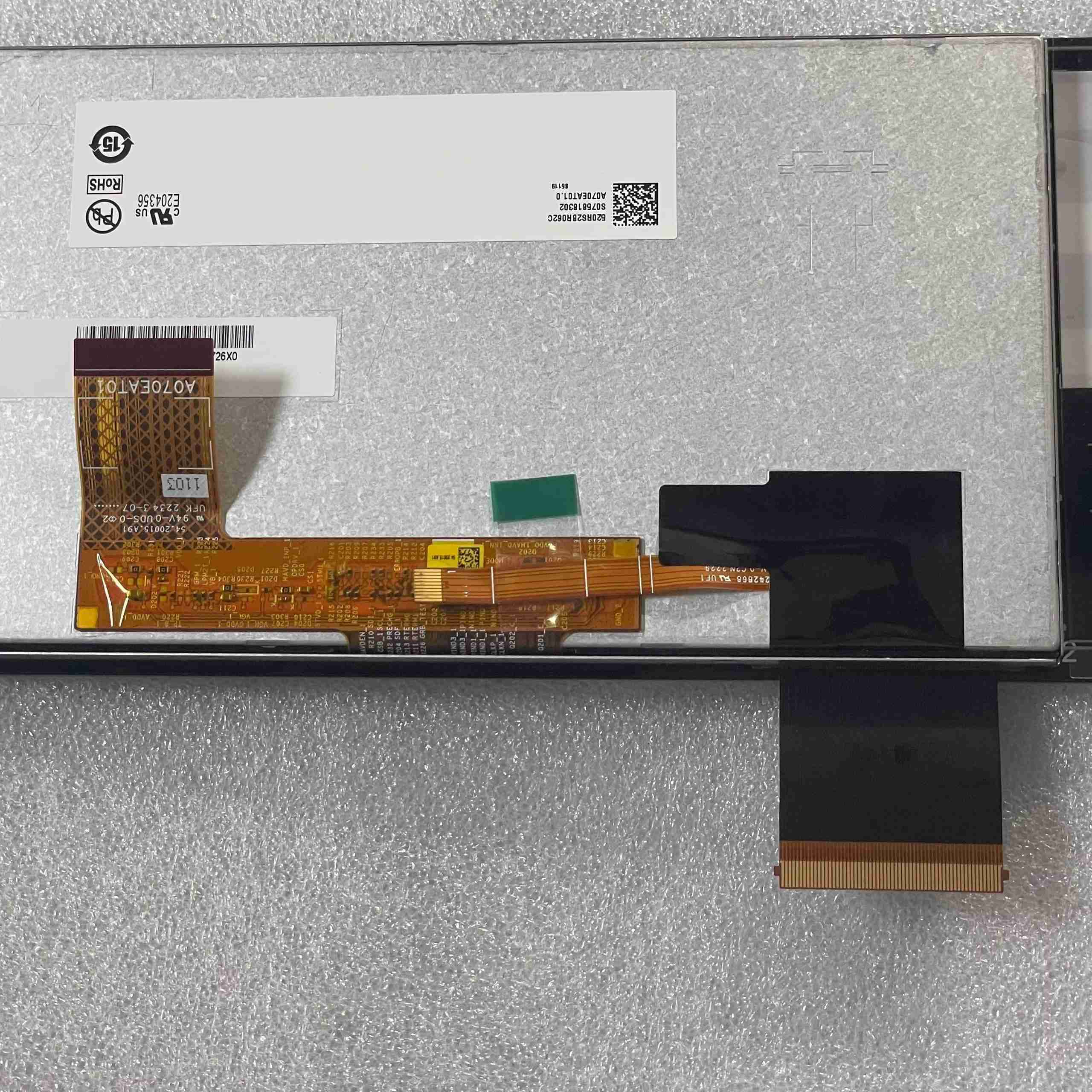

Interface Type: LVDS (1 ch, 8-bit) + SPI 40 pins FPC
Power Supply: 3.3/13.2/20/-9V (Typ.)(VDD/AVDD/VGH/VGL)
Environment: Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²)
