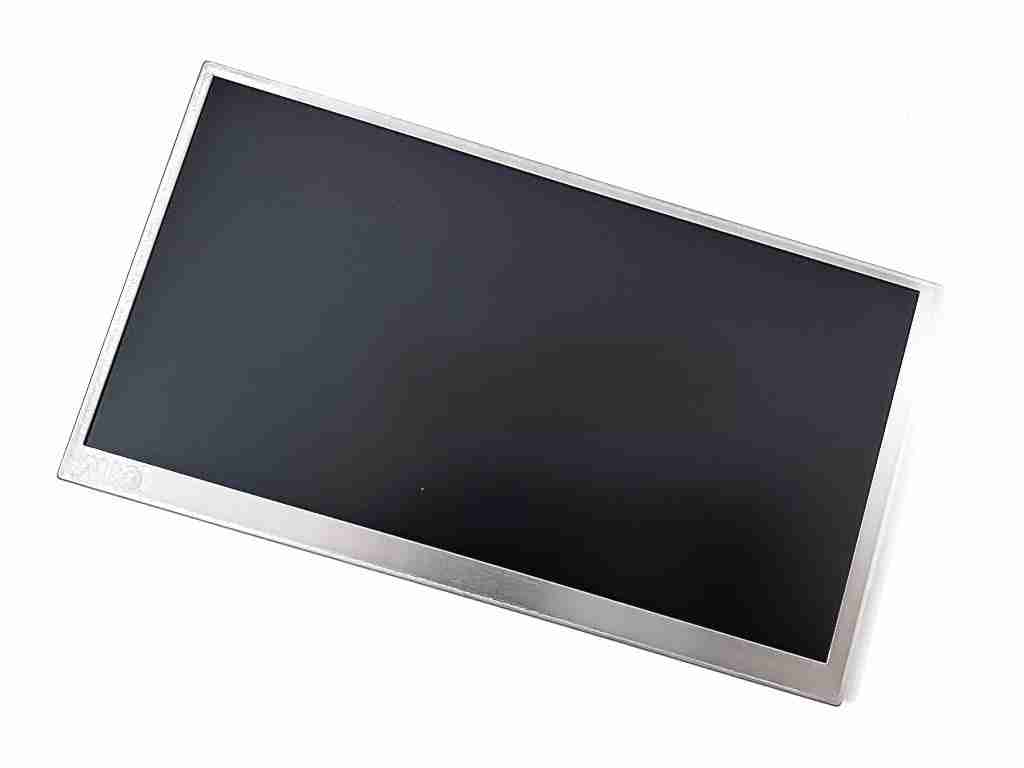

AUO C070EAN03.0 | 6.9 inch a-Si TFT-LCD Display with 1280x720 Resolution
The AUO C070EAN03.0 is a 6.9-inch a-Si TFT-LCD display offering a high resolution of 1280×720 pixels with an RGB Horizontal Stripe, delivering sharp and vibrant visuals at 212 PPI. The display features a high luminance of 750 cd/m², providing clear images even in well-lit environments, with a contrast ratio of 1000:1 for deep blacks and bright whites.
Search Keywords:
6.9 inch TFT-LCD, 1280×720 WXGA display, AUO display, RGB horizontal stripe display, AHVA TFT, high luminance display, LVDS SPI interface, antiglare TFT, wide viewing angle display, embedded system display.
Specifications
Brand: AUO
Mode P/N: C070EAN03.0
Diagonal Size: 6.9″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280×720(RGB), WXGA 212PPI
Pixel Format: RGB Horizontal Stripe
Active Area: 156.48(W)×80.136(H) mm
Outline Dim.: 167(H) × 93(V) mm
Treatment: Antiglare
Luminance: 750 (Typ.)(cd/m²)
Contrast Ratio: 1000 : 1 (Typ.) (TM)
Best View on: Symmetry
Response Time: 25 (Max.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: Without

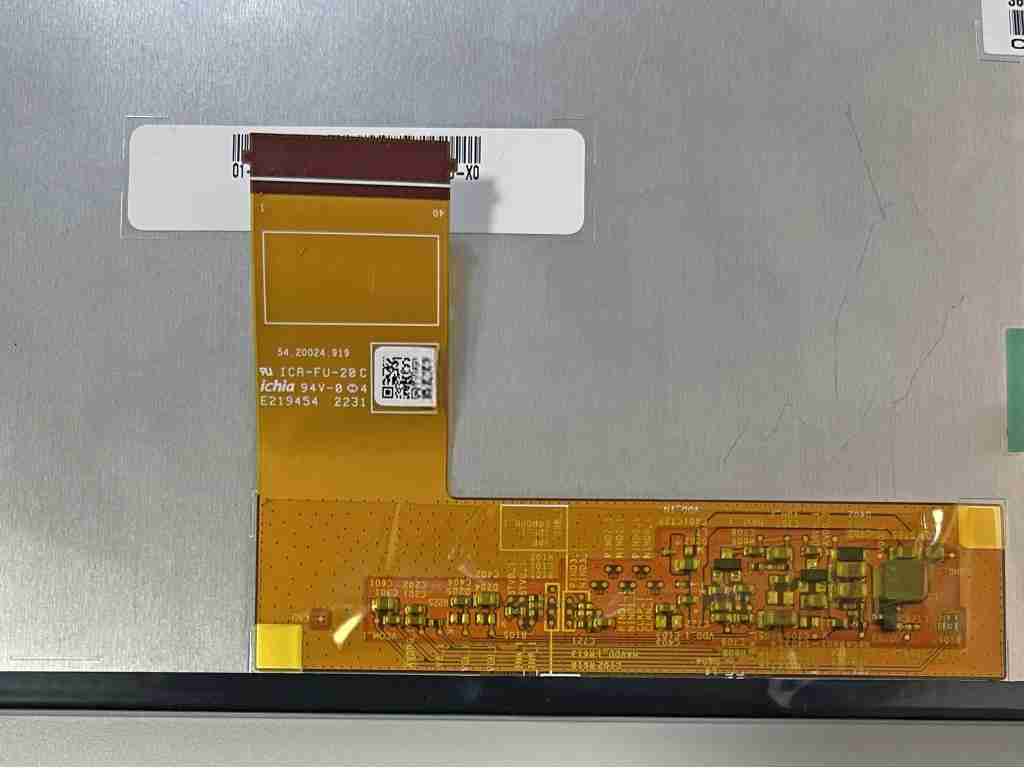

Interface Type: LVDS (1 ch, 8-bit) + SPI, 40 pins FPC
Power Supply: 3.3/13.5/20/-9V (Typ.)(VDD/AVDD/VGH/VGL)
Environment: Operating Temp.: -40 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
