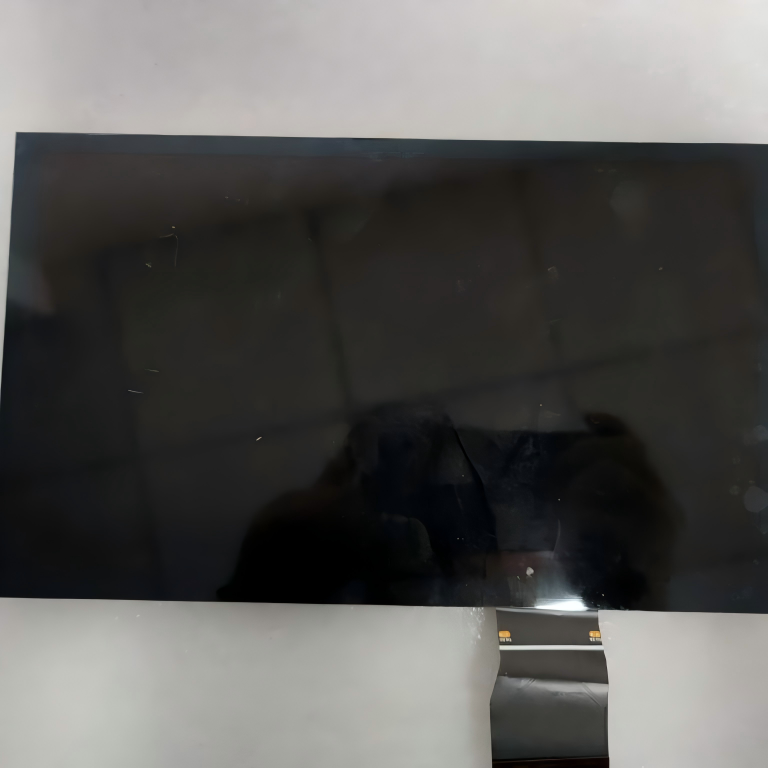

Original AUO C105EAT01.0 10.5" 1280x480 Car Touch Panel
The AUO C105EAT01.0 is a 10.5-inch a-Si TFT-LCD display module with a 1280×480 resolution and a pixel density of 133 PPI. It uses an RGB vertical stripe pixel format, providing sharp, vibrant visuals. Featuring LVDS (1 channel, 8-bit) interface with 50 pins FPC, this display offers fast data transfer for reliable performance in embedded systems. With a brightness of 550 cd/m² and a contrast ratio of 1000:1, the display ensures excellent visibility under various lighting conditions. The anti-fingerprint, anti-glare, and anti-reflection treatments enhance user experience by reducing reflections and smudges. Ideal for rugged environments, it supports operating temperatures from -30°C to 85°C.
Search Keywords:
AUO display, AUO LCD, AUO LCD display, AUO screen display, display AUO LCD, AUO display screen, AUO screen, AUO LCD module, Arduino AUO display, AUO panel, AUO LCD screen, AUO module, AUO LCD display module, LCD module AUO, TFT LCD, AUO module display, AUO panel display, 10.5 inch AUO, LVDS interface display, 1280×480 resolution, AUO TFT display, AUO module, AUO screen 1280×480, AUO display 10.5 inch, AUO module LVDS, thin film transistor display, PCAP touch display.
Specifications
| Brand: AUO Mode P/N: C105EAT01.0 Diagonal Size: 10.5″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1280(RGB)×480 133PPI Pixel Format: RGB Vertical Stripe Active Area: 232.704(W)×130.896(H) mm Outline Dim.: 252.4(W)×152.1(H) mm Treatment: Anti Fingerprint + Antiglare, Antireflection Luminance: 550 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (TM) Best View on: Symmetry Response Time: 20/20 (Typ.)(Tr/Td) ms Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: PCAP Interface Type: LVDS (1 ch, 8-bit), 50 pins FPC Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C |
