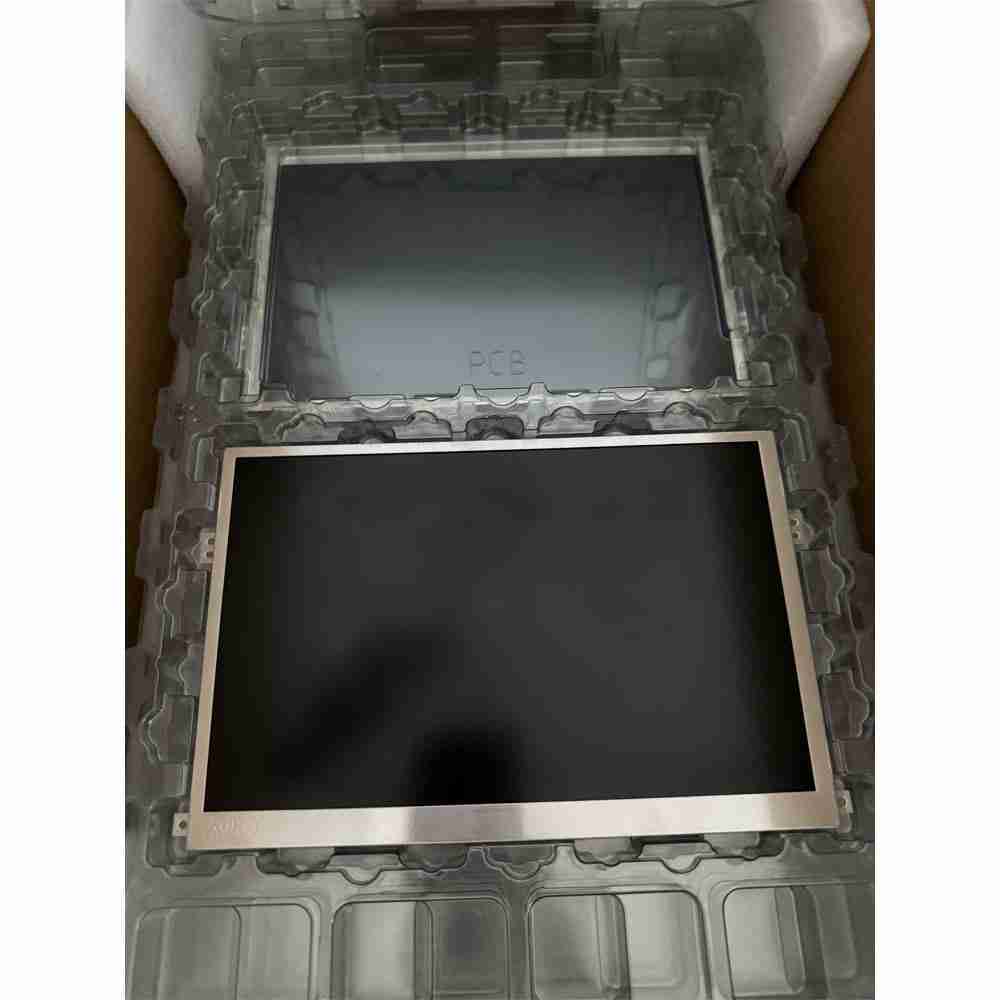

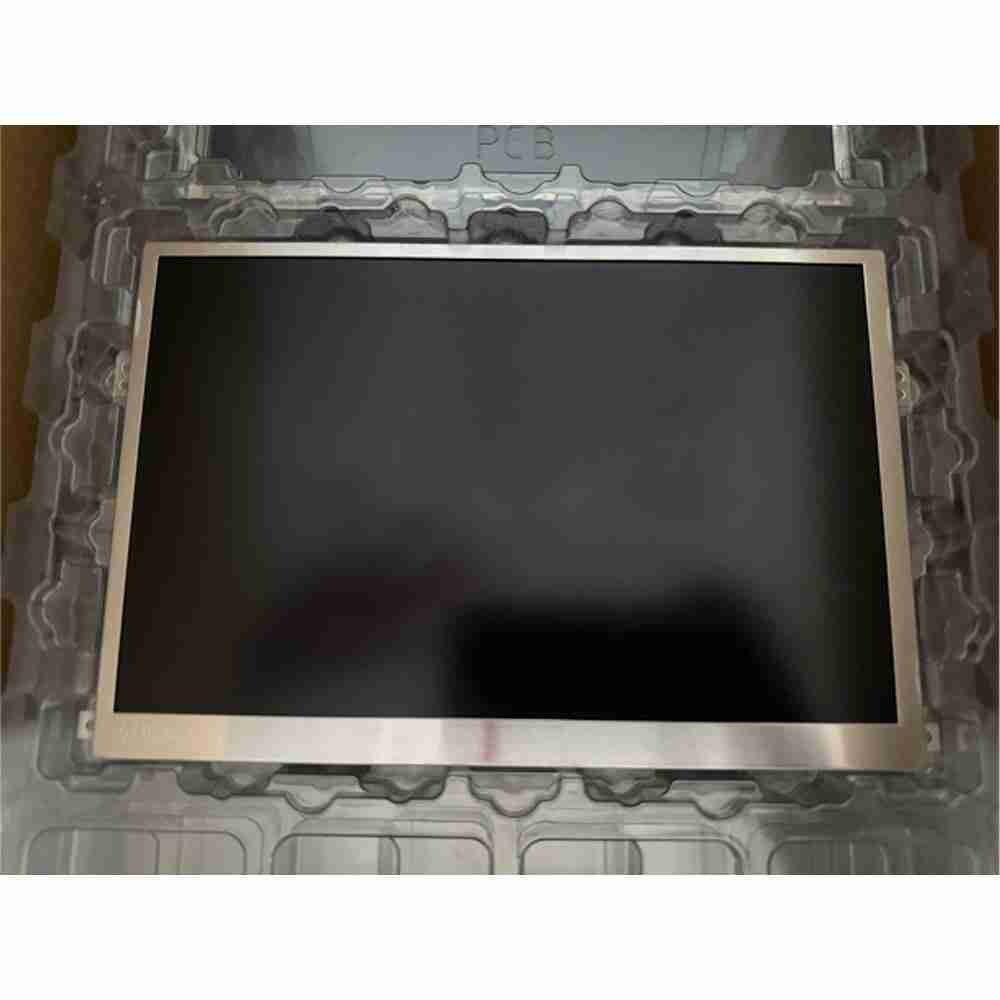

Original AUO C101EAN05.0 10.1" 1280x800 Car Touch Panel
AUO C101EAN05.0 10.1-inch 1280×800 LVDS Industrial TFT-LCD Module featuring 700nits brightness, AHVA wide viewing angles, robust vibration tolerance, stable 3.3V operation, ideal for embedded, medical, and ruggedized display integrations.
Specifications
| Brand: AUO Mode P/N: C101EAN05.0 Diagonal Size: 10.1″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1280(RGB)×800, WXGA 149PPI Pixel Format: RGB Vertical Stripe Active Area: 216.96(W)×135.6(H) mm Luminance: 700 cd/m² (Typ.) Contrast Ratio: 900:1 (Typ.) (TM) Best View on: Symmetry Response Time: 35 (Typ.)(Tr+Td) ms Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: LVDS (1 ch, 8-bit), Connector 40 pins Power Supply: 3.3V (Typ.) Environment: Operating Temp.: Operating Temp.: -20 ∼ 70 °C ; Storage Temp.: -30 ∼ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
