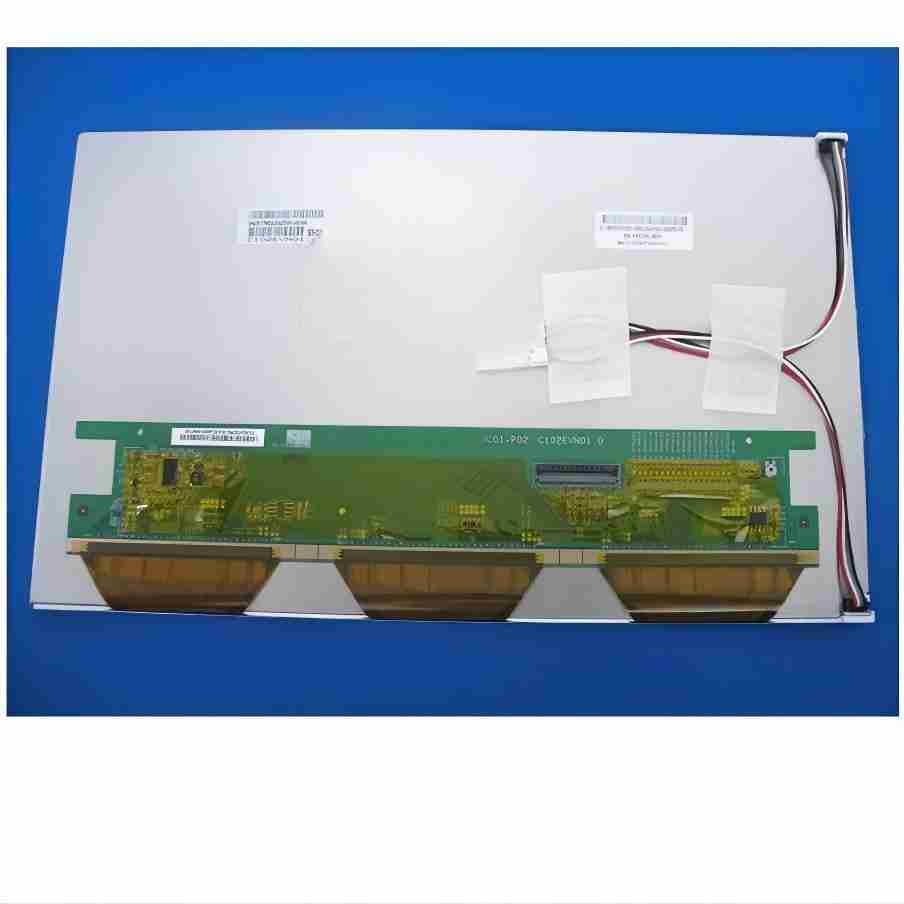

Original AUO C102EVN01.0 10.2" 1280x720 Car Touch Panel
AUO C102EVN01.0 10.2-inch WXGA LCD Display with 1280×720 Resolution, LVDS Interface, designed for industrial and embedded applications. This high-performance display features AHVA technology, offering excellent image clarity with a 1000 cd/m² brightness and a contrast ratio of 2000:1. With anti-glare and anti-reflection treatments, it ensures excellent visibility even in bright or reflective environments. The display has a wide operating temperature range of -30°C to 85°C, making it suitable for demanding industrial environments. The LVDS (2 ch, 8-bit) interface ensures reliable data transmission for seamless system integration.
Search Keywords:
AUO C102EVN01.0, 10.2″ WXGA LCD display, AUO display, AUO LCD module, LVDS interface display, 1280×720 resolution, industrial LCD display, TFT LCD screen, AUO screen, AUO LCD screen, LCD module AUO, thin film transistor display, AUO 10.2″ display, AUO panel, Arduino LCD module, industrial screen AUO, high contrast LCD, AUO display module, TFT-LCD display, AUO display screen, embedded display, durable LCD, anti-glare display, AUO industrial display, high brightness LCD, 1000 cd/m², reliable LCD display, 2000:1 contrast display, WXGA display AUO, embedded systems screen, LVDS interface LCD, TFT panel AUO, SPI interface display.
Specifications
| Brand: AUO Mode P/N: C102EVN01.0 Diagonal Size: 10.2″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1280(RGB)×720, WXGA 143PPI Pixel Format: RGB Vertical Stripe Active Area: 226.56(W)×127.44(H) mm Outline Dim.: 245.76(W)×150.68(H)×11.05(D) mm Treatment: Antiglare, Antireflection Luminance: 1000 cd/m² (Typ.) Contrast Ratio: 2000:1 (Typ.) (TM) Best View on: Symmetry Response Time: 10/15 (Typ.)(Tr/Td) ms Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: LVDS (2 ch, 8-bit), 40 pins Connector Power Supply: 3.3V (Typ.) Environment: Operating Temp.: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
