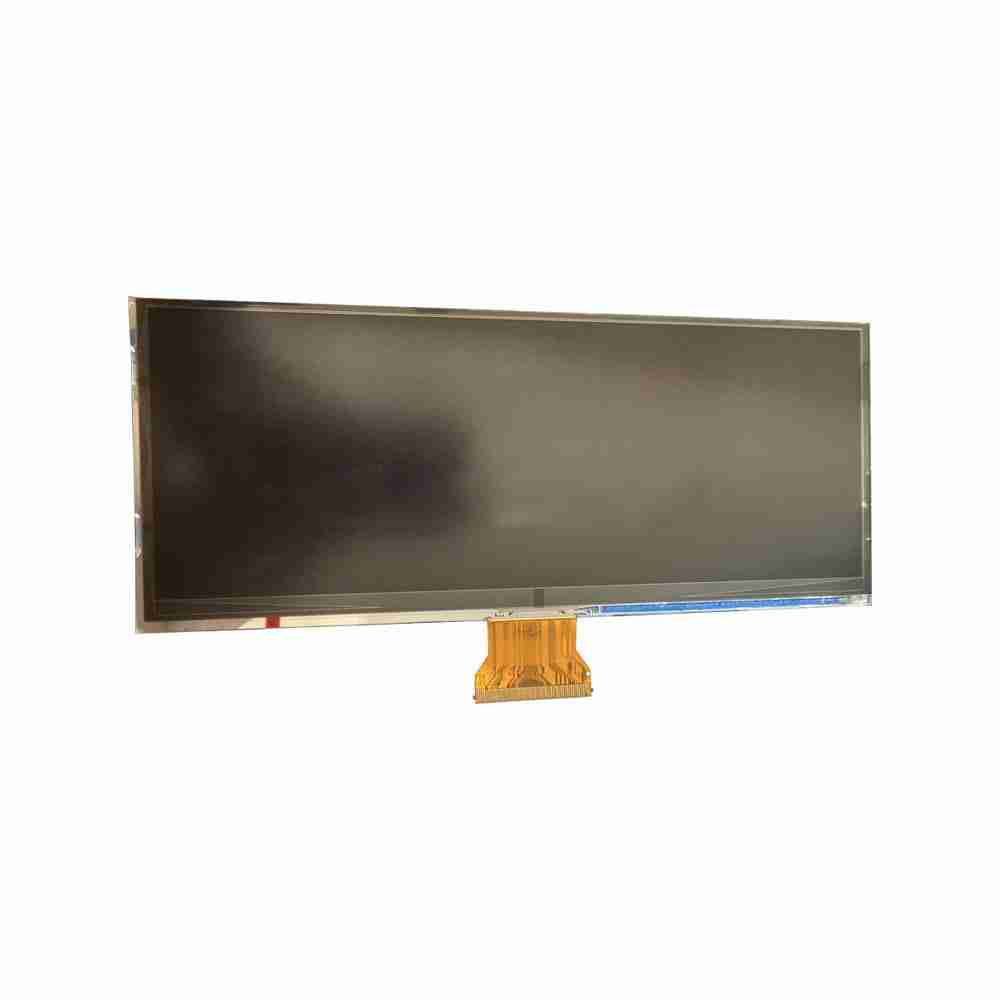

Original AUO C103VAN05.0 10.3" 1280x480 Car Touch Panel
The AUO C103VAN05.0 is a 10.3-inch a-Si TFT-LCD display module with a resolution of 1280×480 pixels and a pixel density of 133 PPI. Featuring RGB vertical stripe pixel format, this display ensures clear and sharp visuals. The module operates with an LVDS (1 channel, 8-bit) interface, providing high-speed data transfer with 60 pins FPC. The display supports a wide operating temperature range of -30°C to 85°C and a storage temperature of -40°C to 95°C, making it ideal for rugged environments. It is designed with a 3H hard coating for enhanced durability and scratch resistance.
Search Keywords:
AUO display, AUO LCD, AUO LCD display, AUO screen display, display AUO LCD, AUO display screen, AUO screen, AUO LCD module, Arduino AUO display, AUO panel, AUO LCD screen, AUO module, AUO LCD display module, LCD module AUO, TFT LCD, AUO module display, AUO panel display, 10.3 inch AUO, LVDS interface display, 1280×480 resolution, AUO TFT display, AUO module, AUO screen 1280×480, AUO display 10.3 inch, AUO module LVDS, thin film transistor display.
Specifications
| Brand: AUO Mode P/N: C103VAN05.0 Diagonal Size: 10.3″ Panel Type: a-Si TFT-LCD, CELL, FOG Resolution: 1280(RGB)×480 133PPI Pixel Format: RGB Vertical Stripe Active Area: 243.84(W)×91.44(H) mm Outline Dim.: 252.85(H)×104.65(V) ×1.68(D) mm Treatment: Hard coating (3H) Luminance: 0 cd/m² Contrast Ratio: 600:1 (Min.) (TM) Best View on: Symmetry Response Time: 40 (Max.)(Tr+Td) ms Viewing Angle: 80/80/80/80 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: LVDS (1 ch, 8-bit), 60 pins FPC Power Supply: 3.3V (Typ.) Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
