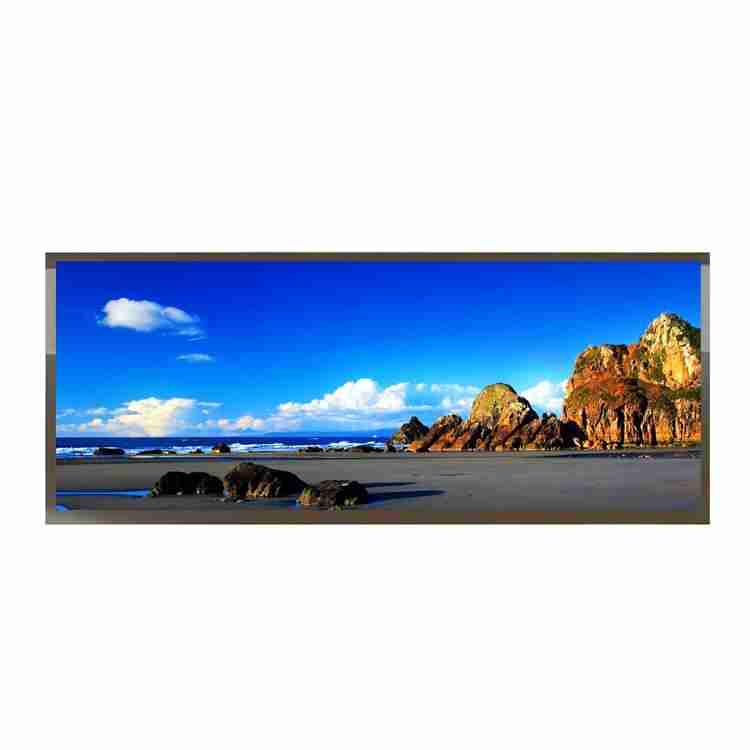

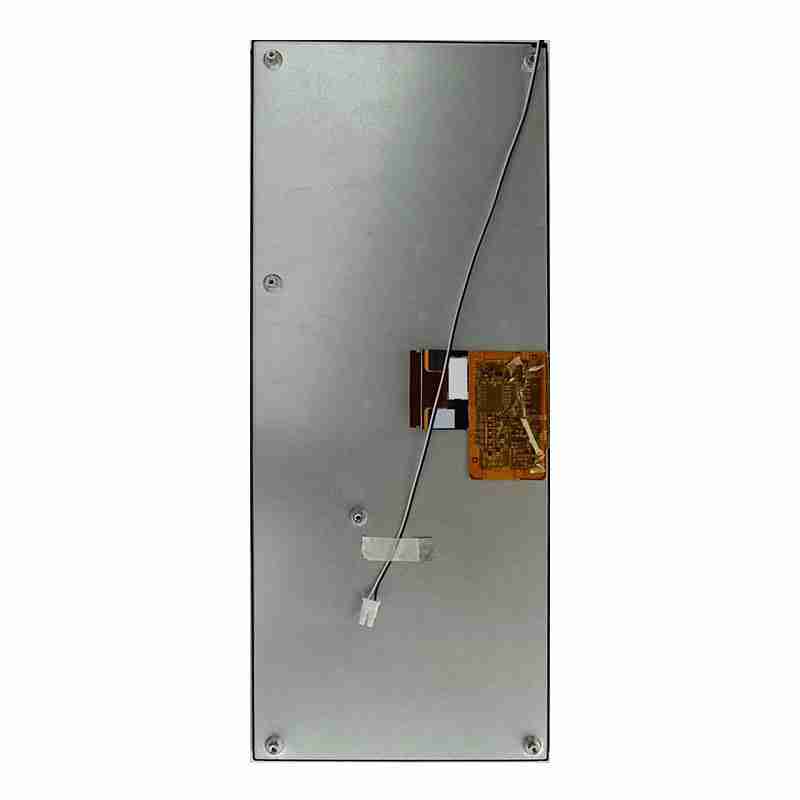

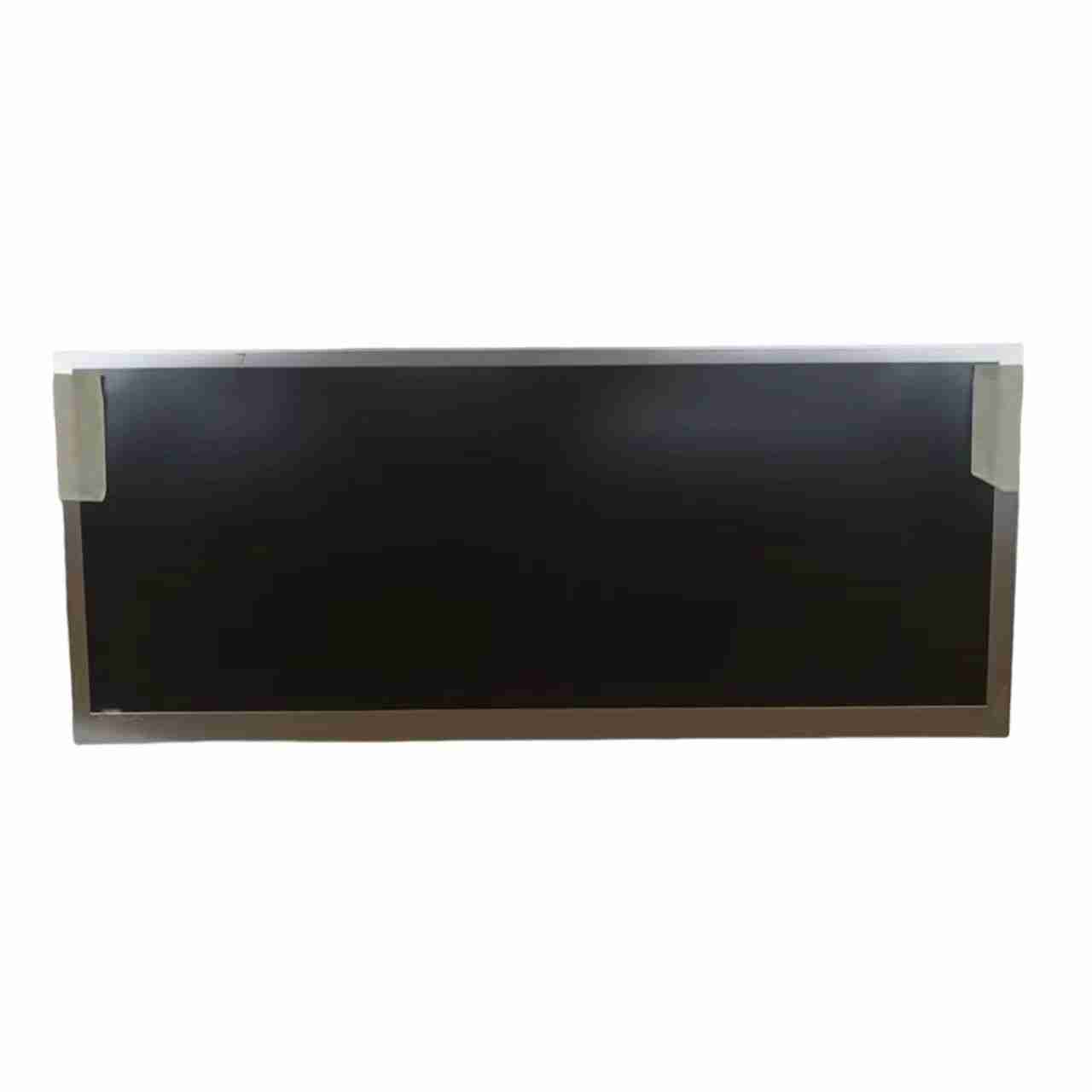

Original AUO C123HAX04.0 12.3" 1920x720 Car Touch Panel
The AUO C123HAX04.0 is a 12.3-inch LTPS TFT-LCD display module with a resolution of 1920×720 pixels, offering a pixel density of 167 PPI. The display features a RGB horizontal stripe pixel format for vivid color reproduction and high clarity. With a contrast ratio of 1400:1 (Typ.), it delivers sharp, bright visuals. This module supports an LVDS (1 ch, 8-bit) + SPI interface with 60 pins FPC for flexible and efficient data transfer. It also comes with in-cell touch support (I²C), making it ideal for interactive applications. The panel operates within a temperature range of -30°C to 85°C, suitable for industrial environments.
Specifications
| Brand: AUO Mode P/N: C123HAX04.0 Diagonal Size: 12.3″ Panel Type: LTPS TFT-LCD, CELL, FOB Resolution: 1920(RGB)×720 167PPI Pixel Format: RGB Horizontal Stripe Active Area: 292.032(W)×109.512(H) mm Outline Dim.: 296.032(W)×118.844(H) ×1.03(D) mm Treatment: Hard coating Luminance: 0 cd/m² Contrast Ratio: 1400:1 (Typ.) (TM) Best View on: Symmetry Response Time: 25 (Max.)(Tr+Td) Viewing Angle: 85/85/85/85 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: In-Cell Touch, I²C Interface Type: LVDS (1 ch, 8-bit) + SPI, 60 pins FPC Power Supply: 3.3/7/-7/14/-13V (Typ.) (VCI/AVDD/AVEE/VGH/VGL) Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C |
