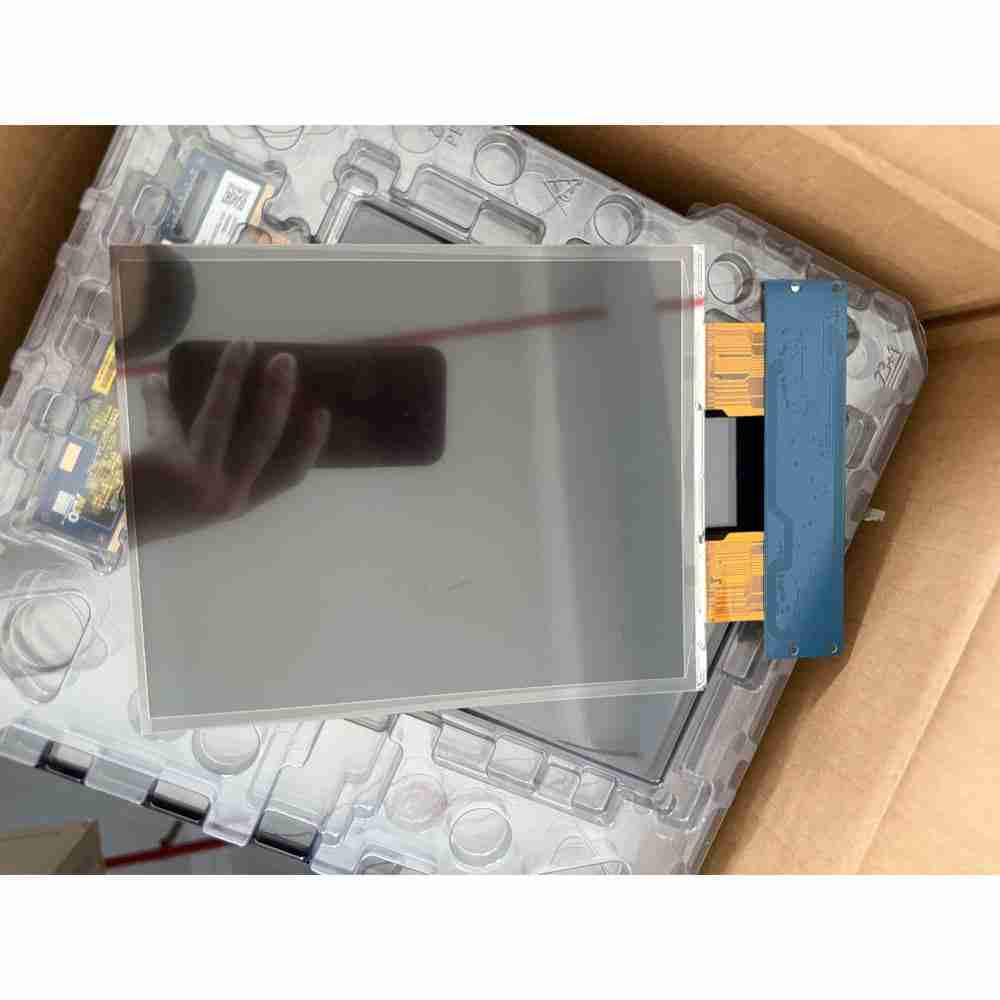

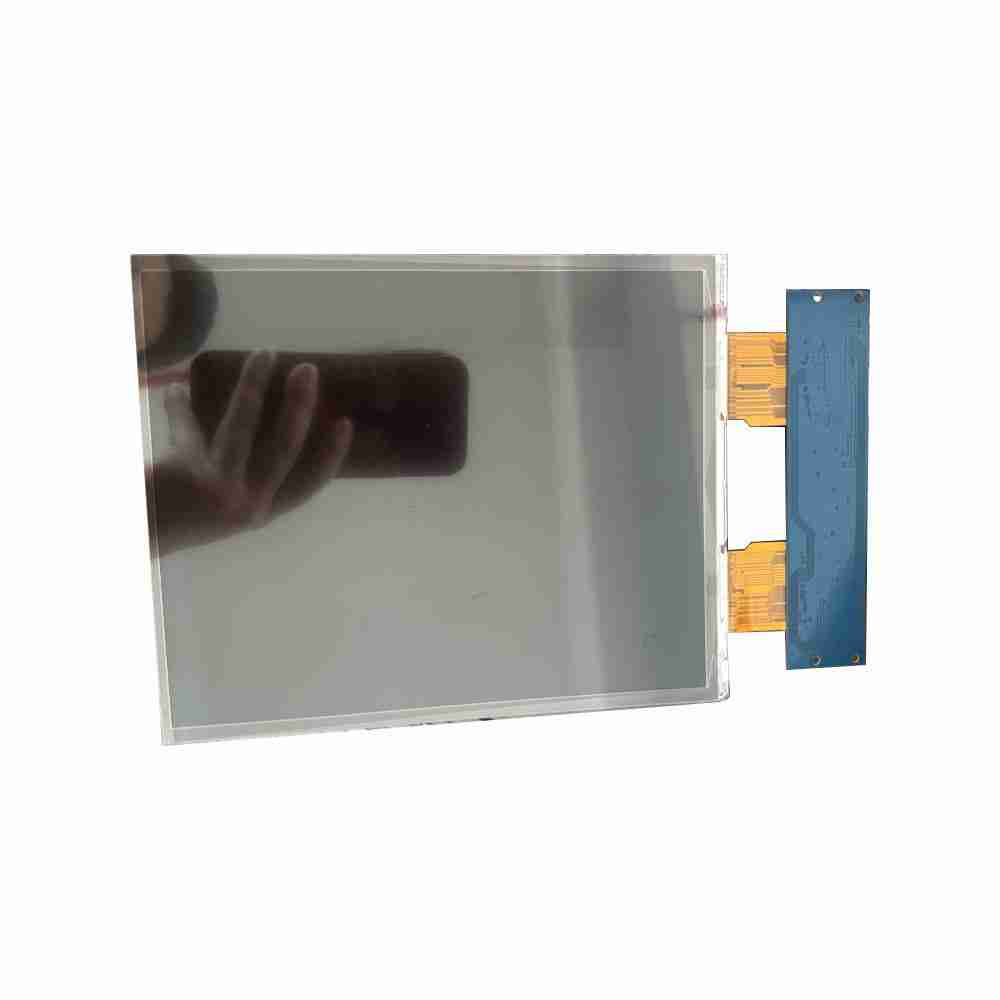

Original AUO C125UAN01.0 12.5" 2400x900 Car Touch Panel
The AUO C125UAN01.0 is a 12.5-inch LTPS TFT-LCD display featuring a high resolution of 2400×900 pixels and 205 PPI. It offers vibrant, detailed visuals with a contrast ratio of 1200:1 and a wide viewing angle of 70/70/70/70. The panel operates in AHVA mode, providing excellent image quality and fast response times of 20ms. The display uses an LVDS interface (1 ch, 8-bit) and SPI, offering flexible connectivity for industrial and embedded applications. Designed for harsh environments, it has a wide operating temperature range of -40°C to 85°C and is built with hard coating treatment for durability.
Specifications
| Brand: AUO Mode P/N: C125UAN01.0 Diagonal Size: 12.5″ Panel Type: LTPS TFT-LCD, CELL, FOG Resolution: 2400(RGB)×900 205PPI Pixel Format: RGB Vertical Stripe Active Area: 316.8(W)×11.88(H) mm Outline Dim.: 324.8(W)×21.22(H) ×0.73(D) mm Treatment: Hard coating Luminance: 0 cd/m² Contrast Ratio: 1200:1 (Min.) (TM) Best View on: Symmetry Response Time:20 (Max.)(Tr+Td) Viewing Angle: 70/70/70/70 (Min.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: LVDS (1 ch, 8-bit) + SPI, 40 pins FPC Input Voltage: 3.3V (Typ.) Environment: Operating Temp.: -40 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
