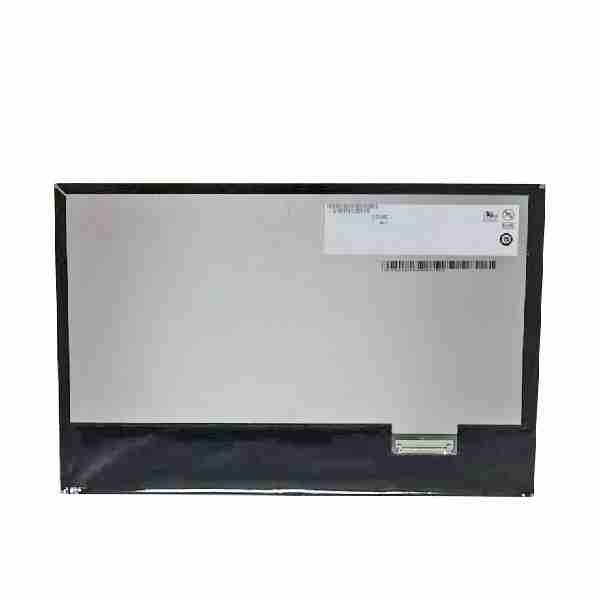

Original AUO G101EAN02.1 10.1" 1280x800 Car Touch Panel
The AUO G101EAN02.1 is a high-performance 10.1″ a-Si TFT-LCD designed for a wide range of applications. Featuring a WXGA resolution of 1280×800 pixels and a pixel density of 149 PPI, this display ensures sharp and vibrant visuals. The RGB vertical stripe pixel arrangement provides excellent color reproduction. With a high luminance of 400 cd/m² and a contrast ratio of 800:1, it offers clear visibility in various lighting conditions. The display operates in AHVA mode (Normally Black, Transmissive) and uses an LVDS interface (1 ch, 8-bit). Ideal for embedded systems, the module is energy-efficient and reliable.
Specifications
| Brand: AUO Mode P/N: G101EAN02.1 Diagonal Size: 10.1″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1280(RGB)×800, WXGA 149PPI Pixel Format: RGB Vertical Stripe Active Area: 216.96(W)×135.6(H) mm Outline Dim.: 227.72(W)×147.8(H) ×4.8(D) mm Treatment: Hard coating Luminance: 400 cd/m² (Typ.) Contrast Ratio: 800:1 (Typ.) (TM) Best View on: Symmetry Response Time: 29 (Typ.)(Tr+Td) ms Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: LVDS (1 ch, 8-bit), 40 pins Connector Input Voltage: 3.3V (Typ.) Environment: Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
