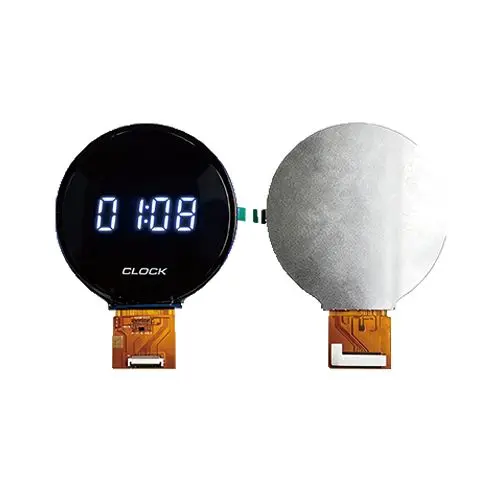

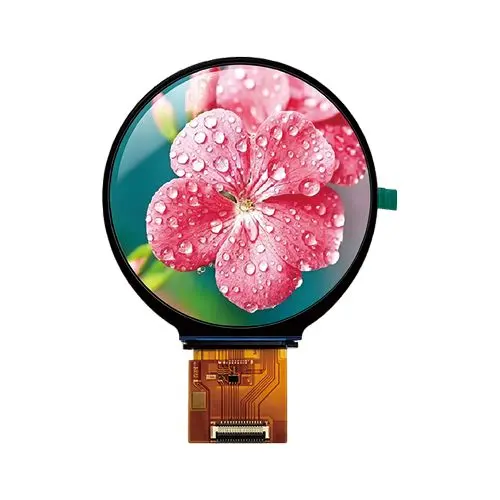

Product Overview

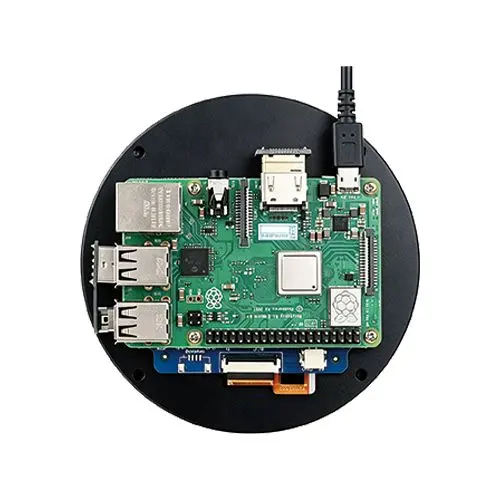

NoseDisplay ND040TRN720720-A01 is a round IPS TFT LCD module for smart appliance controls, instrument dashboards, home automation interfaces and embedded IoT equipment. Its circular screen suits graphical dials, menu navigation, sensor readings and operating status displays in custom OEM products. Engineers should confirm the model-specific display interface and pinout before selecting host hardware, firmware, power and backlight circuitry. STM32, ESP32, Arduino and Raspberry Pi projects require a driver solution matched to the confirmed configuration. NoseDisplay supports FPC integration, cover lens options and adapter board evaluation for circular LCD designs.
NoseDisplay ND040TRN720720-A01 is a round IPS TFT LCD module for appliance controls, instrument dashboards and embedded IoT interfaces. Its circular screen suits graphical dials and sensor readings. Confirm the display interface and pinout before choosing host hardware and firmware; STM32, ESP32, Arduino and Raspberry Pi projects require a matched driver solution. NoseDisplay supports OEM FPC integration, cover lenses and adapter board evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND040TRN720720-A01 |
| Display Size | 4.0 Inch |
| Resolution | 720×720 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 105.60 × 109.87 × 2.20 mm |
| Active Area | 101.52 × 101.52 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 V |
| Luminance | — |
| Display Interface | — |
| Connection Type | 30-pin connector |
| IC | ST7703 |
| Weight | — |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

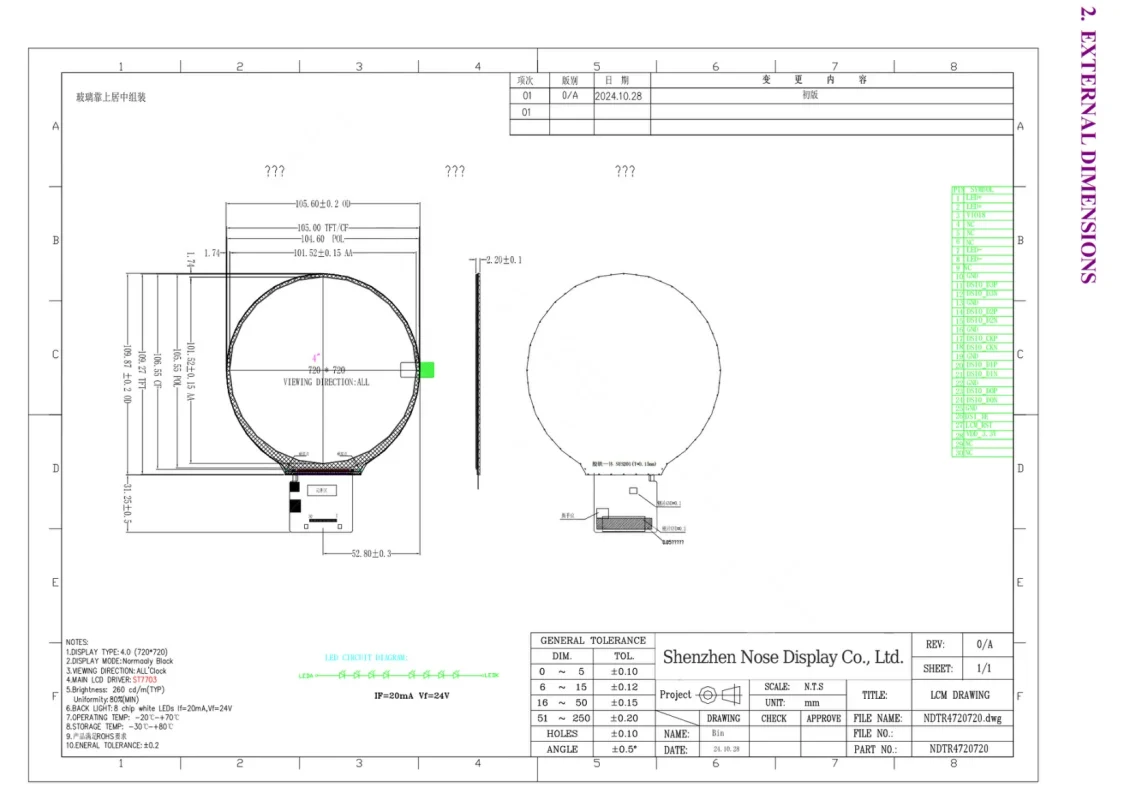

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1-2 | LEDA | LED power anode |
| 3 | IOVCC | Power supply for digital interface |
| 4-6 | NC | NC |
| 7-8 | LEDK | LED power cathode |
| 9 | NC | NC |
| 10 | GND | Ground |
| 11 | D3P | MIPI DSI differential data pair. |
| 12 | D3N | MIPI DSI differential data pair. |
| 13 | GND | Ground |
| 14 | D2P | MIPI DSI differential data pair. |
| 15 | D2N | MIPI DSI differential data pair. |
| 16 | GND | Ground |
| 17 | CLKP | MIPI DSI differential clock pair. |
| 18 | CLKN | MIPI DSI differential clock pair. |
| 19 | GND | Ground |
| 20 | D1P | MIPI DSI differential data pair. |
| 21 | D1N | MIPI DSI differential data pair. |
| 22 | GND | Ground |
| 23 | D0P | MIPI DSI differential data pair. |
| 24 | D0N | MIPI DSI differential data pair. |
| 25 | GND | Ground |
| 26 | TE | TE.PIN |
| 27 | RESET | RESET.PIN |
| 28 | VCC | Power setting |
| 29-30 | NC | NC |
