Product Overview

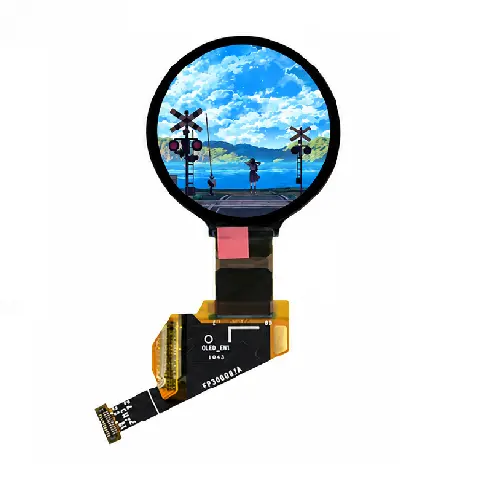

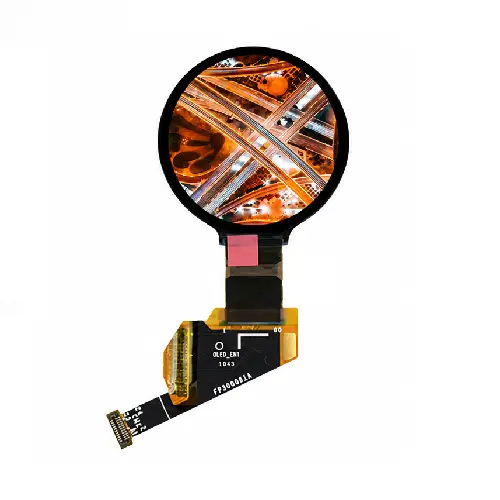

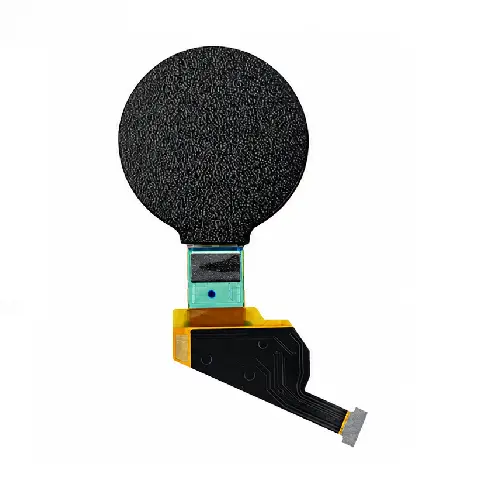

NoseDisplay ND014AMN400400-A01 is a round AMOLED display module for wearable interfaces, compact instruments, smart home controls and embedded IoT devices. Its self-emissive circular OLED screen suits graphical dials, menu navigation, sensor readings and status indicators in custom OEM products. The RM69080 controller and MIPI interface require suitable host display hardware, firmware and AMOLED power circuitry. Engineers evaluating STM32, ESP32, Arduino or Raspberry Pi projects should select an appropriate adapter or driver board for the required interface. NoseDisplay supports FPC integration, cover lens options and display integration evaluation for circular OLED designs.
NoseDisplay ND014AMN400400-A01 is a round AMOLED module for wearable interfaces, compact instruments and embedded IoT devices. Its self-emissive circular OLED screen suits graphical dials and status indicators. The RM69080 and MIPI interface require suitable host hardware, firmware and AMOLED power circuitry; STM32, ESP32, Arduino and Raspberry Pi projects need an appropriate driver solution. NoseDisplay supports OEM FPC, cover lens and integration evaluation.

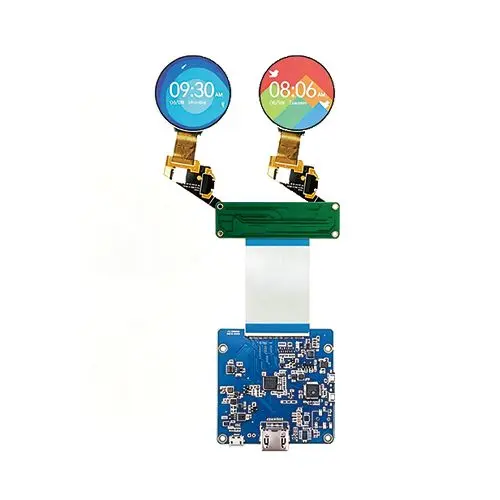

Optional driver board: US$12 extra; not included in the module sample price.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND014AMN400400-A01 |
| Display Size | 1.39 Inch |
| Resolution | 400×400 pixels |
| Display Type | AMOLED |
| Display Mode | Self-emissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 38.60 (V) × 40.50 (W) × 0.70 (T) mm |
| Active Area | Ø35.41 mm |
| Parameter | Specification |
| Supply Voltage | 1.8V(Digital), 2.8V(Analog) |
| Luminance | 350 nits |
| Display Interface | MIPI |
| Connection Type | 24-pin (Molex 5042482410) |
| IC | RM69080 |
| Weight | 4 ± 1 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

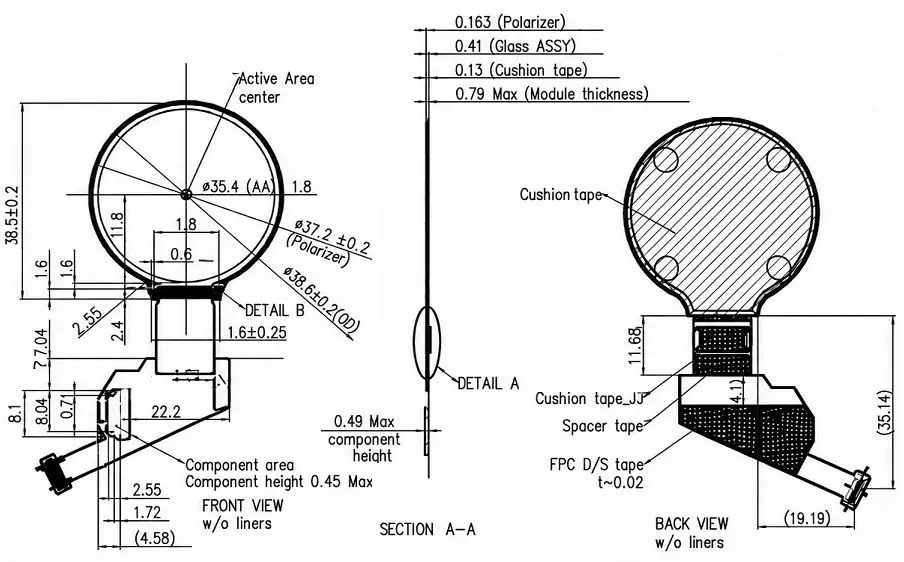

Mechanical Drawing & Interface Definition
Please refer to the model-specific AMOLED specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | XRES | Driver reset signal |
| 3 | DSI_D0N | MIPI DSI data lane 0 negative signal |
| 4 | SWIRE | SWIRE signal for power IC control |
| 5 | DSI_D0P | MIPI DSI data lane 0 positive signal |
| 6 | MTP | MTP signal |
| 7 | GND | Ground |
| 8 | TE | Tearing effect output for frame synchronization |
| 9 | DSI_CLKN | MIPI DSI clock negative signal |
| 10 | GND_(D0) | Ground (D0) |
| 11 | DSI_CLKP | MIPI DSI clock positive signal |
| 12 | GND_(D1) | Ground (D1) |
| 13 | GND | Ground |
| 14 | GND | Ground |
| 15 | VDDIO | Power supply for digital interface |
| 16 | VCI | Driver analog power supply |
| 17 | GND | Ground |
| 18 | GND | Ground |
| 19 | ELVSS | AMOLED negative power supply |
| 20 | ELVDD | AMOLED positive power supply |
| 21 | ELVSS | AMOLED negative power supply |
| 22 | ELVDD | AMOLED positive power supply |
| 23 | ELVSS | AMOLED negative power supply |
| 24 | ELVDD | AMOLED positive power supply |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
Typical Applications & Customization
NoseDisplay supports round TFT LCD and rotary knob display projects for smart controls, appliances, instruments, robotics and embedded IoT devices. OEM engineering support covers display selection, circular UI layouts, mechanical design, touch and cover lenses, FPC connections and driver board integration.
Explore round LCD and rotary knob display applications, with OEM support for display selection, circular UI layouts, housings, cover lenses and driver boards.
