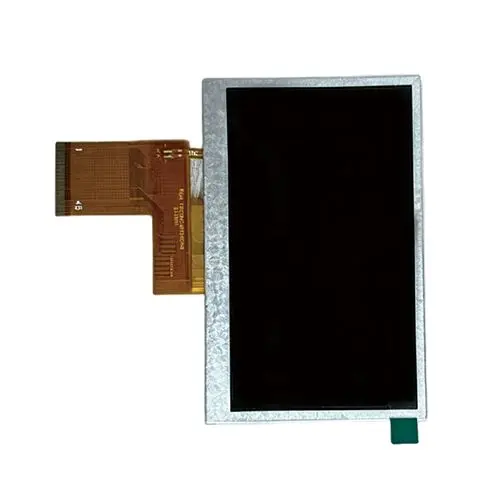

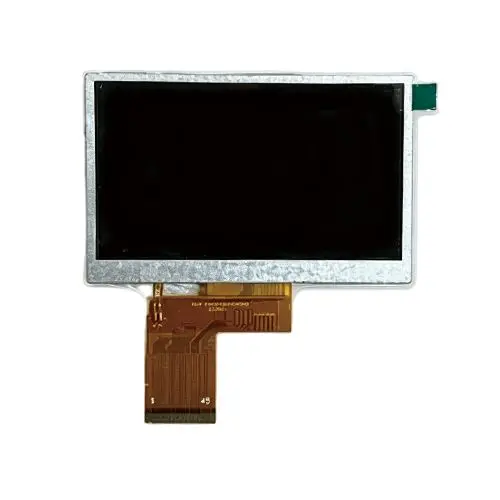

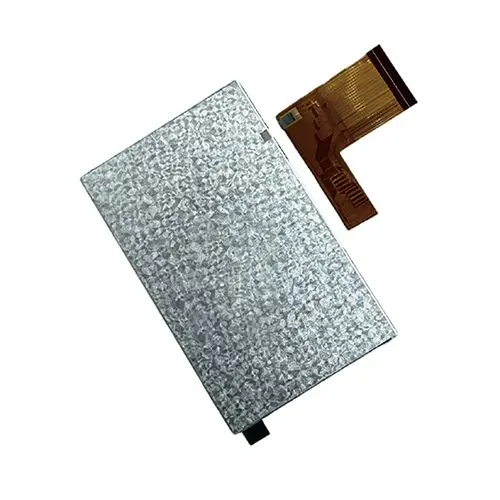

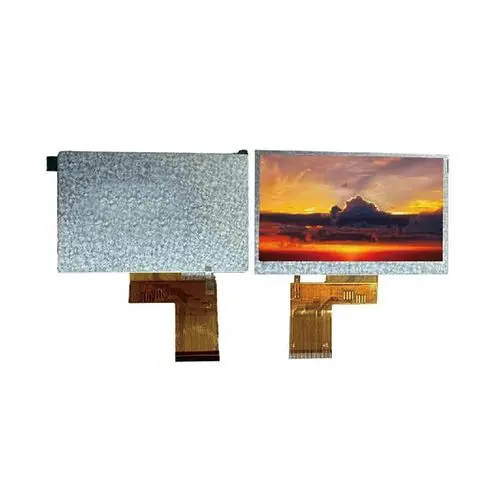

Product Overview
NoseDisplay ND043TSN480272-A01 is a TN TFT LCD module for industrial operator panels, equipment status displays and embedded control interfaces. Its landscape format supports compact dashboards, graphical menus and instrument readouts, with an RGB interface for integration with a compatible host controller. Touch integration can be evaluated separately where the project requires an interactive interface. Review the model-specific mechanical drawing, power requirements and pin assignment before finalizing the enclosure and connector. Sample testing should confirm viewing direction, readability and communication compatibility under the intended installation conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND043TSN480272-A01 |
| Display Size | 4.3 Inch |
| Resolution | 480×272 pixels |
| Display Type | TN TFT LCD |
| Display Mode | Normally White |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 105.40 × 67.10 × 3.05 mm |
| Active Area | 95.04 × 53.86 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V |
| Luminance | 280 nits |
| Display Interface | RGB |
| Connection Type | 40 pin connector |
| IC | NV3047 |
| Weight | -- |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

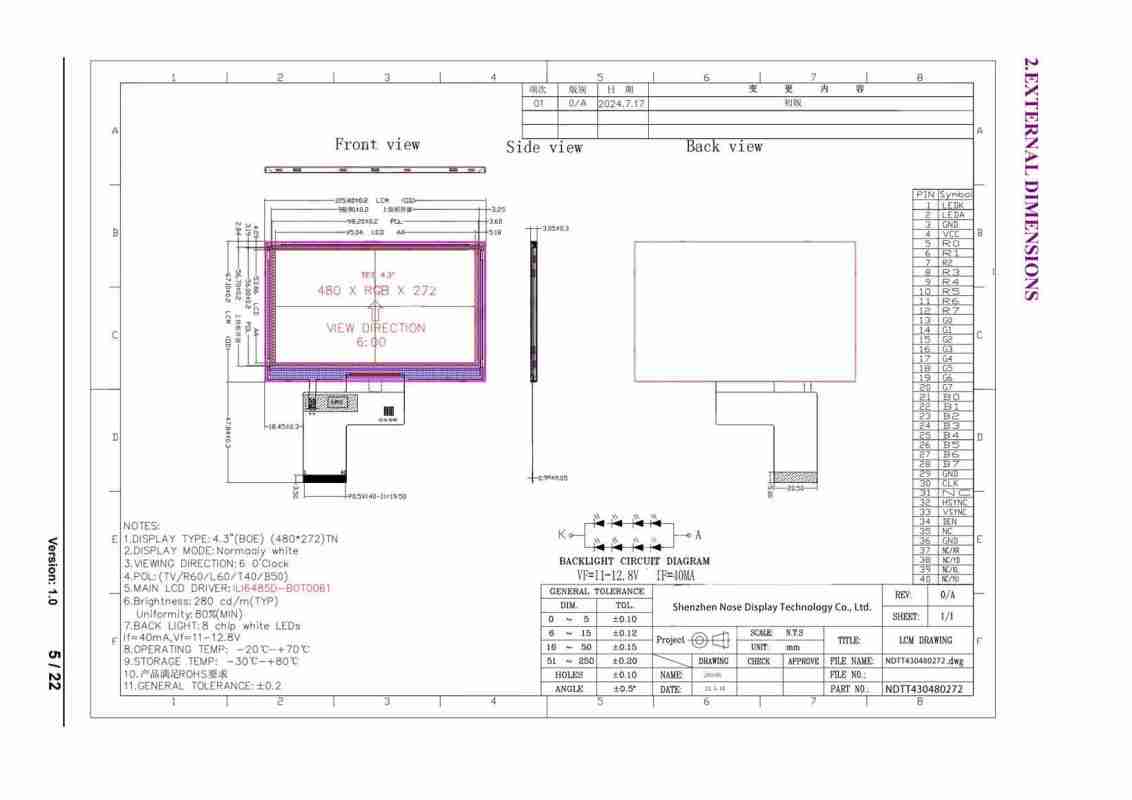

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDK | Backlight Cathode |
| 02 | LEDA | Backlight Anode |
| 03 | GND | Ground |
| 04 | VCC | POWER SUPPLY |
| 05 | -- | -- |
| 06 | -- | -- |
| 07 | -- | -- |
| 08 | -- | -- |
| 09 | -- | -- |
| 10 | -- | -- |
| 11 | -- | -- |
| 12 | -- | -- |
| 13 | -- | -- |
| 14 | -- | -- |
| 15 | -- | -- |
| 16 | -- | -- |
| 17 | -- | -- |
| 18 | -- | -- |
| 19 | -- | -- |
| 20 | -- | -- |
| 21 | -- | -- |
| 22 | -- | -- |
| 23 | -- | -- |
| 24 | -- | -- |
| 25 | -- | -- |
| 26 | -- | -- |
| 27 | -- | -- |
| 28 | -- | -- |
| 29 | GND | Ground |
| 30 | CLK | Serial Clock |
| 31 | NC | No Connection |
| 32 | HS | Horizontal Sync |
| 33 | VS | Vertical Sync |
| 34 | DEN | Data Enable |
| 35 | NC | No Connection |
| 36 | GND | Ground |
| 37 | NC/XR | -- |
| 38 | NC/YD | -- |
| 39 | NC/XL | -- |
| 40 | NC/YU | -- |
