Product Overview
NoseDisplay ND040TSN480480-A01 is a square IPS TFT LCD module for industrial control interfaces, smart home panels and portable instrument displays. Its RGB interface supports integration with a compatible host controller, while the high brightness specification can be evaluated for installations with strong ambient light. The square format suits status dashboards, icon menus and compact graphical controls. Review the mechanical drawing, power requirements and pin assignment against your enclosure and host design before sample testing; installation conditions and optical performance should be confirmed in the finished equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND040TSN480480-A01 |
| Display Size | 4.0 Inch |
| Resolution | 480×480 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | -- |
| Outline Dimensions | 76.54 × 74.66 × 2.2 mm |
| Active Area | 70.18 × 71.86 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V-3.3V |
| Luminance | 1000 cd/m² |
| Display Interface | RGB |
| Connection Type | 40 pin connector |
| IC | ST7701S |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

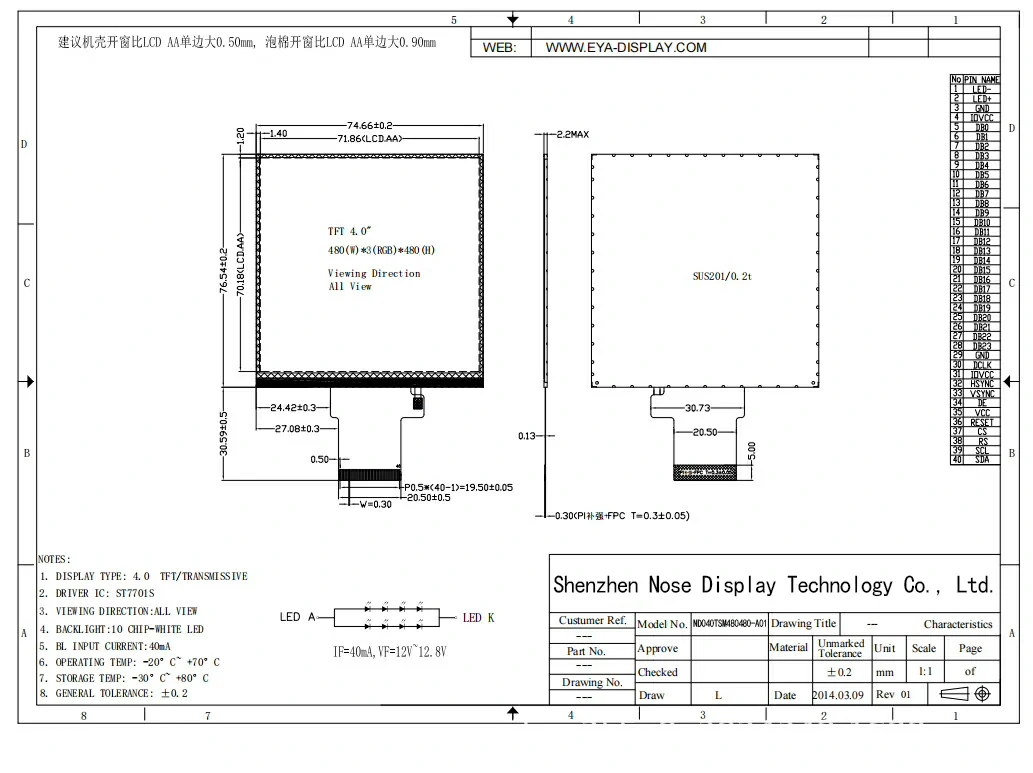

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LED- | Backlight Cathode |
| 02 | LED+ | Backlight Anode |
| 03 | GND | Ground |
| 04 | IOVCC | I/O POWER SUPPLY |
| 05 | R0 | Data Bus |
| 06 | R1 | Data Bus |
| 07 | R2 | Data Bus |
| 08 | R3 | Data Bus |
| 09 | R4 | Data Bus |
| 10 | R5 | Data Bus |
| 11 | R6 | Data Bus |
| 12 | R7 | Data Bus |
| 13 | G0 | Data Bus |
| 14 | G1 | Data Bus |
| 15 | G2 | Data Bus |
| 16 | G3 | Data Bus |
| 17 | G4 | Data Bus |
| 18 | G5 | Data Bus |
| 19 | G6 | Data Bus |
| 20 | G7 | Data Bus |
| 21 | B0 | Data Bus |
| 22 | B1 | Data Bus |
| 23 | B2 | Data Bus |
| 24 | B3 | Data Bus |
| 25 | B4 | Data Bus |
| 26 | B5 | Data Bus |
| 27 | B6 | Data Bus |
| 28 | B7 | Data Bus |
| 29 | GND | Ground |
| 30 | DCLK | Pixel Clock |
| 31 | IOVCC | I/O POWER SUPPLY |
| 32 | HSYNC | Horizontal Sync |
| 33 | VSYNC | Vertical Sync |
| 34 | DE | Data Enable |
| 35 | VCC | POWER SUPPLY |
| 36 | GND | Ground |
| 37 | /RESET | Reset |
| 38 | /CS | Chip Select |
| 39 | SCL | Serial Clock |
| 40 | SDA | Serial Data |
