Product Overview
NoseDisplay ND088TBN4801920-A01 is an 8.8 inch bar-type IPS TFT LCD module with a 480×1920 pixel display for product interface development. Its MIPI interface and OTA7290B controller support integration into host display designs for elongated equipment interfaces, information displays and space-constrained control panels. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, backlight control and enclosure integration. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND088TBN4801920-A01 |
| Display Size | 8.8 Inch |
| Resolution | 480×1920 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 231.3 × 64.3 mm |
| Active Area | 218.88 × 54.72 mm |
| Parameter | Specification |
| Supply Voltage | 3.3-5V |
| Luminance | 600Cd/m² |
| Display Interface | MIPI |
| Connection Type | 40 pins connector |
| IC | OTA7290B |
| Weight | -- |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

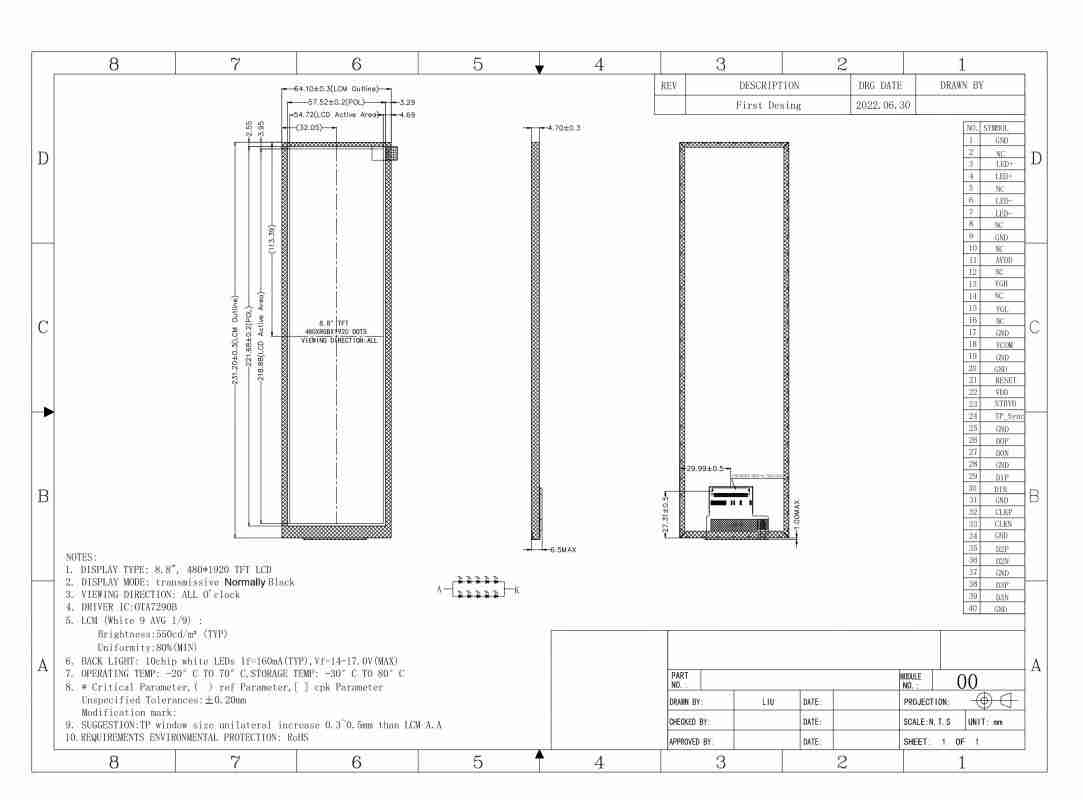

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | NC | No Connection |
| 03 | LEDA | Backlight Anode |
| 04 | LEDA | Backlight Anode |
| 05 | NC | No Connection |
| 06 | LEDK | Backlight Cathode |
| 07 | LEDK | Backlight Cathode |
| 08 | NC | No Connection |
| 09 | GND | Ground |
| 10 | NC | No Connection |
| 11 | AVDD | POWER SUPPLY |
| 12 | NC | No Connection |
| 13 | VGH | Gate High Voltage |
| 14 | NC | No Connection |
| 15 | VGL | Gate Low Voltage |
| 16 | NC | No Connection |
| 17 | GND | Ground |
| 18 | VCOM | Common Voltage |
| 19 | GND | Ground |
| 20 | GND | Ground |
| 21 | RESET | Reset |
| 22 | VCI | POWER SUPPLY |
| 23 | STBYB | -- |
| 24 | TP_SYNC | -- |
| 25 | GND | Ground |
| 26 | D0P | Differential Data + |
| 27 | D0N | Differential Data - |
| 28 | GND | Ground |
| 29 | D1P | Differential Data + |
| 30 | D1N | Differential Data - |
| 31 | GND | Ground |
| 32 | CLKP | Differential Clock + |
| 33 | CLKN | Differential Clock - |
| 34 | GND | Ground |
| 35 | D2P | Differential Data + |
| 36 | D2N | Differential Data - |
| 37 | GND | Ground |
| 38 | D3P | Differential Data + |
| 39 | D3N | Differential Data - |
| 40 | GND | Ground |
