ND087TNG8001340-A01 | 8.7 inch IPS TFT Display 800x1340 MIPI LCD Module for Embedded and Industrial Applications
The ND087TNG8001340-A01 is an 8.7-inch IPS TFT LCD module designed for embedded and industrial systems that demand sharp visuals, wide viewing angles, and reliable performance.
With its 800×1340 resolution, 350 cd/m² luminance, and MIPI interface, this display ensures vibrant color reproduction, efficient data transmission, and long-term stability for compact, high-performance devices
Key Features：
High Resolution: 8.7-inch IPS panel with 800×1340 pixels for clear, wide-angle image quality.
Optimized Brightness: 350 cd/m² luminance ensures excellent readability in various lighting conditions.
MIPI Interface: High-speed, low-power signal transmission ideal for embedded and handheld designs.
Controller Integration: Built-in JD9366TC driver, compatible with Arduino and similar development boards.
Reliable Operation: Supports 0°C to +50°C operation for dependable use in industrial environments.
Compact Structure: 120.3 × 207.4 × 3.1 mm outline with 44-pin connector for flexible installation.
Search Keywords：
8.7 inch lcd, 800×1340 tft display, mipi lcd module, jd9366tc display, 8 inch lcd arduino, raspberry pi screen, 350 cd/m2 lcd, embedded lcd, industrial tft display, ips panel
Specifications:
| Part No.: | ND087TNG8001340-A01 |
| Size: | 8.7 inch |
| Display Format: | 800×1340 Resolution |
| Display Type: | IPS Display |
| Display Shape: | Rectangle |
| Display Mode: | Transmissive |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | full |
| Outline Dimension: | 120.3(H)*207.442(V)*3.11(T)mm |
| Active Area: | 113.04(H) x 189.342(V) mm |
| Supply Voltage: | 3.3-5V |
| Luminance | 350Cd/m² |
| Interface: | MIPI |
| Connection Type: | 44 pin connector |
| Controller： | JD9366TC |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | From 0°C to +50 °C (dry) |
| Storage Temperature: | From -20°C to +60 °C (dry) |
| Mount Frame: | None |

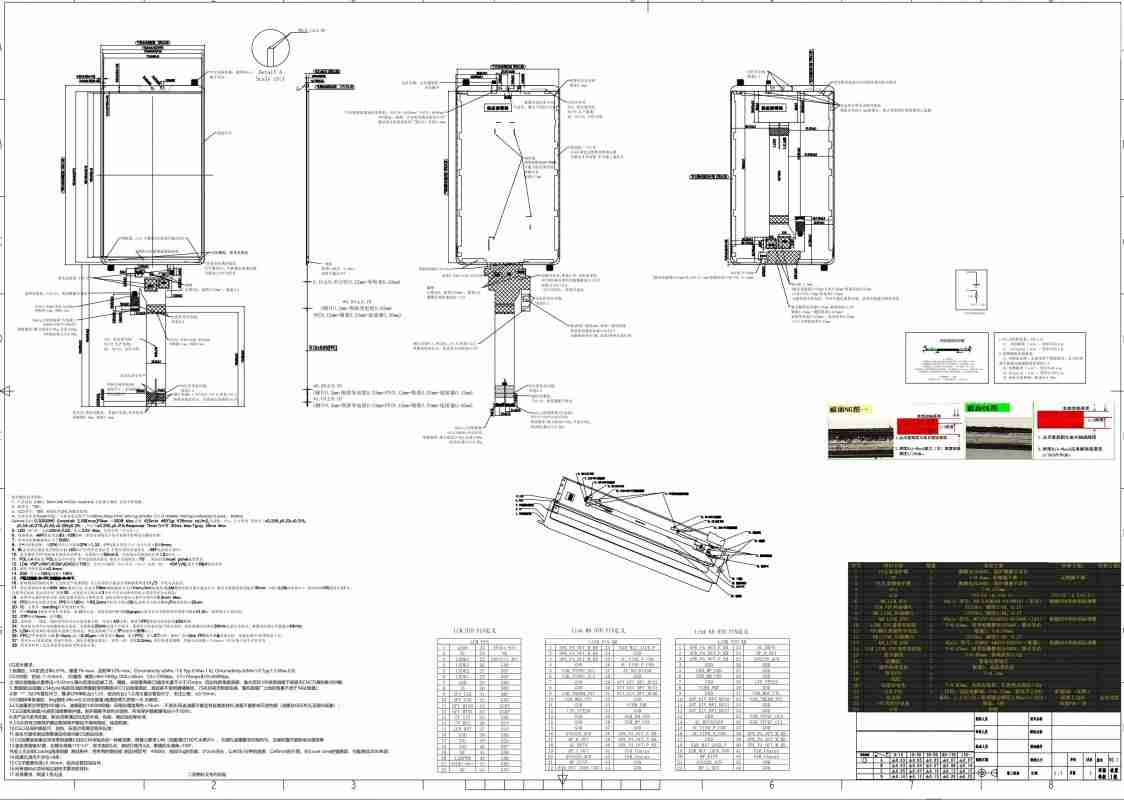

Display Drawing
Interface Definition
| PIN NO. | Symbol | Description |
|---|---|---|
| 1 | LEDA | Power supply for backlight (anode) |
| 2 | NC | Not connected |
| 3 | LEDK4 | Power supply for backlight (cathode) |
| 4 | LEDK3 | Power supply for backlight (cathode) |
| 5 | LEDK2 | Power supply for backlight (cathode) |
| 6 | LEDK1 | Power supply for backlight (cathode) |
| 7 | GND | Ground |
| 8 | TE | Tearing effect signal |
| 9 | SPI_CLK | SPI slave clock signal |
| 10 | SPI_CSB | SPI slave chip select signal |
| 11 | SPI_MISO | SPI slave master in slave out signal |
| 12 | SPI_MOSI | SPI slave master out slave in signal |
| 13 | TP_INT | TP interrupt signal |
| 14 | TP_RST | TP Reset signal |
| 15 | LCD_RST | LCD Reset signal |
| 16 | GND | Ground |
| 17 | ID1 | LCM ID1 |
| 18 | ID2 | LCM ID2 |
| 19 | NC | Not connected |
| 20 | LEDPWM | PWM |
| 21 | AVDD(+6V) | Power Supply |
| 22 | NC | Not connected |
| 23 | AVEE(-6V) | Power Supply |
| 24 | NC | Not connected |
| 25 | IOVCC(1.8V) | I/O Power Supply(1.8V) |
| 26 | GND | Ground |
| 27 | D3N | MIPI DSI Data 3- signal |
| 28 | D3P | MIPI DSI Data 3+ signal |
| 29 | GND | Ground |
| 30 | D0N | MIPI DSI Data 0- signal |
| 31 | D0P | MIPI DSI Data 0+ signal |
| 32 | GND | Ground |
| 33 | CLKN | MIPI DSI CLK- signal |
| 34 | CLKP | MIPI DSI CLK+ signal |
| 35 | GND | Ground |
| 36 | D1N | MIPI DSI Data 1- signal |
| 37 | D1P | MIPI DSI Data 1+ signal |
| 38 | GND | Ground |
| 39 | D2N | MIPI DSI Data 2- signal |
| 40 | D2P | MIPI DSI Data 2+ signal |
| 41 | GND | Ground |
| 42 | GND | Ground |
| 43 | GND | Ground |
| 44 | GND | Ground |
Custom 8.7" TFT Display
We offer full customization of TFT 8.7" LCD display modules, including resolution,brightness, interface, and touch options. Our service covers PCB design, connector modification,and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
LCD Cable Custom
Adjust LCD cable length, pin layout, and connector position of IPS display 8.7inch to match your system. Engineered for reliable and optimized connectivity.
LCD Interface Custom
Choose interfaces of LCD 8.7 inch TFT from MCU parallel, LVDS, SPI, RGB, and beyond. We’ll guide you in selecting and integrating the best LCD interface fit for your project.
8.7'' LCD PCB Design
Customize PCB shape, size, pin configuration, and component layout of TFT 8.7 inch display to guarantee precise fit and smooth integration with your device.
8.7'' Touchscreen Adding
Enhance your TFT LCD 8.7 inch IPS display with resistive or capacitive touch. Seamless integration delivers smooth control and intuitive operation.
