NDTI3507201280-2 | Touchscreen 3.5 inch TFT IPS Screen 720x1280 Resolution MIPI Interface 600 Nits High Brightness
This 3.5 inch IPS LCD module (Part No.: NDTI3507201280-2) is engineered for compact devices that demand superior image quality and reliable performance. With a 720×1280 resolution, 600 cd/m² high brightness, and full viewing angles, it delivers sharp, vibrant visuals even under strong ambient light — making it ideal for handheld terminals, medical devices, and outdoor applications.
Equipped with a MIPI interface and 30-pin connector, this display ensures smooth data transfer and easy integration. Driven by the proven ST7703 controller, it guarantees stability and consistent performance. A capacitive touchscreen is included (optional without), offering intuitive interaction for modern devices.
Built with durability in mind, the module operates from -10°C to 60°C and can be stored from -20°C to 70°C, providing long-lasting reliability in diverse environments. It is also compatible with Arduino and similar development boards, helping developers accelerate prototyping and reduce time-to-market.
Key Benefits
- High Brightness (600 cd/m²): Excellent readability indoors and outdoors
- Resolution 720×1280: Crisp, detailed image quality in compact size
- IPS Full Viewing Angle: Consistent visuals from any direction
- Touchscreen Option: Capacitive touch for interactive applications
- MIPI Interface with 30-pin connector: Stable, efficient integration
- Proven Controller (ST7703): Reliable performance for long-term projects
- Wide Application Range: Handheld terminals, medical devices, industrial control, smart instruments
Specifications
| Part No.: | NDTI3507201280-2 |
| Size: | 3.5 inch |
| Display Format: | 720×1280 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | Full View |
| Outline Dimension: | 52.20 (H) X91.00(V) X3.17(T) mm |
| Active Area: | 43.20(H) X78.72(V) mm |
| Supply Voltage: | 2.8V |
| Luminance | 600 Cd/m² |
| Interface: | MIPI |
| Connection Type: | 30 pin connector |
| Controller： | ST7703 |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -10°C ~ 60°C |
| Storage Temperature: | -20°C ~ 70°C |
| Mount Frame: | None |

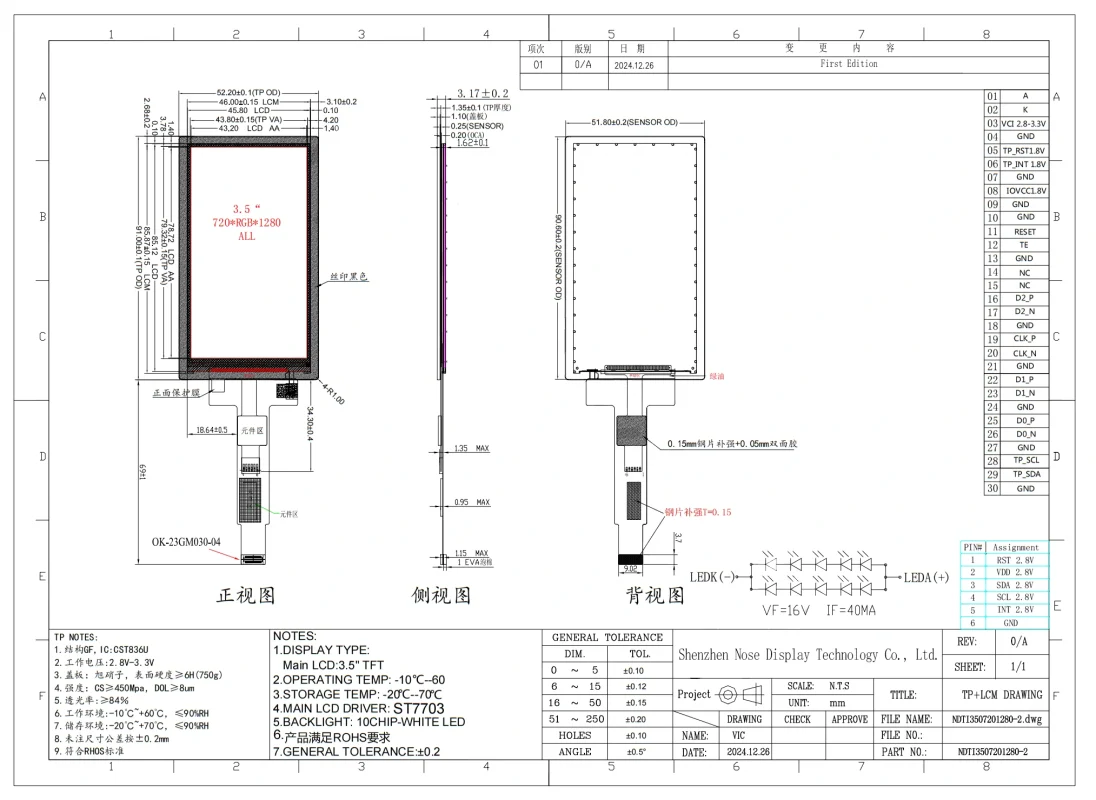

Display Drawing
Interface Definition
| PIN NO. | Symbol | Level | Description |
|---|---|---|---|
| 1 | LEDA | LED power anode | |
| 2 | LEDK | LED power cathode | |
| 3 | VCC | Power setting | |
| 4 | GND | Ground | |
| 5 | TP-RST | TP-RST | |
| 6 | TP-INT | TP-INT | |
| 7 | GND | Ground | |
| 8 | IOvCC | Power supply for logic circuit. | |
| 9-10 | GND | Ground | |
| 11 | RESET | Reset pin. | |
| 12 | TE | TE PIN | |
| 13 | GND | Ground | |
| 14-15 | NC | NC | |
| 16 | D2P | MIPI Data pin Positive | |
| 17 | D2N | MIPI Data pin Positive | |
| 18 | GND | Ground | |
| 19 | CLKP | Mipi clock signal | |
| 20 | CLKN | Mipi clock signal | |
| 21 | GND | Ground | |
| 22 | D1P | MIPI Data pin Positive | |
| 23 | D1N | MIPI Data pin Positive | |
| 24 | GND | Ground | |
| 25 | D0P | MIPI Data pin Positive | |
| 26 | D0N | MIPI Data pin Positive | |
| 27 | GND | Ground | |
| 28 | TP-SCL | TP-SCL | |
| 29 | TP-SDA | TP-SDA | |
| 30 | GND | Ground |
