Product Overview
NoseDisplay ND035TSN7201280-A01 is a 3.5 inch IPS TFT LCD module with a 720×1280 pixel display for product interface development. Its MIPI interface and ST7703-V1-G5-D controller support integration into host display designs for handheld instruments, embedded controls and compact equipment interfaces. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, backlight control and enclosure integration. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND035TSN7201280-A01 |
| Display Size | 3.5 Inch |
| Resolution | 720×1280 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 51.32 × 87.01 × 3.37 mm |
| Active Area | 43.2 × 78.72 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V |
| Luminance | 430 Cd/m² |
| Display Interface | MIPI |
| Connection Type | 20 pin connector |
| IC | ST7703-V1-G5-D |
| Weight | -- |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

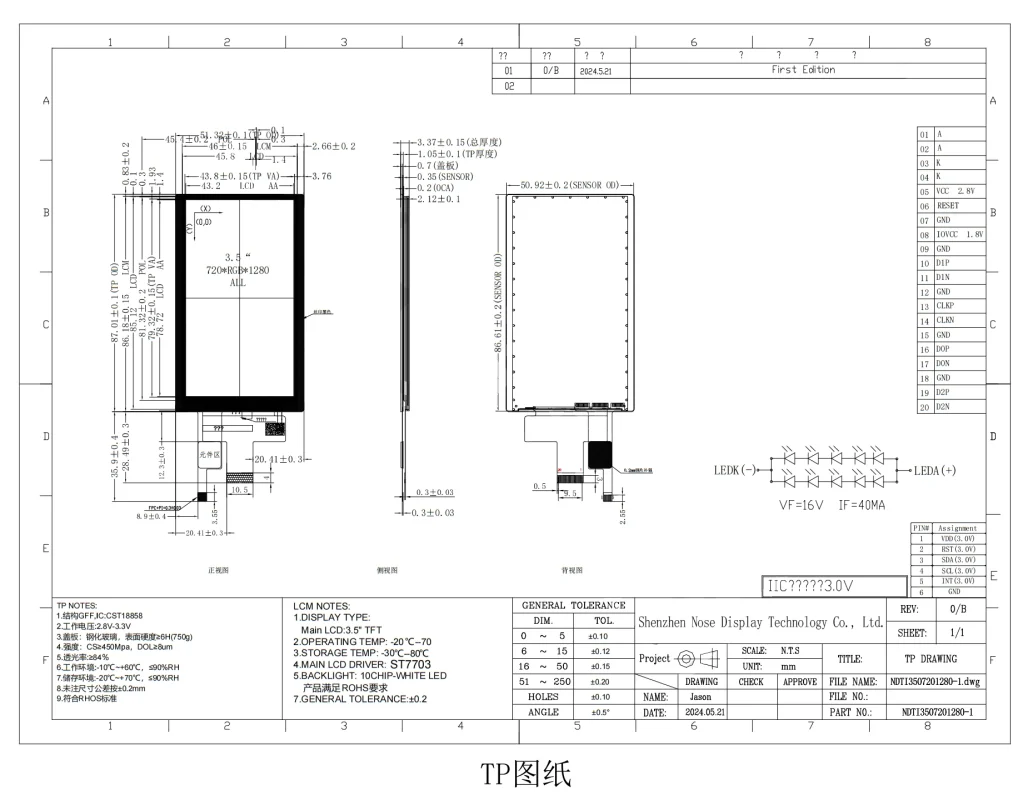

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | A | Backlight Anode |
| 02 | A | Backlight Anode |
| 03 | K | Backlight Cathode |
| 04 | K | Backlight Cathode |
| 05 | VCI | POWER SUPPLY |
| 06 | RESET | Reset |
| 07 | GND | Ground |
| 08 | IOvCC | I/O POWER SUPPLY |
| 09 | GND | Ground |
| 10 | D1P | Differential Data + |
| 11 | D1N | Differential Data - |
| 12 | GND | Ground |
| 13 | CLKP | Differential Clock + |
| 14 | CLKN | Differential Clock - |
| 15 | GND | Ground |
| 16 | D0P | Differential Data + |
| 17 | D0N | Differential Data - |
| 18 | GND | Ground |
| 19 | D2P | Differential Data + |
| 20 | D2N | Differential Data - |
