2.2-Inch 240 × 320 Transflective TFT LCD Module with 4-Line SPI
Sample: $15.20
Transflective TFT LCD Displays
NoseDisplay transflective TFT LCD displays combine reflected ambient light with a controlled backlight, keeping critical information readable in direct sunlight, shade and dim indoor environments. These sunlight-readable TFT display modules support outdoor instruments, industrial handheld devices, portable terminals and battery-aware equipment where light conditions change throughout the day. Available options can be matched to active area, resolution, interface and optical requirements for a dependable outdoor HMI display.
Share the target size, interface, touch stack, operating-temperature range and power budget. Our engineers can evaluate transflective mode, brightness, cover lens and mechanical integration to define a production-ready daylight-readable TFT LCD module for your OEM application.
Featured Transflective TFT LCD Displays
Featured transflective TFT LCD displays support outdoor instruments, handheld equipment, terminals and battery-aware systems that transition between sunlight and indoor light. Select a sunlight-readable TFT display module by active area, resolution, transflective mode, brightness, contrast, power target, touch and interface. For OEM outdoor HMI projects, we support cover-lens integration, backlight tuning, mechanical design and engineering for daylight-readable industrial displays.
10.36-Inch 1200 × 2000 Transflective TFT Touch Module with MIPI
Sample: $145.00
2.0-Inch 320 × 240 Transflective TFT LCD Module with SPI
Sample: $9.50
2.4-Inch 320 × 240 Transflective TFT LCD Module with SPI
Sample: $10.50
3.45-Inch 480 × 640 Transflective TFT LCD Module with MIPI
Sample: $16.00
3.97-Inch 480 × 800 Transflective TFT Touch Module with MIPI
Sample: $27.80
5.0-Inch 480 × 800 Transflective TFT Touch Module with RGB
Sample: $32.00

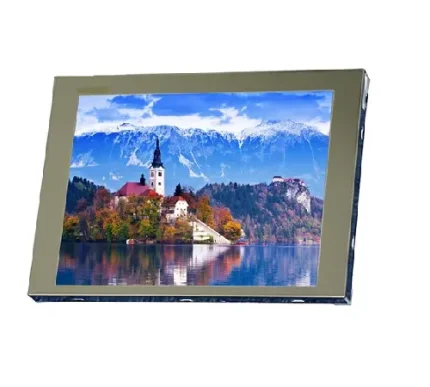

5.7-Inch 640 × 480 Transflective TFT LCD Module
Sample: $90.00
2.4-Inch 240 × 320 Transflective TFT LCD Module with MCU
Sample: $17.50
Sunlight-readable display engineering
Need a Custom Transflective TFT Display?
Send the outdoor light level, display size, interface, touch stack, temperature and power target for a transflective display assessment.
Transflective TFT Display Selection Guide
Use this guide to select a true transflective TFT LCD module for daylight-readable HMI, outdoor instruments, handheld terminals and variable-light equipment. Confirm the ambient-light range, active area, resolution, interface, touch stack, operating temperature and power target. Cover glass, anti-reflection treatment, optical bonding and backlight dimming should be reviewed together because each affects sunlight readability.
Transflective TFT Display Module FAQs
What is a transflective TFT display module?
A transflective TFT display module combines reflected ambient light with an adjustable backlight. Ambient light supports daytime viewing, while the backlight keeps information readable in dim indoor conditions. This optical approach is suited to instruments, portable equipment and outdoor-facing interfaces that operate across changing light levels.
How does a transflective TFT LCD differ from transmissive and reflective displays?
A transmissive TFT LCD relies mainly on a backlight and is commonly selected for indoor viewing. A reflective display uses ambient light without a backlight. A transflective TFT display balances both methods, supporting sunlight-readable viewing with controllable backlight operation when ambient light is limited.
Are transflective TFT displays suitable for outdoor equipment?
They can be considered for outdoor instruments, handheld terminals, marine devices, agricultural equipment and variable-light industrial interfaces. Readability depends on the complete optical stack, including display mode, brightness target, cover lens, touch panel, viewing angle and installation environment.
Can a transflective TFT LCD module include touch and a cover lens?
Yes. A transflective touchscreen display may use projected capacitive touch, resistive touch or a non-touch cover lens. The touch stack, adhesive method and cover-lens surface treatment should be evaluated together because they influence optical transmission, reflections, durability and daylight readability.
Which interfaces are available for transflective TFT display modules?
Interface availability depends on the panel size and resolution. Common options include SPI, RGB, MIPI DSI, LVDS and MCU-type interfaces. The host processor, frame rate, cable length, power budget and driver support should be confirmed before panel selection.
What details are needed for a custom transflective TFT display?
Please share the display size, resolution, viewing orientation, active-area limit, interface, touch requirement, cover-lens design, operating temperature, ambient-light condition, power target and estimated project quantity. These inputs help define a practical module and integration path.
Ready to Start Your Project?
Looking for a daylight-readable TFT display? Our team can help select a transflective module and integration stack for your environment, power, and interface needs. Contact us today to discuss your project.
Why Work With Us
NoseDisplay helps teams match optical mode, backlight, touch, cover lens, mechanical design and interface requirements for outdoor and variable-light equipment. We focus on practical display integration, balanced performance and efficient project development for standard and customized TFT display solutions.
