Product Overview
NoseDisplay ND020TFN320240-B01 is a compact transflective TFT LCD module for embedded interfaces used under changing ambient light. Its transflective modes can be evaluated for outdoor handheld instruments, portable controls, field sensor readouts and compact industrial status displays, with visibility reviewed under the intended lighting and backlight conditions. Engineers can assess the host interface, electrical requirements, connector layout and enclosure fit for their application, and discuss sample evaluation and project-specific integration before selecting the final display configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND020TFN320240-B01 |
| Display Size | 2.0 Inch |
| Resolution | 320×240 pixels |
| Display Type | TFT LCD |
| Display Mode | Transflective |
| Touchscreen | No |
| Outline Dimensions | 46 × 41.30 × 2.53 mm |
| Active Area | 41.80 × 31.60 mm |
| Parameter | Specification |
| Supply Voltage | 3.0~5.0 V |
| Luminance | 200 nits |
| Display Interface | 18-bit RGB |
| Connection Type | 45-pin connector |
| IC | ILI9342C |
| Weight | 26±3g |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

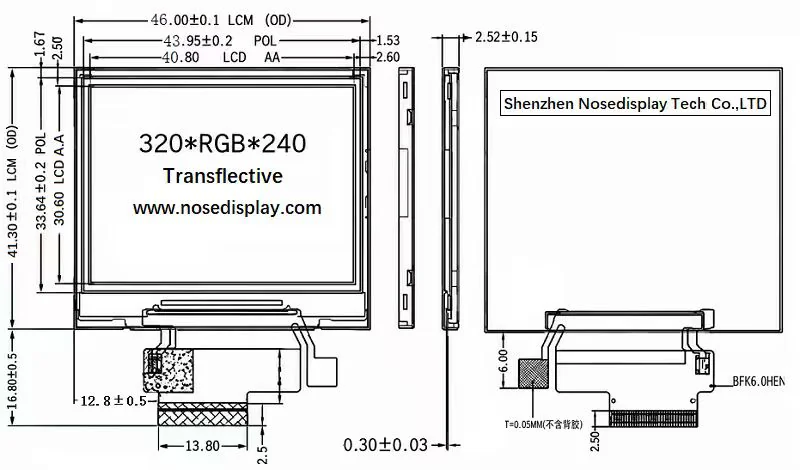

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | GND | Ground |
| 03 | GND | Ground |
| 04 | DE | DE |
| 05 | PCLK | Dot clock signal for RGB. |
| 06 | HSYNC | Horizontal sync input |
| 07 | GND | Ground |
| 08 | VSYNC | Vertical sync input |
| 09 | GND | Ground |
| 10 | B3 | Data bus. |
| 11 | B2 | Data bus. |
| 12 | B1 | Data bus. |
| 13 | B0 | Data bus. |
| 14 | G1 | Data bus. |
| 15 | G0 | Data bus. |
| 16 | B4 | Data bus. |
| 17 | B5 | Data bus. |
| 18 | G5 | Data bus. |
| 19 | G4 | Data bus. |
| 20 | G3 | Data bus. |
| 21 | G2 | Data bus. |
| 22 | R0 | Data bus. |
| 23 | R1 | Data bus. |
| 24 | R2 | Data bus. |
| 25 | R3 | Data bus. |
| 26 | R4 | Data bus. |
| 27 | R5 | Data bus. |
| 28 | GND | Ground |
| 29 | SDI | Serial data input/output bidirectional pin for SPI interface. |
| 30 | NC | NC |
| 31 | GND | Ground |
| 32 | SC | Chip selection. |
| 33 | WR/SCL | Serial interface clock |
| 34 | NC | NC |
| 35 | GND | Ground |
| 36 | RESET | Reset signal. |
| 37 | GND | Ground |
| 38 | IOVCC | Power supply for digital interface (Level: 1.8V(typ)) |
| 39 | VCC | Power setting (Level: 2.8(typ)) |
| 40 | GND | Ground |
| 41 | LEDK | LED power cathode |
| 42 | LEDA | LED power anode |
| 43 | GND | Ground |
| 44 | GND | Ground |
| 45 | GND | Ground |
