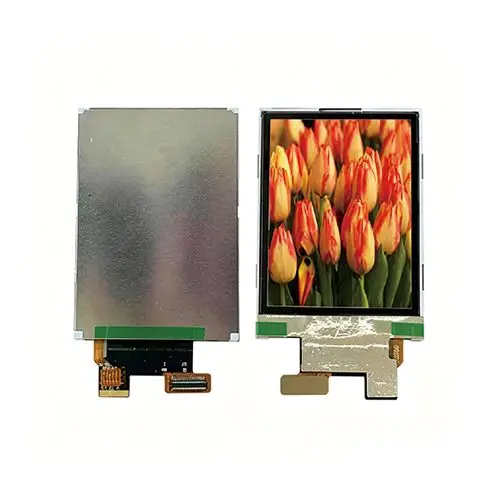

Product Overview
NoseDisplay ND024TFN240320-A01 is a compact transflective TFT LCD module for portrait interfaces in portable and industrial equipment. It can be evaluated for outdoor diagnostic instruments, monitoring terminals, sensor controllers and small HMI panels where users read menus, alerts and operating status under changing ambient light. Engineers can review MCU host integration, backlight conditions, FPC connections, enclosure fit and optional touch requirements, using model-specific documentation and samples to assess the selected application before confirming the final module configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND024TFN240320-A01 |
| Display Size | 2.4 Inch |
| Resolution | 240×320 pixels |
| Display Type | TFT LCD |
| Display Mode | Transflective |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 42.72 × 60.16 × 2.55 mm |
| Active Area | 36.72 × 42.96 mm |
| Parameter | Specification |
| Supply Voltage | 3.0V |
| Luminance | 160 nits |
| Display Interface | MCU 16-bit |
| Connection Type | 40 pin connector |
| IC | ST7789V |
| Weight | — |
| Operating Temperature | -30°C ~ 80°C |
| Storage Temperature | -30°C ~ 80°C |

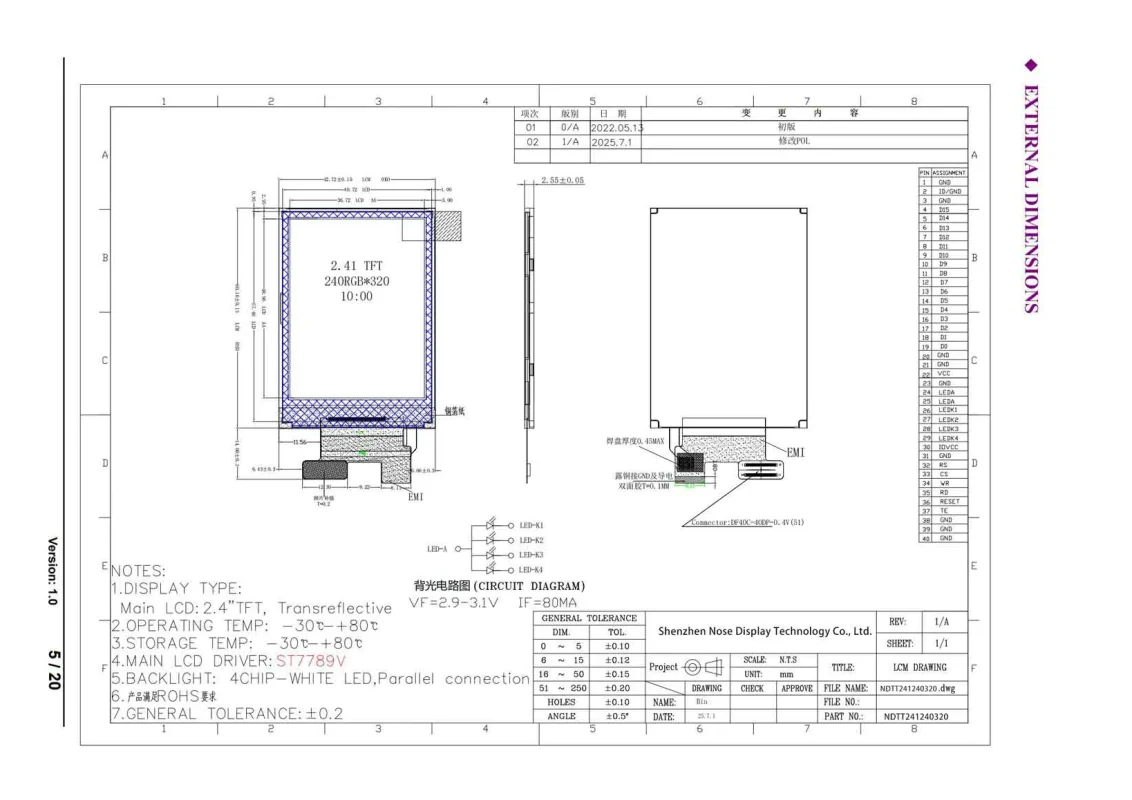

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | ID/GND | -- |
| 03 | GND | Ground |
| 04 | DB15 | Data Bus |
| 05 | DB14 | Data Bus |
| 06 | DB13 | Data Bus |
| 07 | DB12 | Data Bus |
| 08 | DB11 | Data Bus |
| 09 | DB10 | Data Bus |
| 10 | DB9 | Data Bus |
| 11 | DB8 | Data Bus |
| 12 | DB7 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB5 | Data Bus |
| 15 | DB4 | Data Bus |
| 16 | DB3 | Data Bus |
| 17 | DB2 | Data Bus |
| 18 | DB1 | Data Bus |
| 19 | DB0 | Data Bus |
| 20 | GND | Ground |
| 21 | GND | Ground |
| 22 | VCC | POWER SUPPLY |
| 23 | GND | Ground |
| 24 | LEDA | Backlight Anode |
| 25 | LEDA | Backlight Anode |
| 26 | LEDK1 | Backlight Cathode |
| 27 | LEDK2 | Backlight Cathode |
| 28 | LEDK3 | Backlight Cathode |
| 29 | LEDK4 | Backlight Cathode |
| 30 | IOVCC | I/O POWER SUPPLY |
| 31 | GND | Ground |
| 32 | RS | Data/Command Select |
| 33 | Cs | Chip Select |
| 34 | WR | Write Enable |
| 35 | RD | Read Enable |
| 36 | RESET | Reset |
| 37 | TE | Tearing Effect Output |
| 38 | GND | Ground |
| 39 | GND | Ground |
| 40 | GND | Ground |
