Product Overview
ND015ESK466466-A01 is a high-performance 1.5 inch 466×466 round AMOLED smart display module powered by an ESP32-S3 processor, designed for advanced human-machine interface applications requiring rich visuals and intuitive interaction. Featuring both UART and USB interfaces, it enables seamless integration with MCU and PLC systems while reducing development complexity. The high-brightness AMOLED display reaching up to 1000 cd/m² delivers exceptional contrast, vivid colors, and superior readability even in bright environments. This module integrates rotary knob, press, and multi-point capacitive touch interaction, providing a versatile and highly responsive user experience. With built-in WiFi, BLE 5, and BLE Mesh connectivity, it supports modern IoT applications and edge communication. Fully compatible with Arduino, ESP-IDF, and LVGL frameworks, it accelerates UI development and deployment, making it ideal for smart home devices, appliances, industrial controllers, and premium embedded interface solutions.
NoseDisplay ND015ESK466466-A01 combines a 1.5-inch 466×466 AMOLED screen with rotary and press and capacitive touch input for compact HMI and connected controls. ESP32-S3, 240 MHz dual-core, UART / USB communication and 2.4 GHz Wi-Fi, BLE 5 / BLE Mesh support embedded integration. Housing, interface and UI customization can be reviewed for OEM projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND015ESK466466-A01 |
| Display Size | 1.5 Inch |
| Resolution | 466×466 pixels |
| Display Type | AMOLED |
| Display Mode | Emissive |
| Touchscreen | Capacitive touch |
| Outline Dimensions | Ø 50 mm |
| Active Area | Ø 37.5 mm |
| Luminance | 1000 nits |
| Available Colors | Metallic Black / Metallic White |
| Parameter | Specification |
| MCU (IC) | ESP32-S3, 240 MHz dual-core |
| Platform | RTOS |
| Memory | 8MB(RAM) + 16MB(Flash) |
| Operating Current | 220 mA |
| Wireless | 2.4 GHz Wi-Fi, BLE 5 / BLE Mesh |
| Supply Voltage | 5 V |
| Display Interface | UART / USB |
| Weight | 65 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

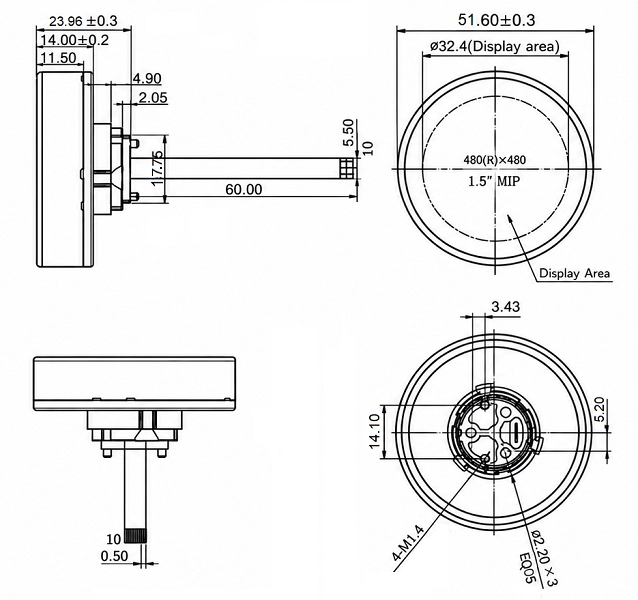

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VCC | Power supply, 5 V |
| 2 | GPIO38 | GPIO38 |
| 3 | GND | Ground |
| 4 | GPIO40 | GPIO40 |
| 5 | GPIO39 | GPIO39 |
| 6 | RX | UART receive |
| 7 | TX | UART transmit |
| 8 | CHIP-EN | Chip enable |
| 9 | D+ | USB D+ |
| 10 | D- | USB D- |
Rotary Knob Features & Design Options
An integrated rotary knob display combines a circular screen, tactile controls and wireless connectivity for compact HMI and connected products. Explore the supplied module features, application scenarios and project-specific design options below.
Integrated Display & Control
Supplied configuration: 1.5-inch AMOLED display + ESP32-S3, 240 MHz dual-core control board + rotary knob and housing. Rotary and press input, with capacitive touch.
- Display & input: 466×466 circular color screen with 1000 nits luminance, rotary navigation, mechanical press confirmation and capacitive touch input.
- Controller & wireless: ESP32-S3, 240 MHz dual-core with 2.4 GHz Wi-Fi, BLE 5 / BLE Mesh connectivity.
- Host communication: UART / USB for integration with a host MCU or an appropriately matched control system.
- UI development: Arduino, ESP-IDF and LVGL support for circular menus, visual feedback and interface evaluation.
- Compact OEM integration: Ø 50 mm outline, with housing, appearance and interface options evaluated for each project.
Integration Advantages
Combining the display, controller and tactile input in one module simplifies component integration. Onboard wireless connectivity supports connected controls, while familiar development tools help teams evaluate and adapt the UI. Housing and interface customization can be reviewed alongside the target product design.
Rotary, Press & Touch Interaction
Rotate to browse menus or adjust volume, temperature and dimming levels; press to confirm a selection. Tactile input combines with on-screen status for an intuitive control interface.
The image illustrates interaction options across the range. This ND015ESK466466-A01 configuration includes capacitive touch.
Protection & Appearance Options
Review sealed housing, all-black or mirror-like display appearance, shell texture, material and color, plus optional bottom lighting to match your product design.
The illustrated IPX7 capability applies to a separate waterproof variant. Sealing, touch, lighting and protection rating must be confirmed for the selected configuration.
Application Scenarios
Suitable for smart home controls, audio volume interfaces, ovens and air-conditioner panels, smart lighting, industrial parameter controls and compact IoT devices.
Match the UI, host connection, mounting and enclosure to the application. The illustrated products are integration examples for OEM evaluation.
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
2 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
