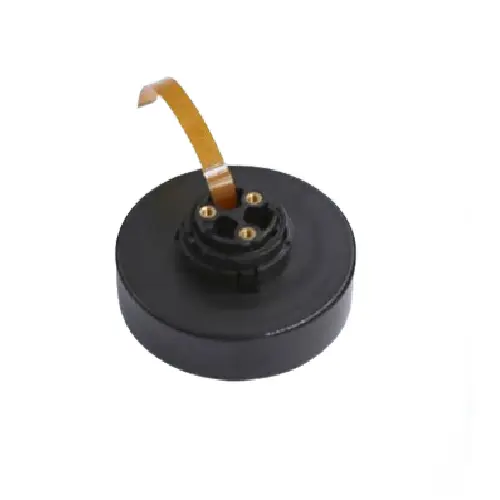

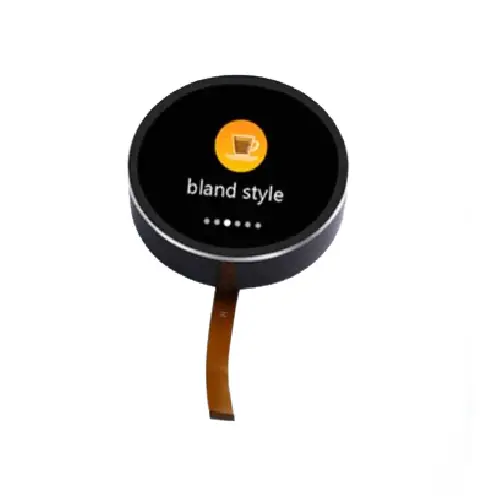

Product Overview
NoseDisplay ND013ESK240240-A01 is an ESP32 rotary knob display module for compact embedded HMI, smart home controls, audio equipment and connected appliances. Its circular IPS screen combines visual feedback with rotary and press input for menu navigation, temperature settings and lighting adjustment. The ESP32-C3 platform provides Wi-Fi and BLE connectivity, while UART communication supports host-controller integration. Arduino, ESP-IDF and LVGL development support helps engineers evaluate circular dashboards and interactive IoT interfaces. For OEM projects, NoseDisplay supports housing, interface and UI customization, helping teams move from prototype evaluation toward an integrated smart control solution.
NoseDisplay ND013ESK240240-A01 is an ESP32 rotary knob display for smart home controls, audio equipment, appliances and embedded IoT interfaces. Its circular IPS screen combines visual feedback with rotary and press input for menu navigation and parameter adjustment. ESP32-C3, UART, Wi-Fi and BLE support connected control applications. Arduino, ESP-IDF and LVGL development support, plus OEM housing, interface and UI options, help engineers evaluate a compact HMI solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND013ESK240240-A01 |
| Display Size | 1.28 Inch |
| Resolution | 240×240 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None |
| Outline Dimensions | Ø 50 mm |
| Active Area | Ø 32.4 mm |
| Luminance | 300 nits |
| Available Colors | Metallic Black / Metallic White |
| Parameter | Specification |
| MCU (IC) | ESP32-C3, 160 MHz |
| Platform | RTOS |
| Memory | 400KB(RAM) + 4MB(Flash) |
| Operating Current | 100 mA |
| Wireless | 2.4 GHz Wi-Fi, BLE 5 / BLE Mesh |
| Supply Voltage | 5 V |
| Display Interface | UART |
| Weight | 65 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

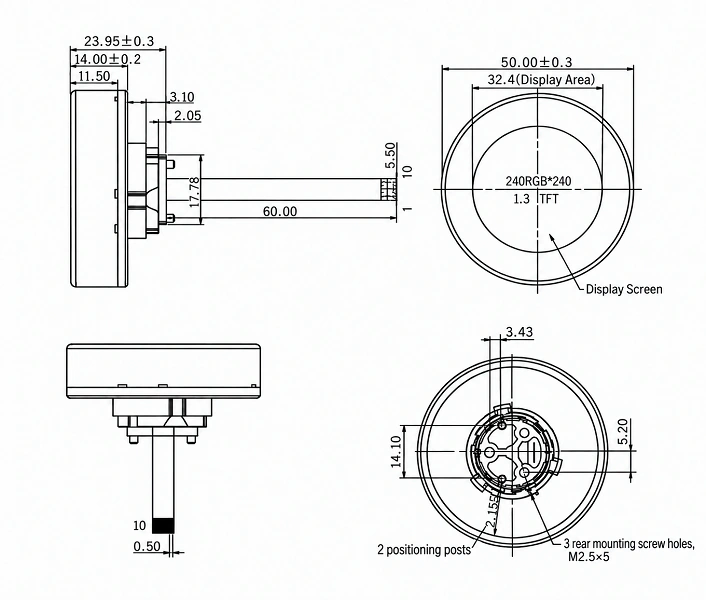

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VCC | Power supply, 5 V |
| 2 | ADC | GPIO3 / ADC input |
| 3 | GND | Ground |
| 4 | NC | No connection |
| 5 | NC | No connection |
| 6 | RX | UART receive |
| 7 | TX | UART transmit |
| 8 | RST | Reset signal; leave unconnected if unused |
| 9 | D+ | USB D+ |
| 10 | D- | USB D- |
Rotary Knob Features & Design Options
An integrated ESP32 rotary knob display combines a circular screen, tactile controls and wireless connectivity for compact HMI and connected products. Explore the supplied module features, application scenarios and project-specific design options below.

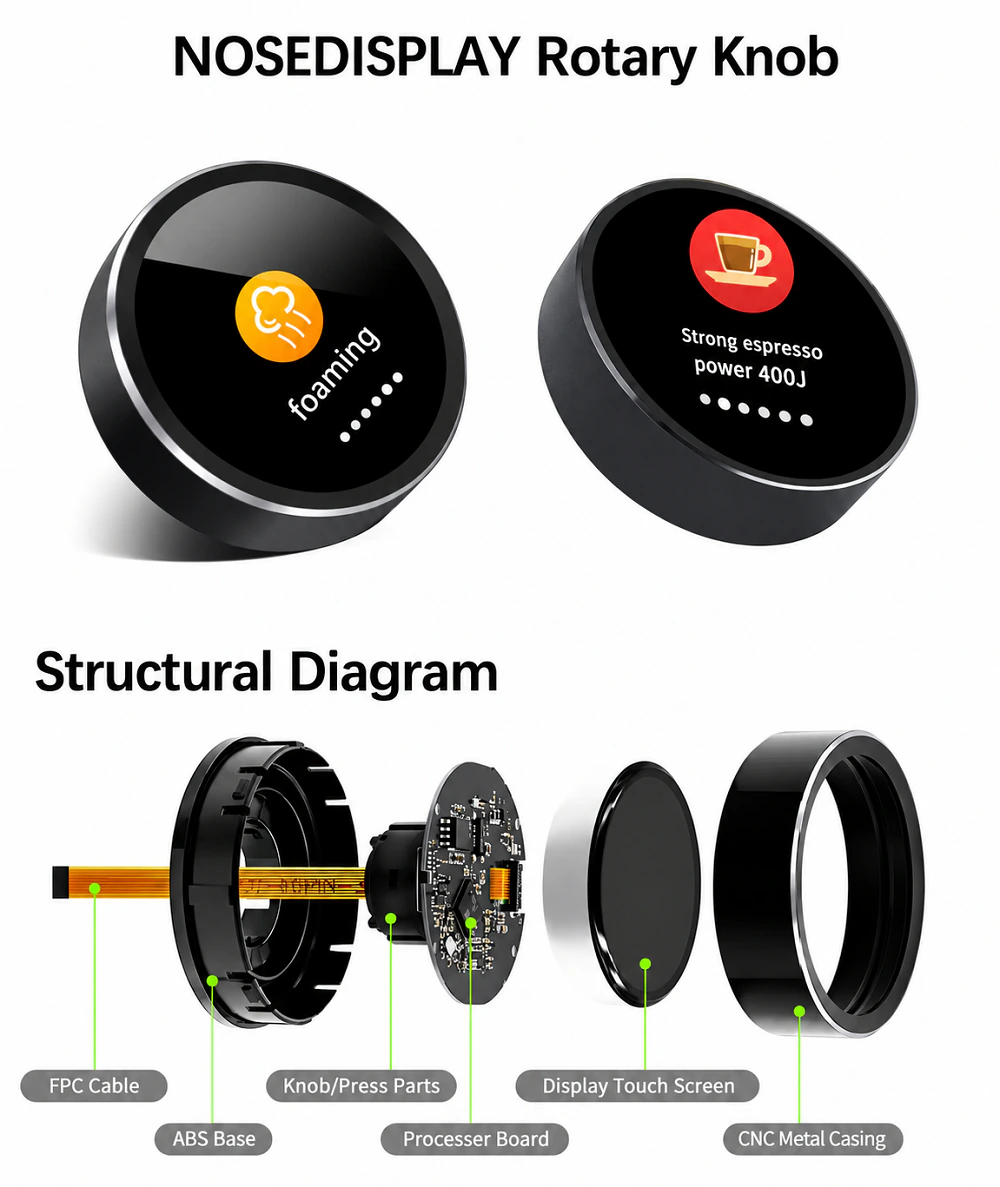

Integrated Display & Control
Supplied configuration: round IPS TFT display + ESP32-C3 control board + rotary knob and housing. Rotary and press input; no touch in this version.
- Display & input: circular color screen with wide viewing angles, rotary navigation and mechanical press confirmation.
- Controller & wireless: ESP32-C3 at 160 MHz with 2.4 GHz Wi-Fi, BLE 5 and BLE Mesh support.
- Host communication: UART for integration with a host MCU or an appropriately matched control system.
- UI development: Arduino, ESP-IDF and LVGL support for circular menus, visual feedback and interface evaluation.
- Compact OEM integration: Ø50 mm outline, with housing, appearance and interface options evaluated for each project.
Integration Advantages
Combining the display, controller and tactile input in one module simplifies component integration. Onboard wireless connectivity supports connected controls, while familiar development tools help teams evaluate and adapt the UI. Housing and interface customization can be reviewed alongside the target product design.

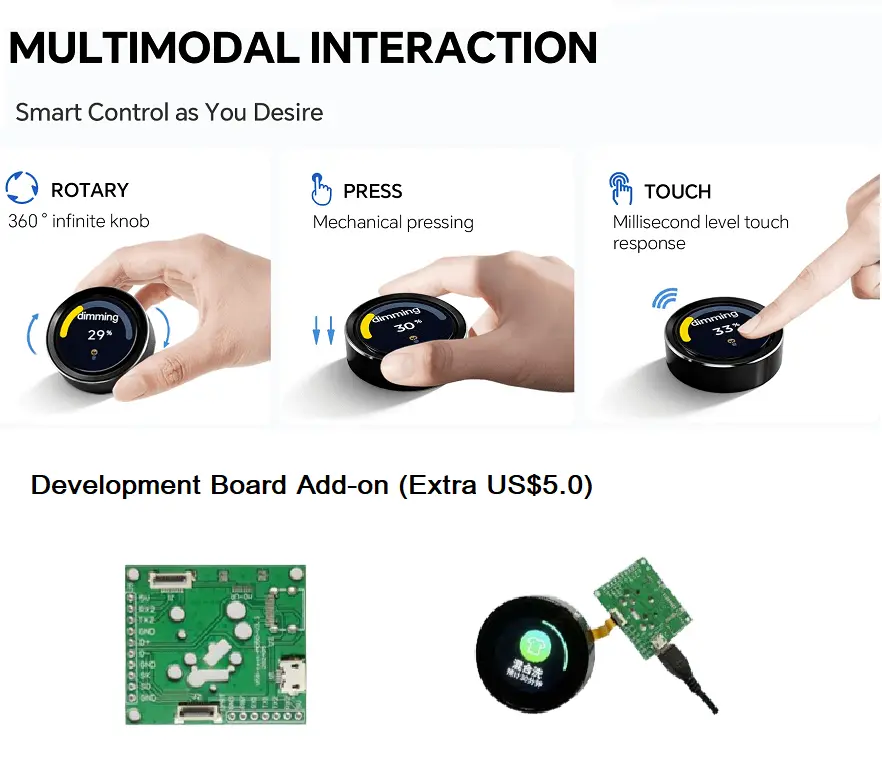

Rotary & Press Interaction
Rotate to browse menus or adjust volume, temperature and dimming levels; press to confirm a selection. Tactile input combines with on-screen status for an intuitive control interface.
The image illustrates interaction options across the range. Touch is an optional variant; this ESP32-C3 module is supplied without touch.

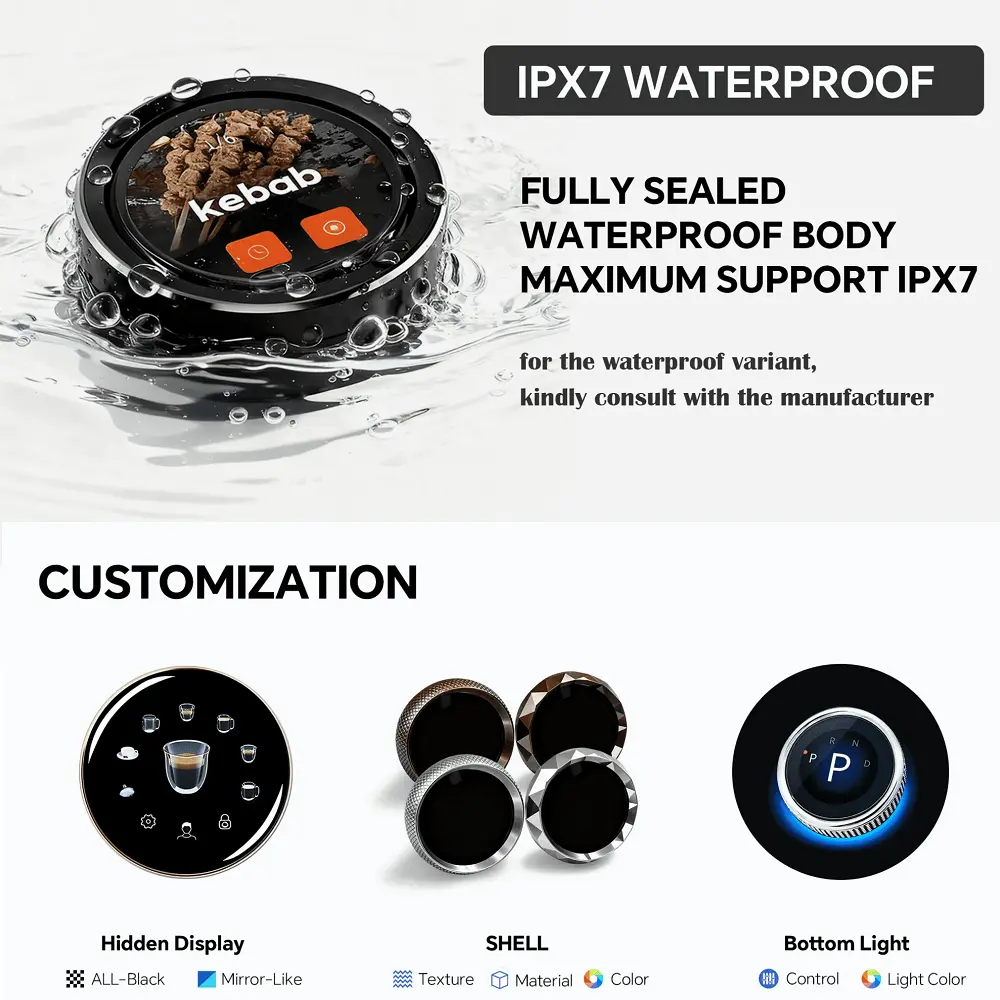

Protection & Appearance Options
Review sealed housing, all-black or mirror-like display appearance, shell texture, material and color, plus optional bottom lighting to match your product design.
The illustrated IPX7 capability applies to a separate waterproof variant. Sealing, touch, lighting and protection rating must be confirmed for the selected configuration.
Application Scenarios
Suitable for smart home controls, audio volume interfaces, ovens and air-conditioner panels, smart lighting, industrial parameter controls and compact IoT devices.
Match the UI, host connection, mounting and enclosure to the application. The illustrated products are integration examples for OEM evaluation.
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
2 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
