Product Overview
NoseDisplay ND016HMK400400-A01 is a 1.6-inch 400×400 round TFT LCD smart display module with integrated rotary and press control for compact embedded HMI, appliances, audio controls and connected devices. ARM Cortex-M3, 96 MHz provides UI processing, while UART communication supports host integration. Wi-Fi / BLE / Bluetooth supports connected applications. The encoder provides 24 pulses and a mechanical push switch. Confirm UI development resources for the selected configuration. NoseDisplay supports OEM housing, interface and UI customization for project evaluation.
NoseDisplay ND016HMK400400-A01 combines a 1.6-inch 400×400 TFT LCD screen with rotary and press control, ARM Cortex-M3, 96 MHz, UART and Wi-Fi / BLE / Bluetooth. Housing, interface and UI options support OEM evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND016HMK400400-A01 |
| Display Size | 1.6 Inch |
| Resolution | 400×400 pixels |
| Display Type | TFT LCD |
| Display Mode | IPS TFT |
| Touchscreen | None |
| Outline Dimensions | Ø 59 mm |
| Active Area | Ø 39.80 mm |
| Luminance | 300 nits |
| Available Colors | Black / White / Gold |
| Parameter | Specification |
| MCU (IC) | ARM Cortex-M3, 96 MHz |
| Platform | RTOS |
| Memory | 2M(RAM) + 16M(Flash) |
| Operating Current | 150 mA |
| Wireless | Wi-Fi / BLE / Bluetooth |
| Supply Voltage | 5 V |
| Display Interface | UART |
| Weight | 125 ± 5 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

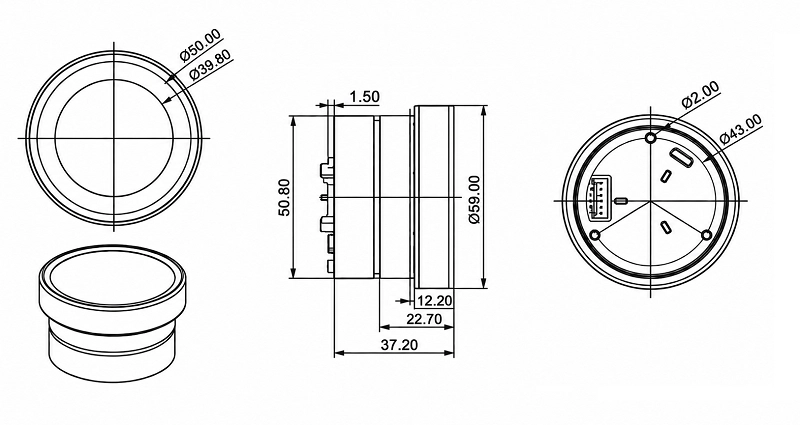

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | TX1 | UART1 transmit |
| 2 | RX1 | UART1 receive |
| 3 | TX2 | UART2 transmit |
| 4 | RX2 | UART2 receive |
| 5 | GND | Ground |
| 6 | VCC | Power supply, 5 V |
Rotary Knob Features & Design Options
An integrated rotary knob display combines a circular screen, tactile controls and wireless connectivity for compact HMI and connected products. Explore the supplied module features, application scenarios and project-specific design options below.
Integrated Display & Control
Supplied configuration: 1.6-inch TFT LCD display + ARM Cortex-M3, 96 MHz control board + rotary knob and housing. Rotary and press input; no touch in this version.
- Display & input: 400×400 circular color screen, 300 nits, rotary navigation and mechanical press confirmation.
- Controller & wireless: ARM Cortex-M3, 96 MHz, Wi-Fi / BLE / Bluetooth connectivity.
- Host communication: UART for integration with a host MCU or appropriately matched control system.
- UI development: Confirm the development environment and UI resources for the selected configuration.
- Compact OEM integration: Ø 59 mm outline, with housing, appearance and interface options evaluated for each project.
Integration Advantages
Combining the display, controller and tactile input in one module simplifies component integration. Onboard wireless connectivity supports connected controls, while familiar development tools help teams evaluate and adapt the UI. Housing and interface customization can be reviewed alongside the target product design.
Rotary & Press Interaction
Rotate to browse menus or adjust volume, temperature and dimming levels; press to confirm a selection. Tactile input combines with on-screen status for an intuitive control interface.
The image illustrates interaction options across the range. Touch is an optional variant; this ND016HMK400400-A01 module is supplied without touch.
Protection & Appearance Options
Review sealed housing, all-black or mirror-like display appearance, shell texture, material and color, plus optional bottom lighting to match your product design.
The illustrated IPX7 capability applies to a separate waterproof variant. Sealing, touch, lighting and protection rating must be confirmed for the selected configuration.
Application Scenarios
Suitable for smart home controls, audio volume interfaces, ovens and air-conditioner panels, smart lighting, industrial parameter controls and compact IoT devices.
Match the UI, host connection, mounting and enclosure to the application. The illustrated products are integration examples for OEM evaluation.
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
2 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
