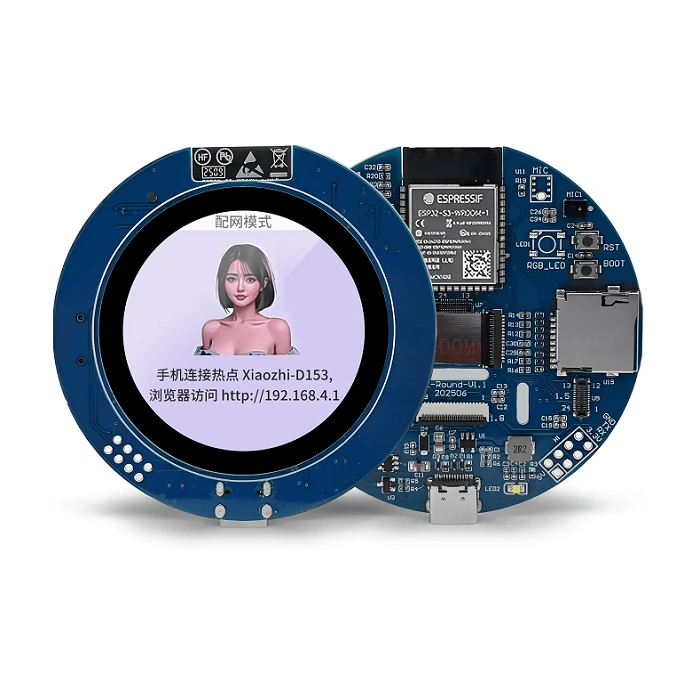

Product Overview
NoseDisplay ND018ESD466466-B01 is a round AMOLED touch display development kit for embedded HMI prototypes, smart home controllers, wearable device evaluation and interactive IoT products, including robotics interfaces, portable instruments, wearable prototypes and intelligent appliances. Its ESP32-S3 platform supports Arduino, ESP-IDF and LVGL development for circular menus, animated graphics, status dashboards and touch-driven interfaces. Integrated Wi-Fi and Bluetooth connectivity enable connected control and data exchange, while UART and USB simplify host communication and firmware evaluation. Expansion interfaces support audio, sensors and peripheral integration for voice assistant prototypes, desktop companions and compact monitoring terminals. OEM teams can evaluate display driving, application firmware and mechanical integration before adapting the module to their product design.
NoseDisplay ND018ESD466466-B01 combines a round AMOLED touch screen and ESP32-S3 development board for embedded HMI, smart home controls and IoT prototypes. Arduino, ESP-IDF and LVGL support circular menus, status dashboards and animated graphics. Wi-Fi, Bluetooth, UART and USB enable connected interface evaluation, while expansion interfaces support sensors and audio peripherals. OEM teams can assess firmware, touch interaction and mechanical integration for their application, including robotics interfaces, portable instruments, wearable prototypes and intelligent appliances.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND018ESD466466-B01 |
| Display Size | 1.75 Inch |
| Resolution | 466×466 pixels |
| Display Type | AMOLED |
| Display IC | CO5300AF-42 |
| Touchscreen | Capacitive touch |
| Touch IC | CST9217 |

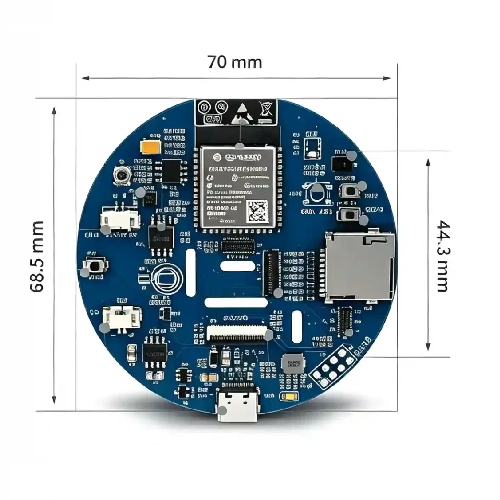

| Outline Dimensions | 70 × 68.5 mm |
| Active Area | Ø 43.76 mm |
| Luminance | 700 nits |
| Parameter | Specification |
| MCU (IC) | ESP32-S3-N16R8, 240 MHz dual-core |
| Platform | RTOS |
| Memory | 520 KB SRAM + 8 MB PSRAM + 16 MB Flash |
| Operating Current | 150 mA |
| Wireless | 2.4 GHz Wi-Fi, BLE 5 / BLE Mesh |
| Supply Voltage | 5 V |
| Display Interface | UART / USB |
| Weight | 50 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |
ESP32-S3 Development & Application Support
This integrated AMOLED touch display and ESP32-S3 board supports graphical interface development, connected HMI controls and AI voice interaction prototypes.
Arduino IDE & ESP-IDF
Use familiar Arduino libraries and community resources for rapid prototyping, or ESP-IDF APIs and RTOS integration for ESP32 application development.
LVGL Interface Development
Create circular menus, touch controls, animated indicators and status screens. SDKs, example code, tutorials and model-specific documentation support firmware evaluation.
HMI & Connected Controls
Develop graphical interfaces for device control, settings and information exchange in smart home panels, compact instruments and connected IoT products.
AI Voice Interaction
Explore voice conversation and assistant interfaces using application firmware and services such as OpenAI, Gemini or Xiaozhi.

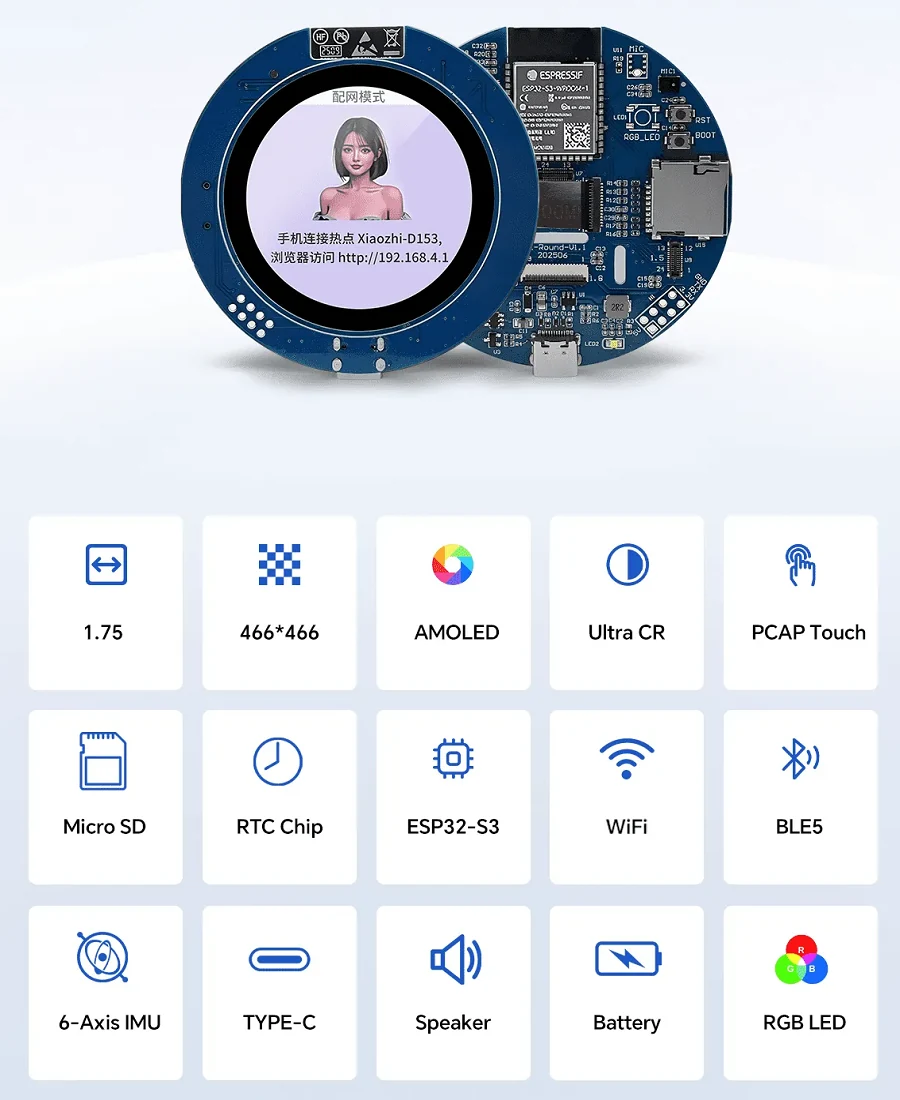

Integrated Hardware & Custom Development
The module integrates an ESP32-S3-N16R8 main controller, touchscreen control, an I2S digital microphone, an I2S digital-to-analog converter (DAC), a TF card interface and an IMU sensor, with support for custom firmware and secondary development.

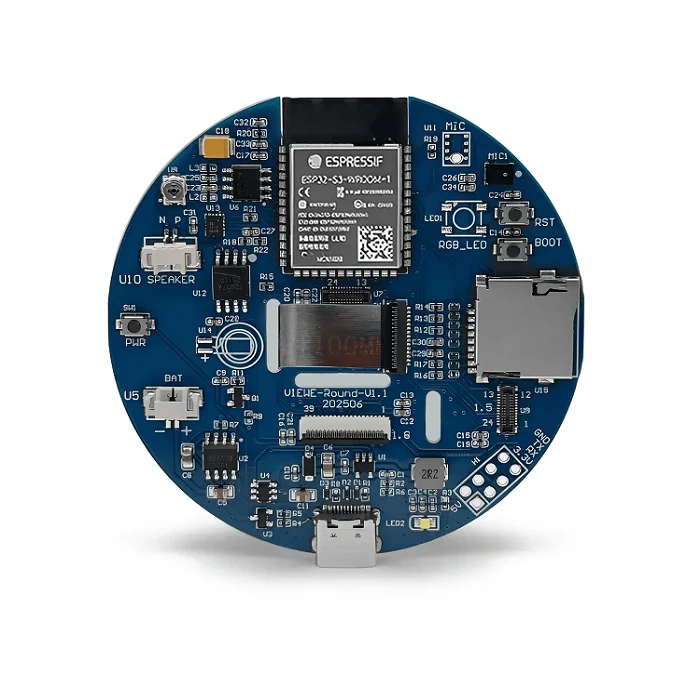

Product Hardware Description

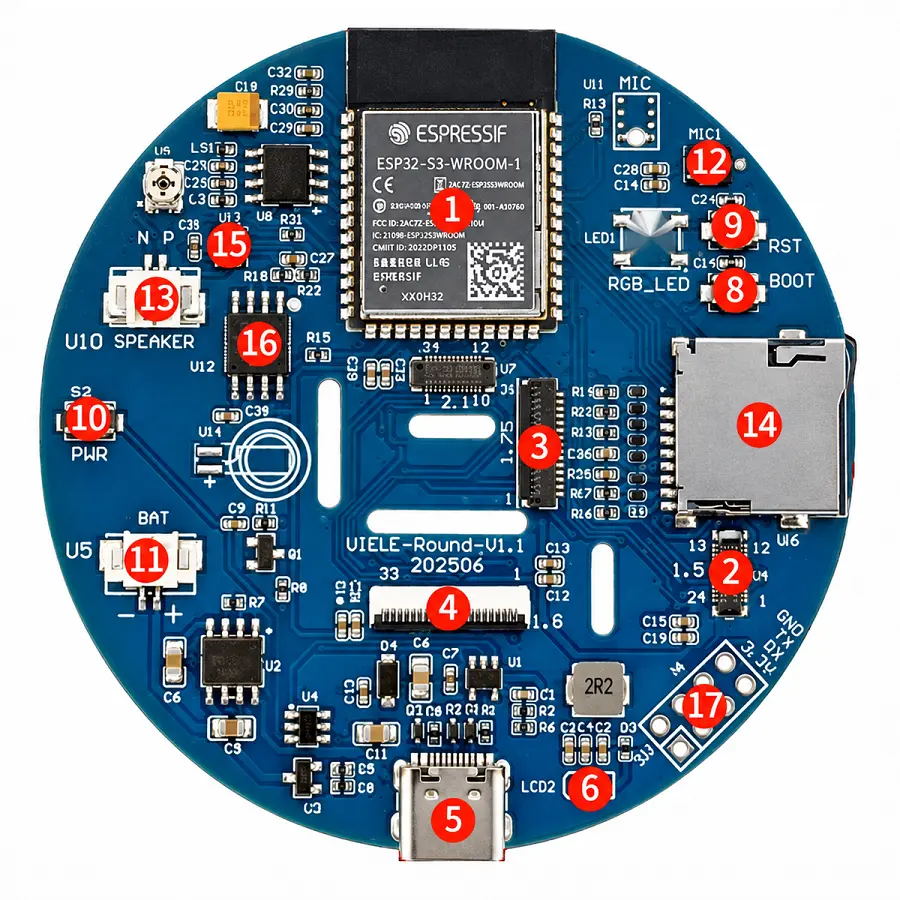

| No. | Hardware | Description |
|---|---|---|
| 1 | ESP32-S3-N16R8 | Main controller; 2.4 GHz Wi-Fi, Bluetooth 5. |
| 2 | 1.5-inch QSPI display interface | QSPI connector for a 1.5-inch display. |
| 3 | 1.75-inch QSPI display interface | QSPI connector for a 1.75-inch display. |
| 4 | 1.85-inch QSPI display interface | QSPI connector for a 1.85-inch display. |
| 5 | USB Type-C interface | Power, programming and debugging. |
| 6 | USER LED | Power indicator. |
| 8 | BOOT button | Hold at startup/reset for download mode. |
| 9 | RST (RESET) button | Resets the ESP32-S3 controller. |
| 10 | PWR (Power) button | Board power control. |
| 11 | RTC battery socket | Rechargeable RTC batteries only. |
| 12 | SMD microphone | I2S digital microphone for audio input. |
| 13 | Speaker interface | MX1.25 2-pin; 8 Ω / 2 W speaker. |
| 14 | TF card slot | MicroSD card storage interface. |
| 15 | Six-axis IMU sensor | Acceleration and angular-rate sensing. |
| 16 | RTC real-time clock | Real-time clock for timekeeping. |
| 17 | GPIO | GPIO expansion for external peripherals. |

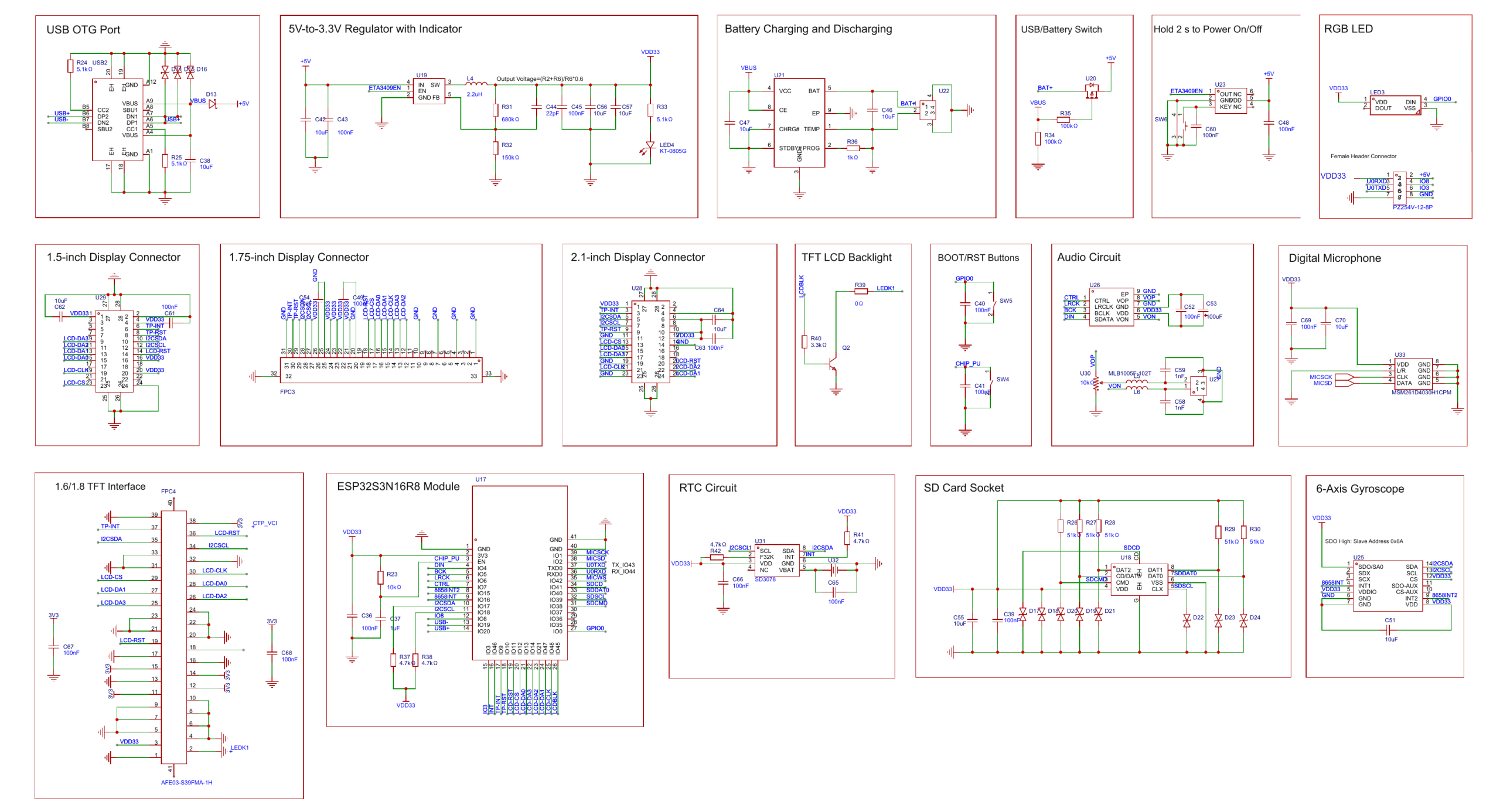

PCB Circuit Schematic
