1.69 Inch ePaper Display Overview

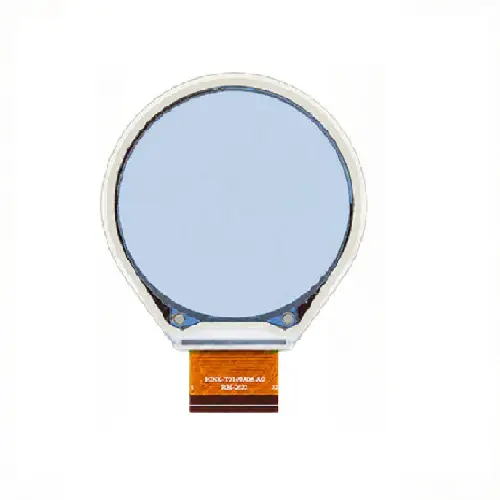

The ND017EPN400400-B01 is a 1.69-inch six-color round E Ink ePaper display with 400 × 400 resolution, an IST7601CA0 controller and a 32-pin FPC. Its reflective circular viewing area supports compact visual indicators and illustrated information. Hardware integration should account for the connector assignments, SPI signaling, drive voltages, power sequencing and waveform requirements before prototype wiring is finalized.

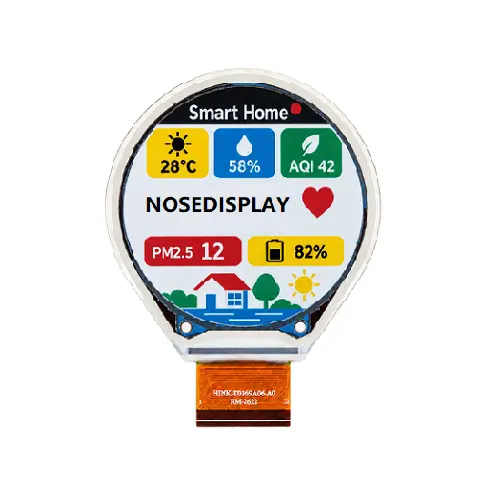

Smart-home status indicators, electronic badges and equipment labels can combine symbols and short text within the round image area. For ESP32 or STM32 nodes and Raspberry Pi evaluation hosts, NoseDisplay can assess driver circuitry and firmware adaptation. OEM reviews may include circular cover-lens alignment, enclosure clearances and FPC routing, with refresh behavior and battery-system power budgets verified for each configuration.
The ND017EPN400400-B01 is a 1.69-inch six-color round E Ink ePaper display with 400 × 400 resolution, IST7601CA0 control and a 32-pin SPI FPC. Its reflective viewing area suits illustrated badges, home-status indicators and compact equipment labels. ESP32, STM32 or Raspberry Pi designs require matched driver circuitry, initialization and verified waveforms. NoseDisplay can review circular cover-lens alignment, FPC routing and enclosure clearances during OEM evaluation.
Technical Specifications

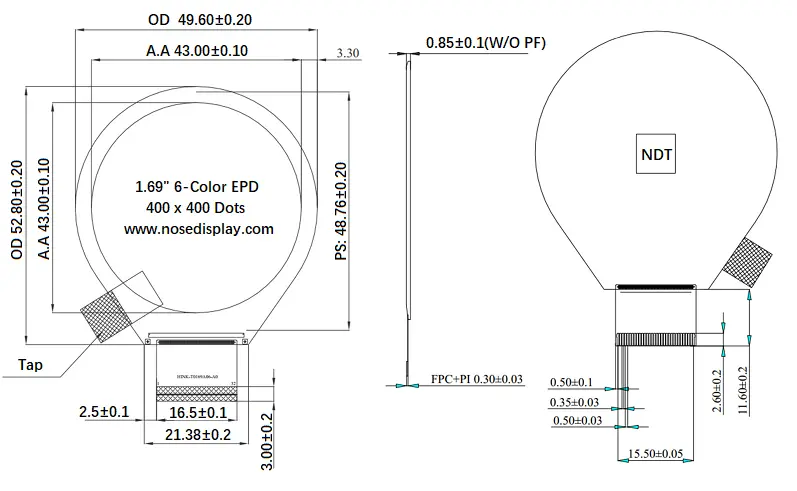

Mechanical Drawing & Interface Definition
Model: ND017EPN400400-B01
PIN Description
FPC connector is used for the module electronics interface.
| NO. | Symbol | Function |
|---|---|---|
| 1 | VREFR | Digital power |
| 2 | GDR | N-MOS gate control, for booster circuit output. |
| 3 | RESE | Current sense input for control loop |
| 4 | VDDL | Digital power |
| 5 | VSH2/VSPL1 | Positive source driver voltage |
| 6 | VREFL | Digital power |
| 7 | AVDDN | Charge Pump voltage |
| 8 | BS0 | Bus Selection. Select 3-wire / 4-wire SPI interface. L: 4-wire interface. H: 3-wire interface. |
| 9 | BUSY | Driver busy flag. L: Driver is busy. H: Host side can send command/data to driver. |
| 10 | RST_N | Global reset pin |
| 11 | DC | Serial communication Command/Data input |
| 12 | CSB | Serial communication chip select. |
| 13 | SCL | Serial communication clock input |
| 14 | SDA | Serial communication data input/output |
| 15 | VDD | Digital power |
| 16 | VSH3/VSPL2 | Positive source driver voltage |
| 17 | GND | GND |
| 18 | VSL2/VSNL1 | Negative source driver voltage |
| 19 | VSL3/VSNL2 | Negative source driver voltage |
| 20 | VSH1/VSPH | Positive source driver voltage |
| 21 | VGH | Positive Gate driving voltage |
| 22 | VSL1/VSNH | Negative source driver voltage |
| 23 | VGL | Negative Gate voltage. |
| 24 | VCOM | VCOM output |
| 25 | C24M | Digital power |
| 26 | C24P | Digital power |
| 27 | C23M | Digital power |
| 28 | C23P | Digital power |
| 29 | C22M | Digital power |
| 30 | C22P | Digital power |
| 31 | C21M | Digital power |
| 32 | C21P | Digital power |
Sample Ordering & Delivery
Order ND017EPN400400-B01 1.69-inch round ePaper samples for color-layout and IST7601CA0 SPI evaluation. Shipping is charged separately; duties and taxes are excluded. Delivery includes preparation; final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
1.69 Inch ePaper Display Applications

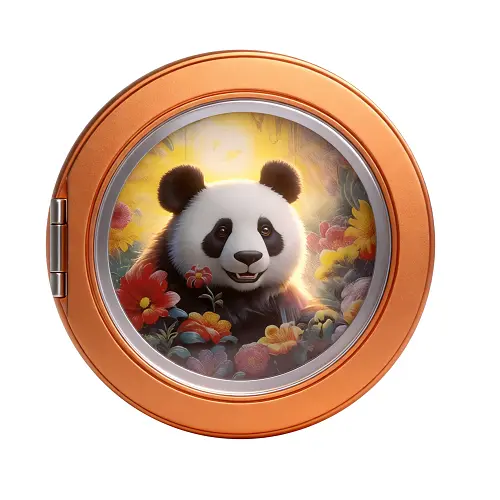

The ND017EPN400400-B01 suits illustrated electronic badges, smart-home status indicators and compact equipment identification. Its round six-color image area can present symbols and short messages in battery-powered IoT designs, subject to driver, refresh and enclosure validation.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels

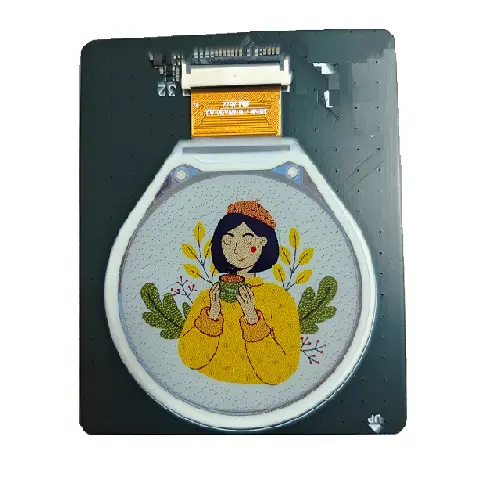

Matching Driver Board
NoseDisplay can review a driver solution for the ND017EPN400400-B01 using its IST7601CA0 controller, SPI interface and 32-pin FPC. The connector mapping and booster connections must be checked against this model rather than a different round module. ESP32, STM32 or Raspberry Pi hosts require suitable drive circuitry, initialization, image formatting and six-color waveform handling. Refresh current and standby system load need evaluation before estimating battery life; board compatibility and package contents remain project-specific.
Customization Options
OEM evaluation for the ND017EPN400400-B01 can cover its 32-pin FPC routing, IST7601CA0 driver circuitry, circular cover-lens alignment and compact badge or indicator enclosures.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
