Product Overview
NoseDisplay ND028TBN142248-A01 is a bar-type IPS TFT display with a PCBA for compact equipment interfaces. Its elongated format suits appliance status panels, handheld instruments and narrow industrial control surfaces. This SPI bar display supports embedded interface development where enclosure space is limited. NoseDisplay can assist with host connections, mechanical integration and project-specific customization.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND028TBN142248-A01 |
| Display Size | 2.8 Inch |
| Resolution | 142×248 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 25.9 × 78 × 6 mm |
| Active Area | 21.28 × 64.14 mm |
| Parameter | Specification |
| Supply Voltage | 3V-5V |
| Luminance | 450cd/m² |
| Display Interface | SPI |
| Connection Type | 8 pin connector |
| IC | NV3007 |
| Weight | — |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

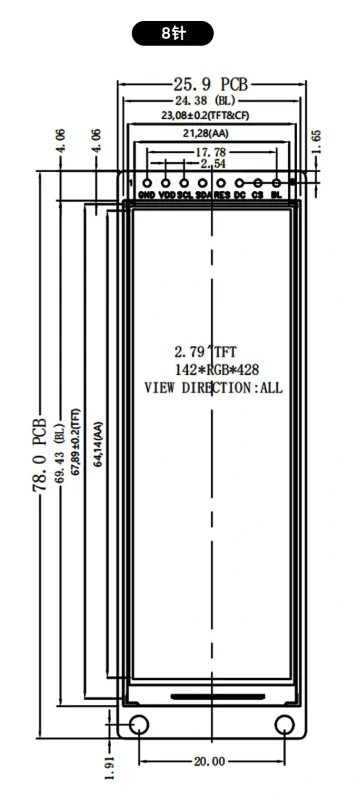

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | VDD | POWER SUPPLY |
| 03 | SCL | Serial Clock |
| 04 | SDA | Serial Data |
| 05 | RES | Reset |
| 06 | DC | Data/Command Select |
| 07 | CS | Chip Select |
| 08 | BL | -- |
