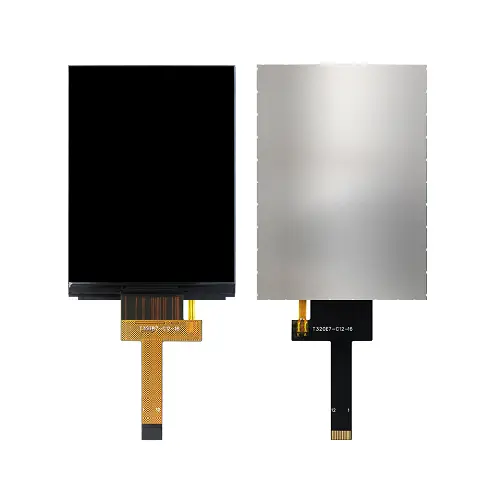

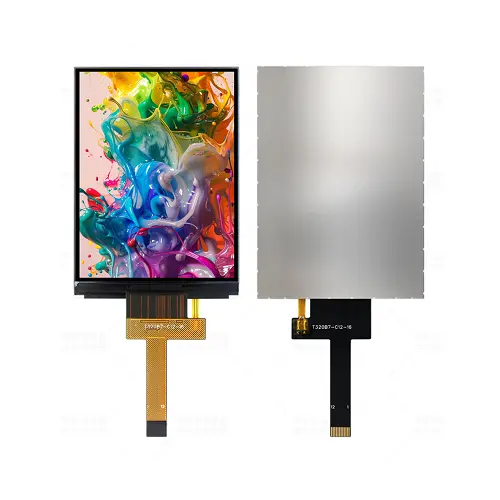

Product Overview
NoseDisplay ND032TSN240320-A01 is an IPS TFT LCD module for compact embedded interfaces in portable instruments, industrial controls and connected equipment. Its SPI interface can be evaluated with microcontroller platforms for menu navigation, graphical feedback and equipment status screens. This small color LCD display suits smart home controllers, IoT terminals, laboratory devices and custom OEM HMI panels where enclosure space and host integration need careful review. Touch options and supporting components are confirmed against the selected project configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND032TSN240320-A01 |
| Display Size | 3.2 inch |
| Resolution | 240×320 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 55 × 77.4 × 3.85 mm |
| Active Area | 48.6 × 64.8 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V-3.3V |
| Luminance | 400 cd/m² |
| Display Interface | SPI |
| Connection Type | 10 pin connector |
| IC | ST7789 |
| Weight | 28±3 g |
| Operating Temperature | -20° ~ +70° |
| Storage Temperature | -30°C ~ +80°C |

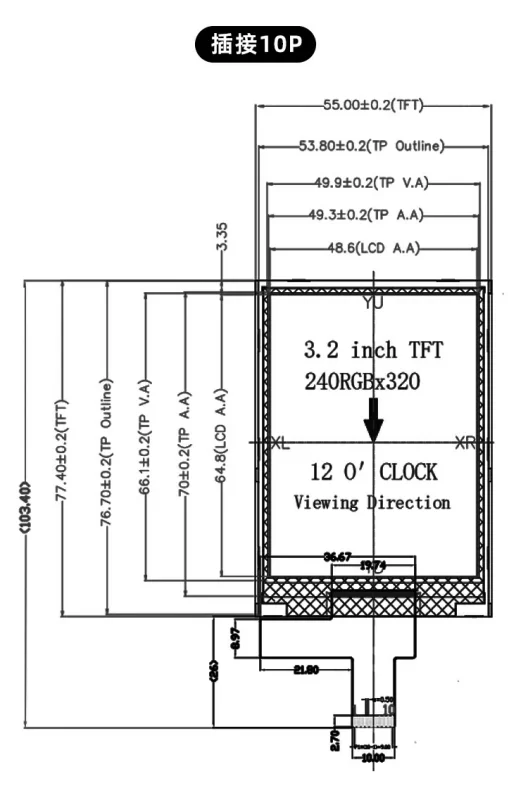

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | RESET | Reset |
| 03 | SCL | SPI Clock |
| 04 | D/C | Data/Command Select |
| 05 | CS | Chip Select |
| 06 | SDA | SPI Data |
| 07 | SDO | Serial Data Output |
| 08 | VCC | POWER SUPPLY |
| 09 | A | Backlight Anode |
| 10 | K | Backlight Cathode |
