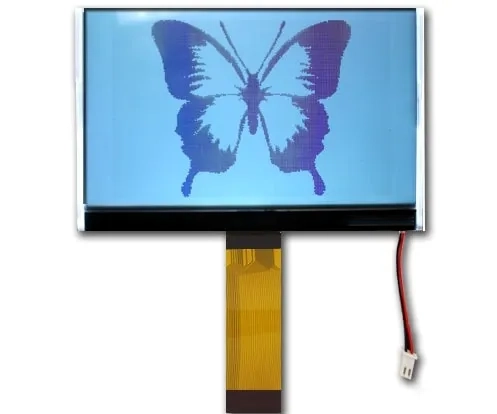

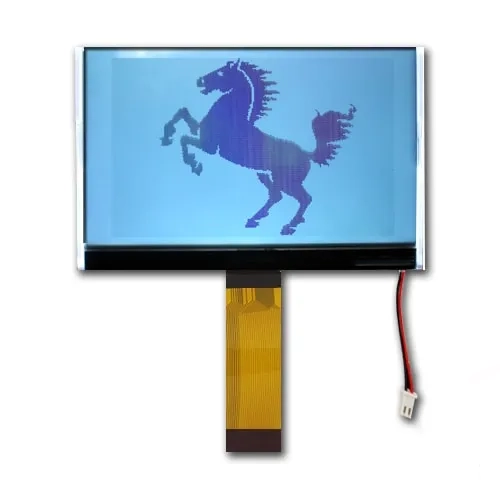

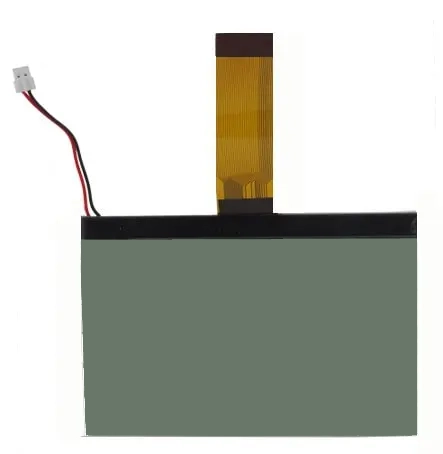

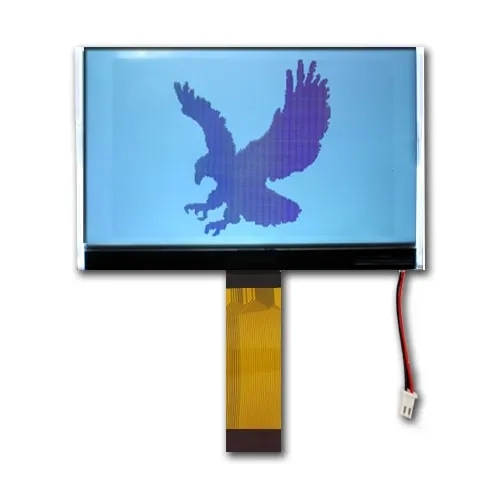

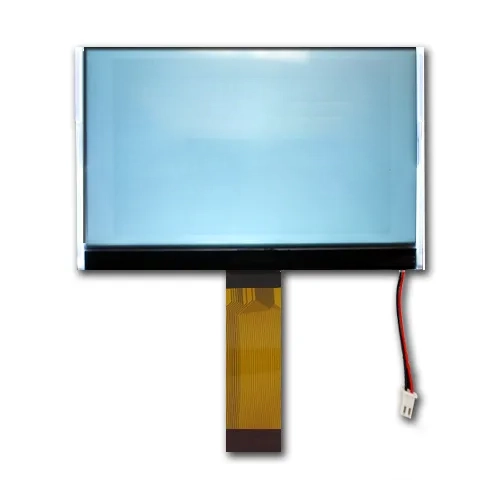

NDTG240160001 | 240×160 LCD Display Arduino LCD 240160 COG Module FSTN White Backlight SPI/Parallel Interface
The NDTG240160001 240×160 Graphic LCD Module is designed for high-performance embedded and industrial applications that demand clear, reliable display output. Built with FSTN+ positive transflective technology, this LCD provides sharp contrast and excellent readability in both indoor and outdoor lighting conditions.
Powered by the UC1698 controller (or equivalent), the module supports SPI and 6800/8080 8-bit parallel interfaces, ensuring flexible integration into various systems. It operates on dual supply voltages (3.3V / 5V) and features a white LED backlight for enhanced visibility.
With a 99.0 × 57.5 mm active area, slim 4.2 mm profile, and 35-pin connector, this 240×160 LCD is compact yet robust. It performs reliably across a wide operating temperature range (-20°C to 70°C), making it suitable for industrial equipment, handheld terminals, measuring instruments, and embedded control systems.
Fully compatible with Arduino, Raspberry Pi, and similar development boards, this module is an ideal choice for developers and engineers who require a durable and flexible graphic LCD solution.
General Specifications
| Part No.: | NDTG240160001 |
| Display Format: | 240 x 160 pixels |
| Display Type: | FSTN+, Positive |
| Display Mode: | Transflective |
| Controller IC: | UC1698 or equivalent |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 105.5 x 67.2 x 4.2mm |
| Active Area: | 99.0 x 57.5mm |
| Supply Voltage: | 5V, 3.3V |
| Backlight: | White |
| Interface: | SPI or 6800/8080 8-bit parallel |
| Connection Type: | 35 pin connector |
| Compatibility: | Arduino, Rasberry Pi and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |

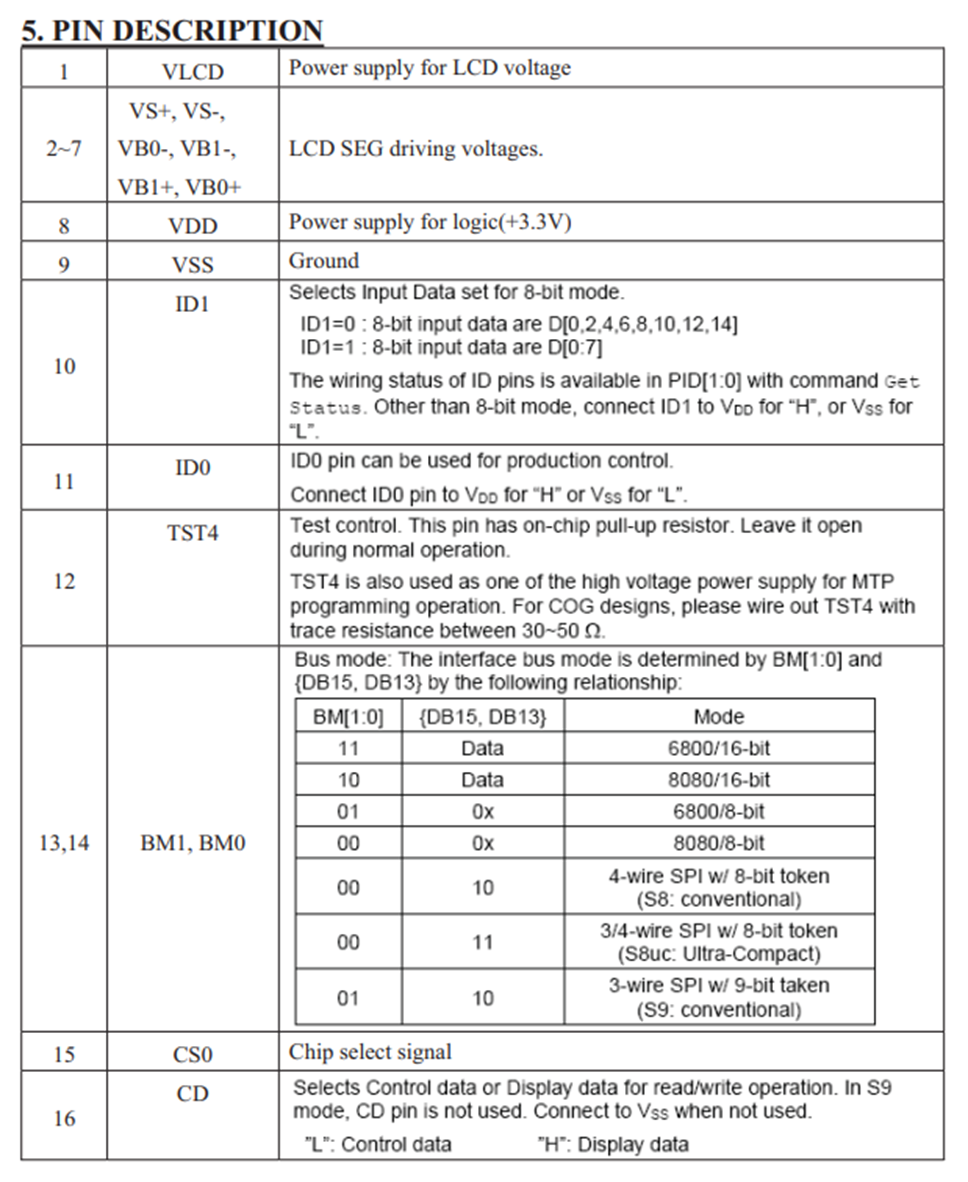

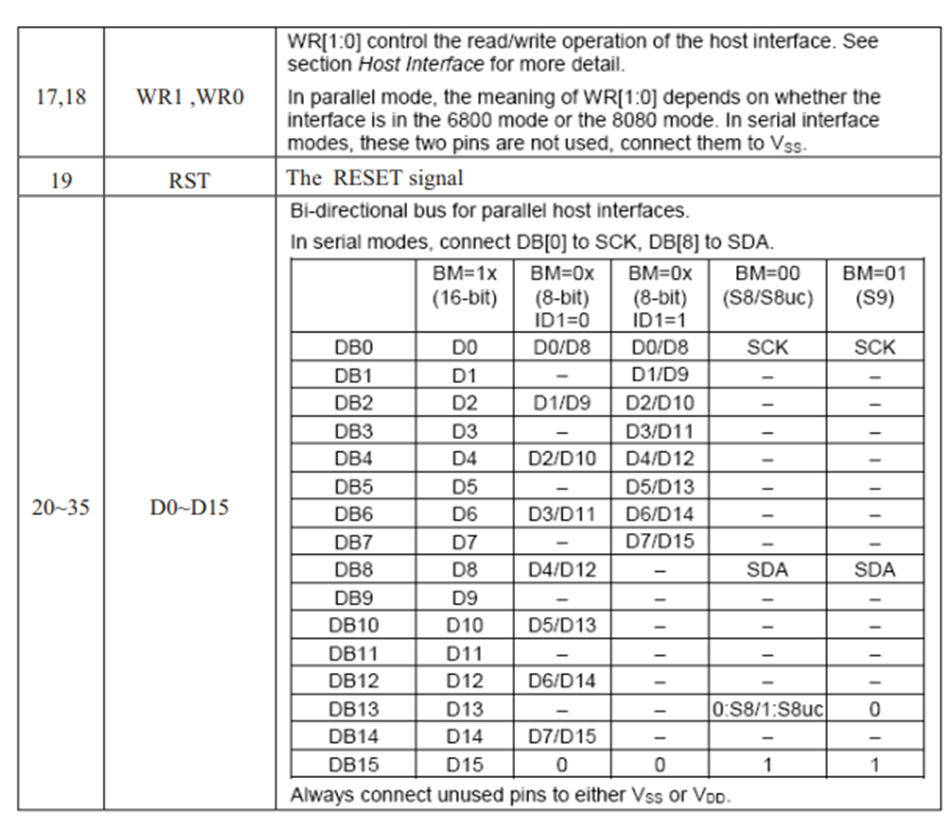

Pin Defenition

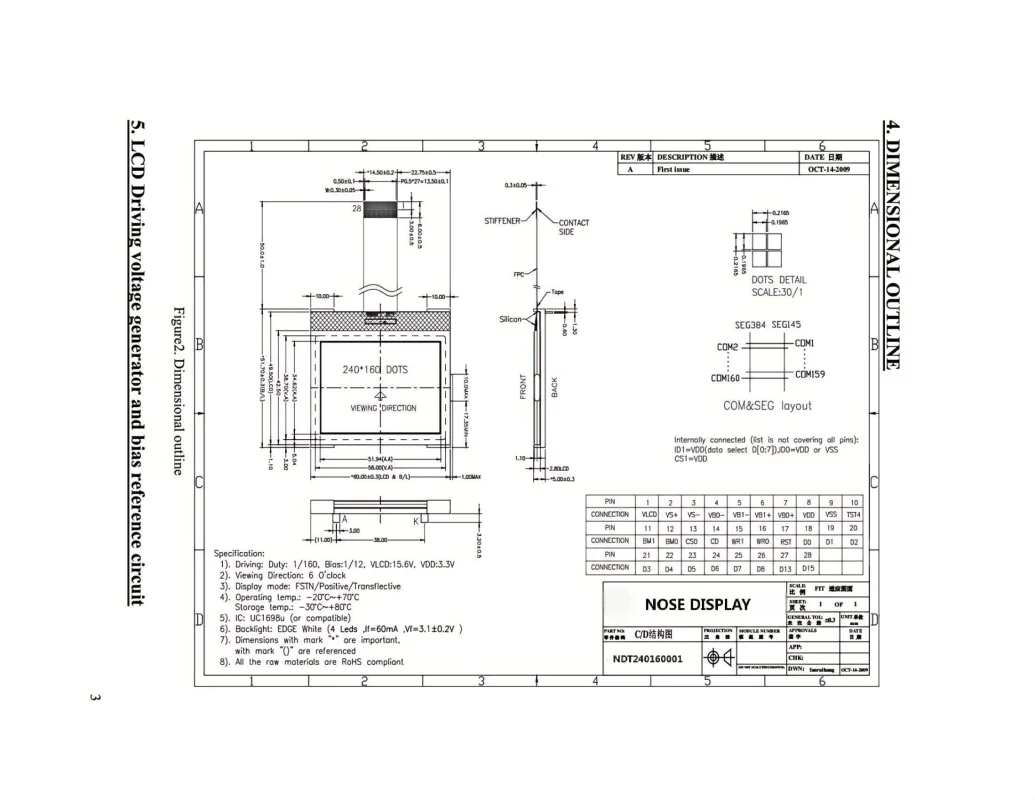

Display Drawing
Custom Graphic Display
We offer full customization ofGraphic display modules, including resolution, brightness, interface, and touch options. Our service covers PCB design, connector modification, and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
Cable Customization
Adjust the length, position, and pinout of your cables, or add extra connectors to ensure secure connections for your 240×160 LCD module, helping to optimize system integration.
Connector Custom
Modify the 35-pin connector or any other connectors to meet your requirements. We can customize pin headers, right-angle headers, and more for perfect compatibility with Arduino, Raspberry Pi, and similar development boards.
Interface Custom
Choose from SPI or 6800/8080 8-bit parallel interfaces, or consult with our experts to determine the best interface for seamless integration and enhanced performance in your application.
Tailored PCB Design
Select from various modifications, including adjustments to shape, size, pinout, and layout, to ensure your 240×160 display fits seamlessly into your specific design and functional needs.
