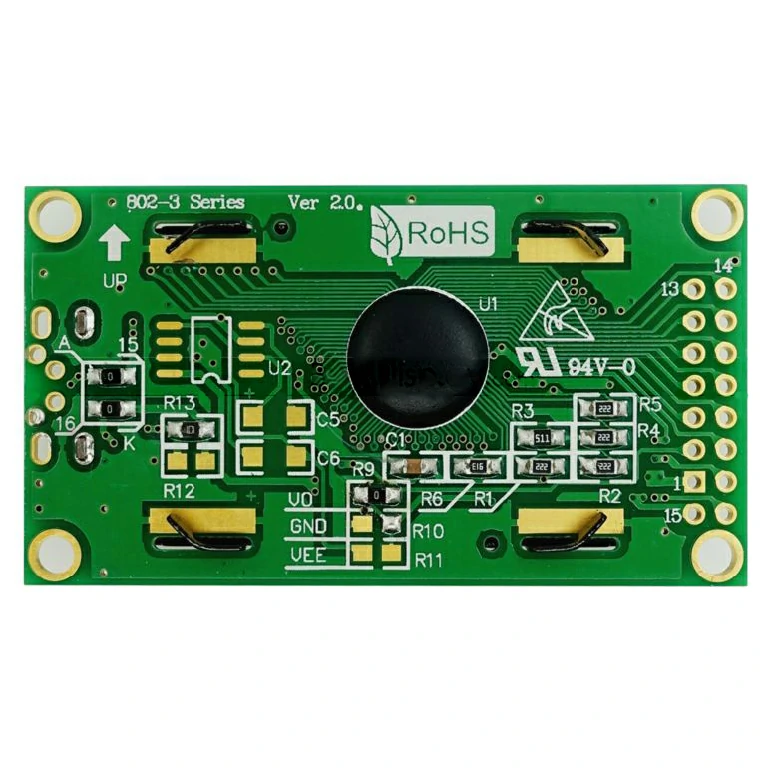

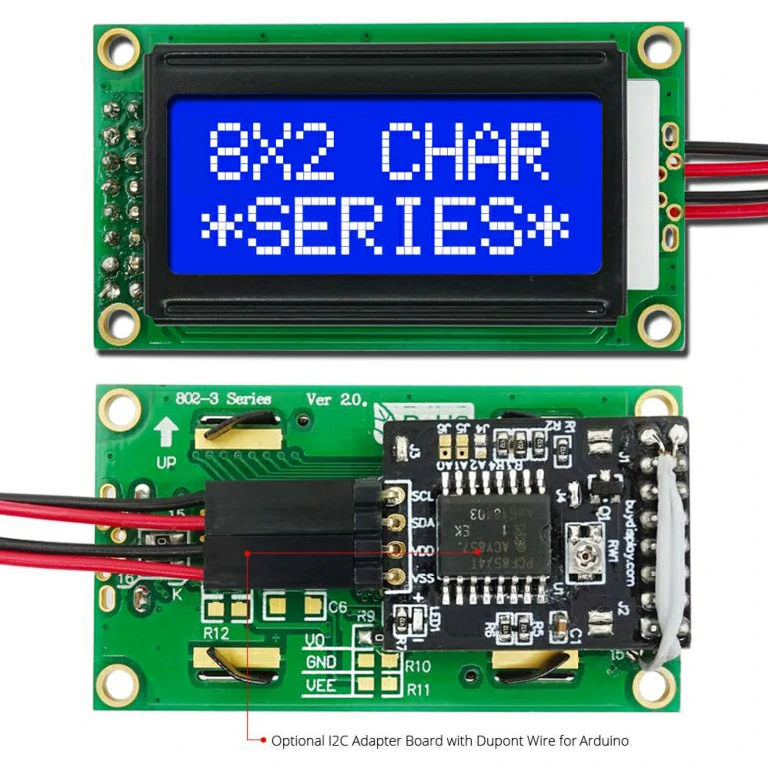

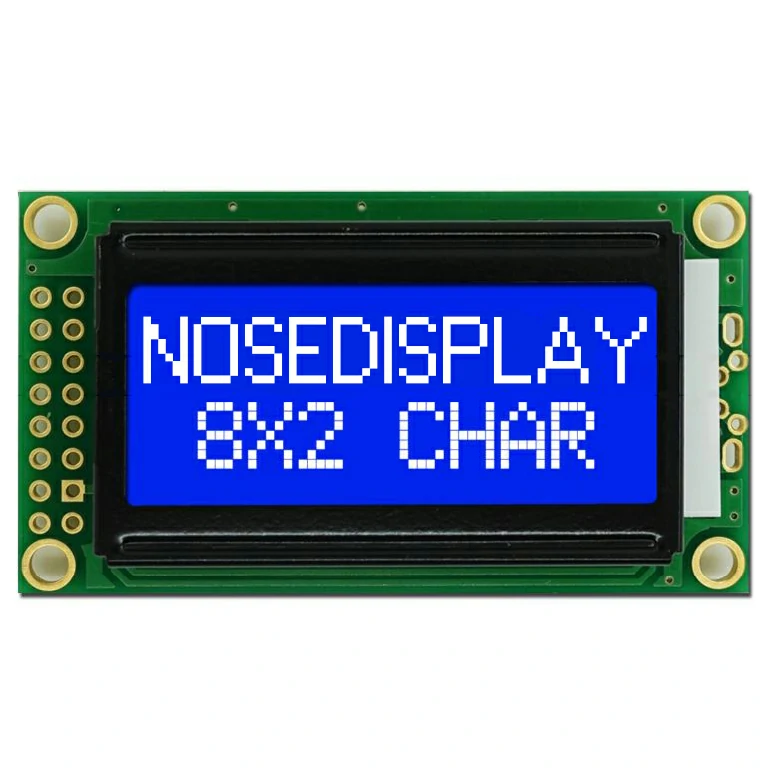

NDTC802002 | Arduino 8x2 Character LCD Display Module STN Blue 16 Pin Connector White Backlight
Bring clarity and reliability to your embedded designs with our 8×2 LCD Display — a compact solution that combines STN-LCD Blue technology and transflective mode for crisp, sharp visibility in any lighting condition. Designed with a standard 6800 4/8-bit parallel interface and 16-pin connection, this 8×2 character LCD is simple to wire and program, making it a go-to choice for both professionals and hobbyists.
With full compatibility for Arduino, Raspberry Pi, ESP32, and similar development boards, this Arduino 8×2 LCD display is ideal for quick prototyping, DIY electronics, and industrial applications. Its wide supply voltage options (3.3V / 5V) make integration flexible, while the white LED backlight ensures easy readability even in dim environments.
The display features a 39.0 × 16.0 mm viewing area within a compact outline of 58.0 × 32.0 × 13.2 mm, providing excellent space efficiency for handheld devices, instruments, and controllers. Supported by industry-standard controllers SPLC780 (or AIP31066, HD44780, KS0066, ST7066), this module ensures broad compatibility and hassle-free development.
Engineered for demanding environments, the module operates reliably between -20°C and 70°C, with storage safety from -30°C to 80°C. Whether you are referencing the 8×2 LCD datasheet, wiring according to the 8×2 LCD pinout, or integrating it into your embedded system, our expert engineers are there to help you make sure this display gives long-term stable performance.
Choose this 8×2 character LCD for projects that require durability, flexibility, and seamless Arduino integration.
Specifications
| Display Format: | 8×2 Characters |
| Display Type: | STN-LCD Blue |
| Display Mode: | Transflective |
| Controller IC: | SPLC780 (or AIP31066 , HD44780, KS0066 , ST7066) |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 58.0(W)x32.0(H)x13.2(T)mm |
| Viewing Area: | 39.00×16.00mm |
| Supply Voltage: | 3.3V, 5V |
| Backlight: | White Color |
| Interface: | 6800 4/8-bit parallel |
| Connection Type: | 16 Pin |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |

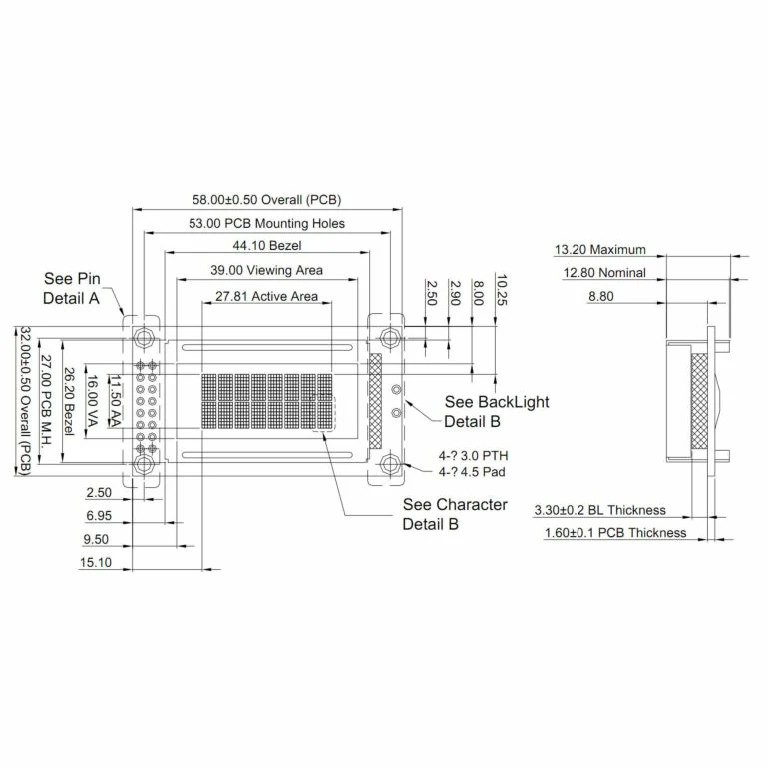

Display Drawing
Custom 8x2 Character Display Solutions
We deliver tailored custom display solutions with flexible sizes, interfaces, and designs, including 8x2 character displays, to perfectly match your product’s application needs.
Cable Customization
Customize the cable length, position, and pinout for a perfect fit with your 8×2 character STN-LCD display. Add connectors or adjust configurations for secure and reliable connections tailored to your application.
Connector Custom
Modify connectors to meet the requirements of your 8×2 character STN-LCD display. Whether it’s pin headers, right-angle headers, or other types, our engineers will ensure optimal compatibility and performance for your design.
Interface Custom
Choose from various interface options like HDMI, USB, SPI, and more, to seamlessly integrate with your 8×2 character LCD display. Our experts will guide you in selecting the best interface for your project’s performance and functionality.
Tailored PCB Design
Tailor the shape, size, pinout, and component layout of your PCB to perfectly match the 8×2 character STN-LCD display. We provide extensive customization options to ensure a flawless integration into your hardware setup.
